Pre-Collision System Wiring Diagram

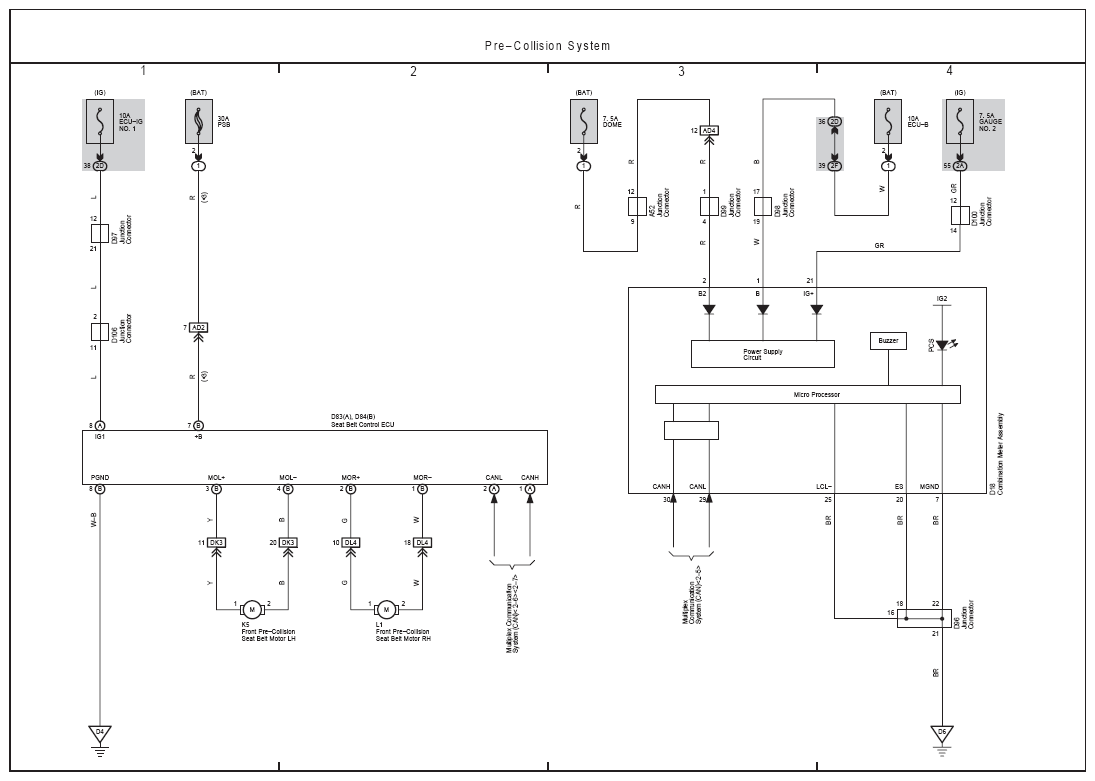

Fig 1: Pre-Collision System Electrical Wiring Diagram

G09112393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
