Power Source Wiring Diagrams

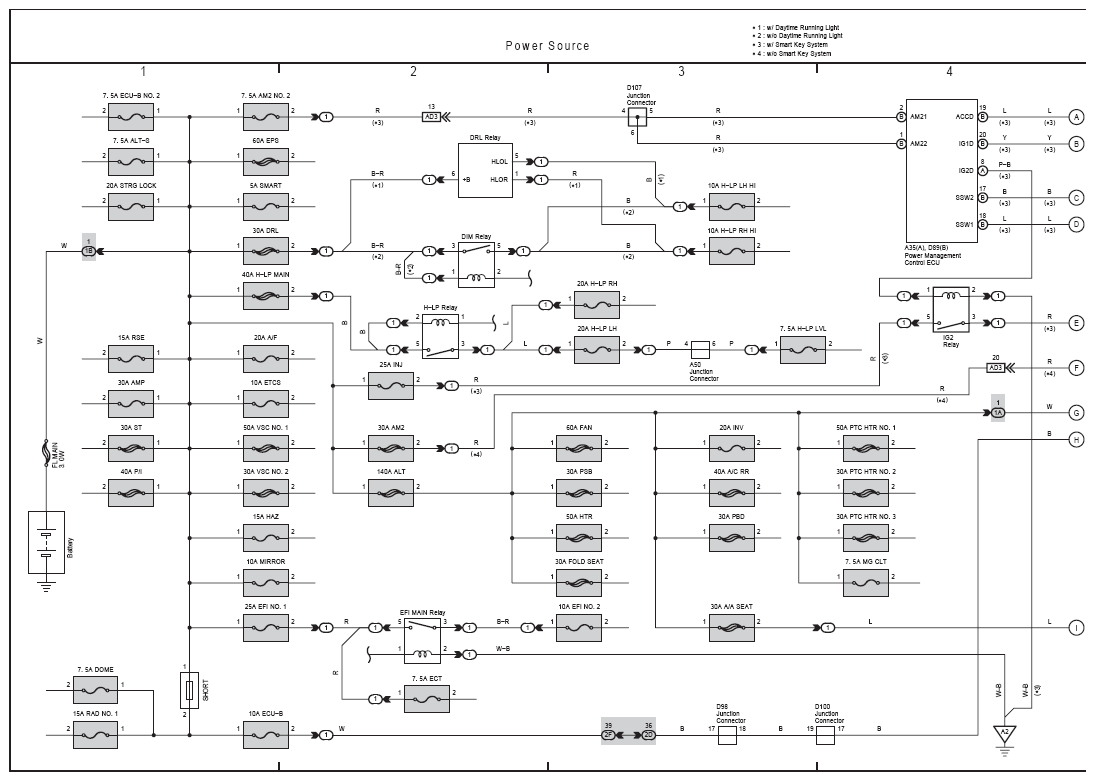

Fig 1: Power Source Electrical Wiring Diagram (1 Of 4)
G09112340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

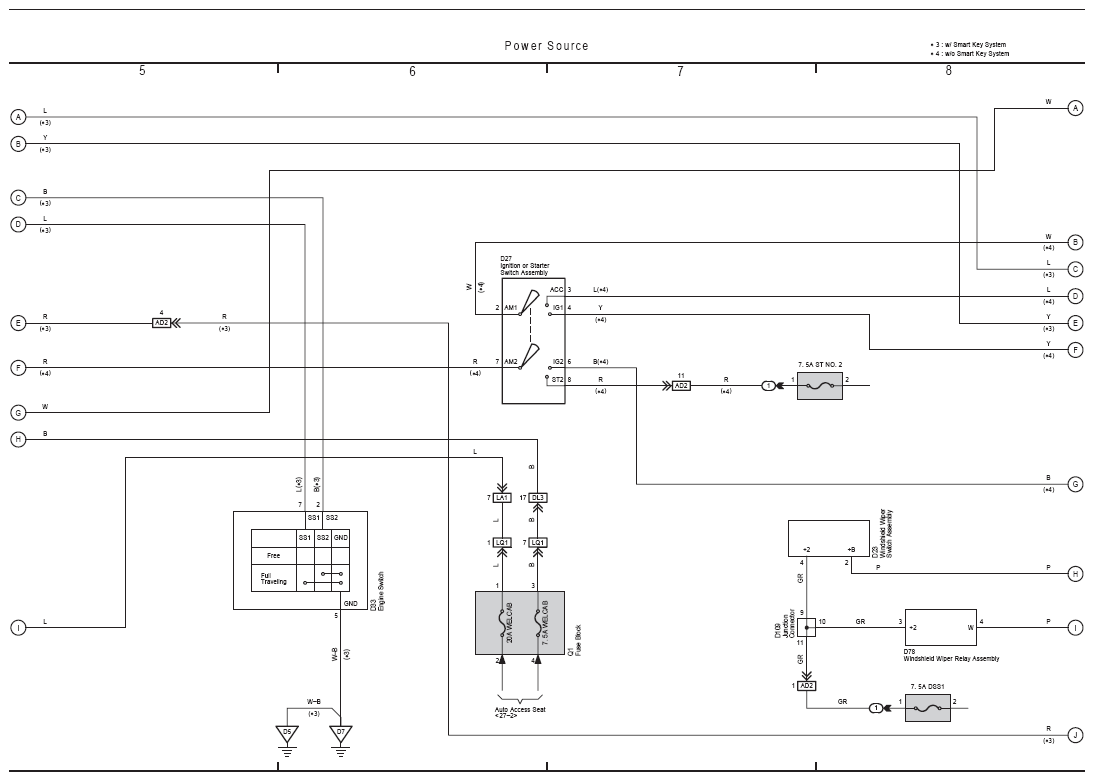

Fig 2: Power Source Electrical Wiring Diagram (2 Of 4)
G09112341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

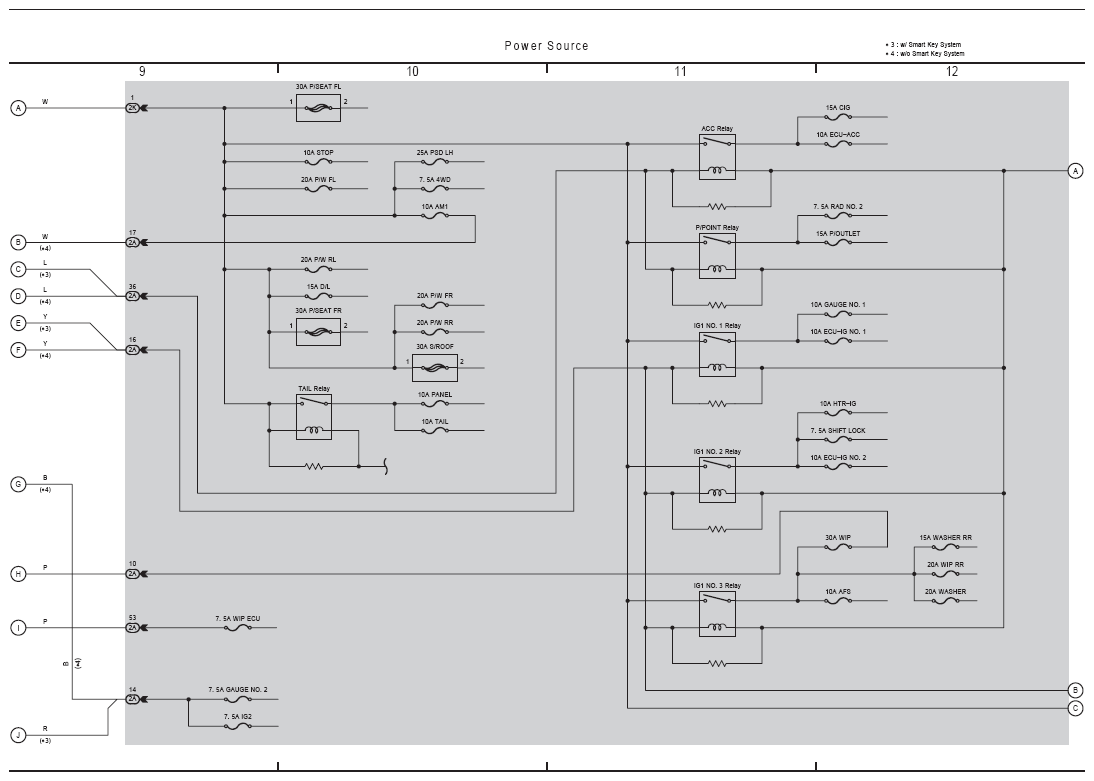

Fig 3: Power Source Electrical Wiring Diagram (3 Of 4)
G09112342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Source Electrical Wiring Diagram (4 Of 4)
G09112343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
