Power Slide Door Wiring Diagrams

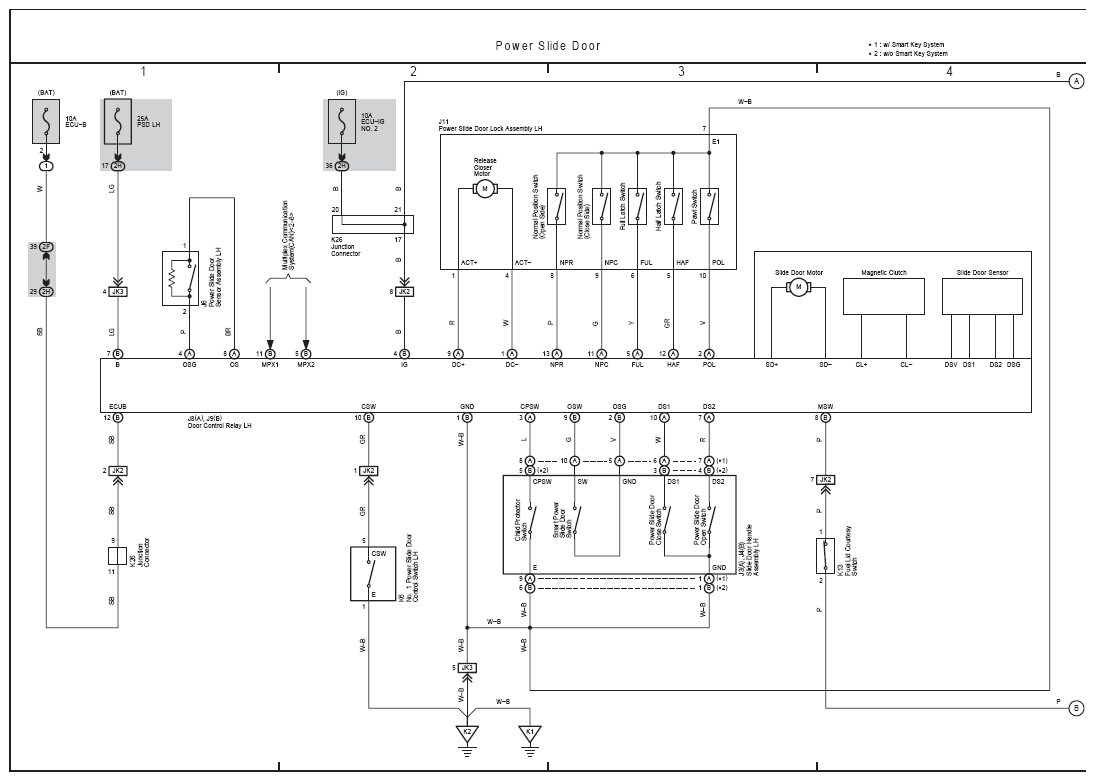

Fig 1: Power Slide Door Electrical Wiring Diagram (1 Of 2)
G09112397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

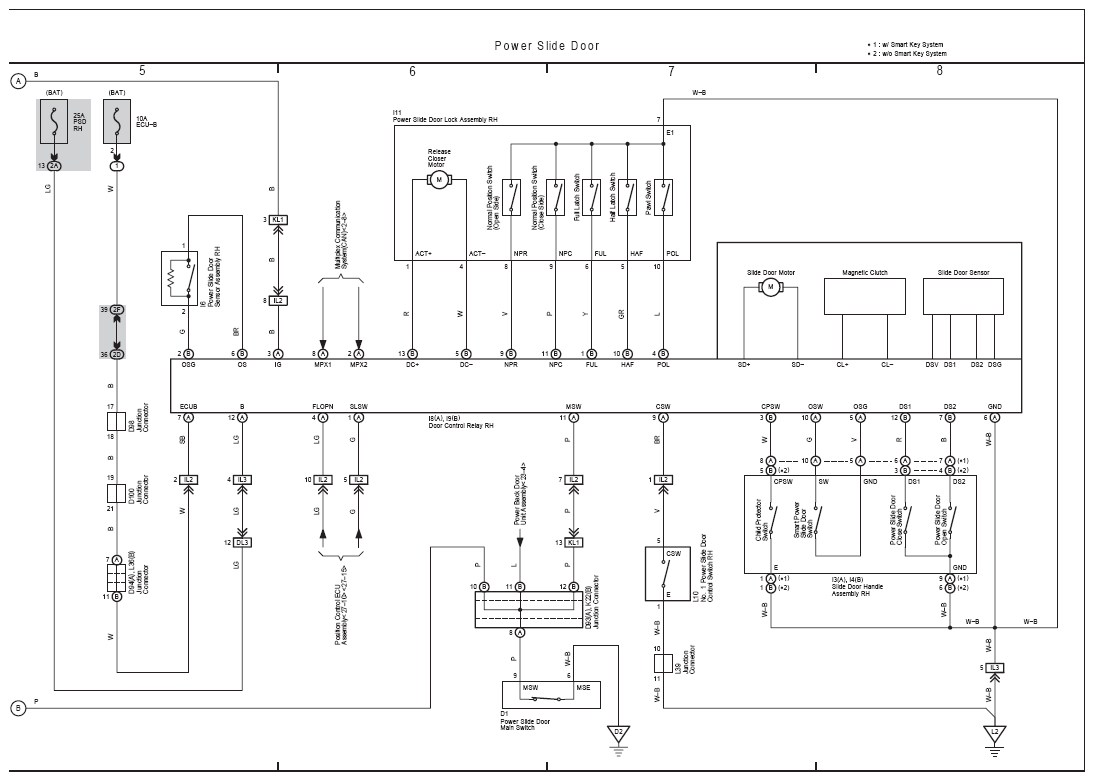

Fig 2: Power Slide Door Electrical Wiring Diagram (1 Of 2)
G09112398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
