Overall Electrical Wiring Diagram
>>
Power Seat (Driver's Seat W/ Seat Position Memory) Wiring Diagram
Power Seat (Driver's Seat W/ Seat Position Memory) Wiring Diagram

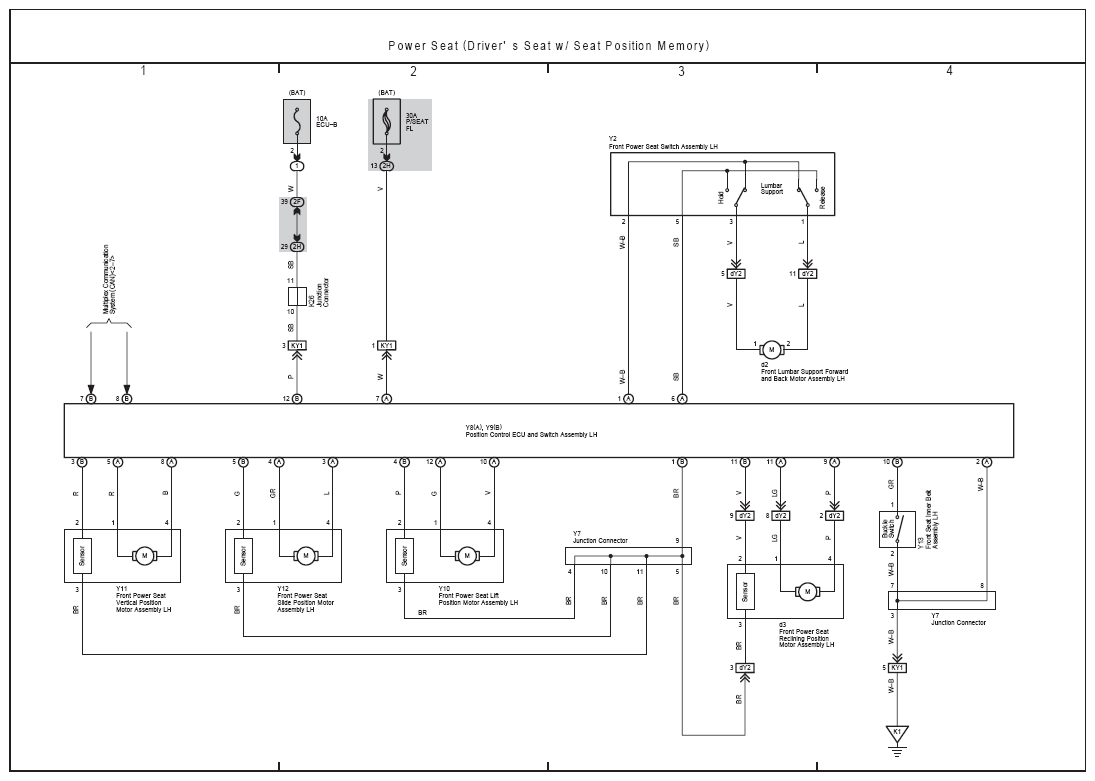

Fig 1: Power Seat (Driver's Seat W/ Seat Position Memory) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
