Overall Electrical Wiring Diagram
>>
Power Outlet (12V) Wiring Diagram
Power Outlet (12V) Wiring Diagram

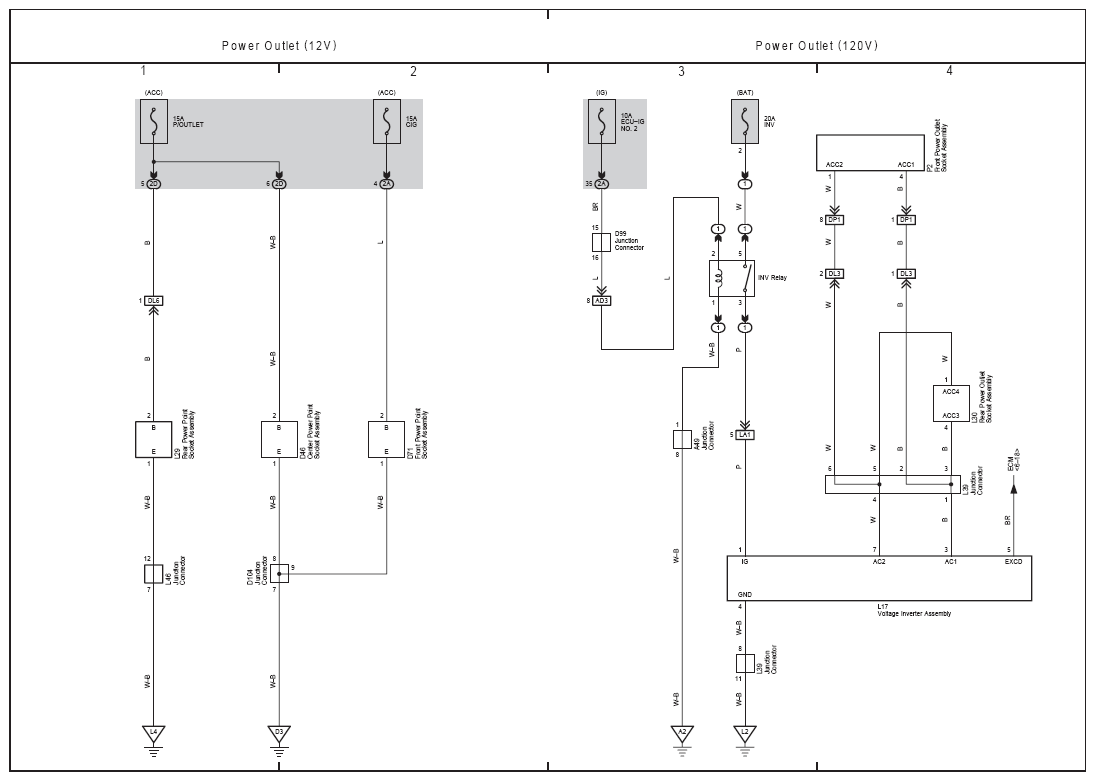

Fig 1: Power Outlet (12V) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
