Parking Assist (Back Guide Monitor) Wiring Diagram

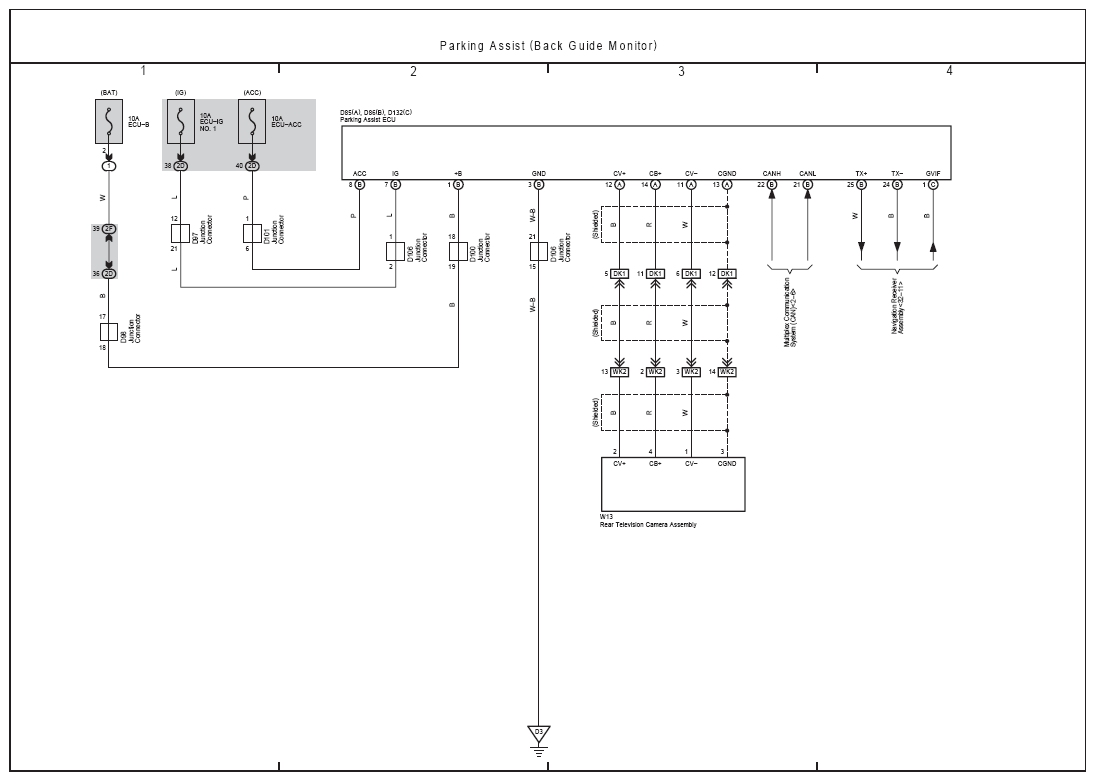

Fig 1: Parking Assist (Back Guide Monitor) Electrical Wiring Diagram

G09112427

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
