Multiplex Communication System Wiring Diagrams

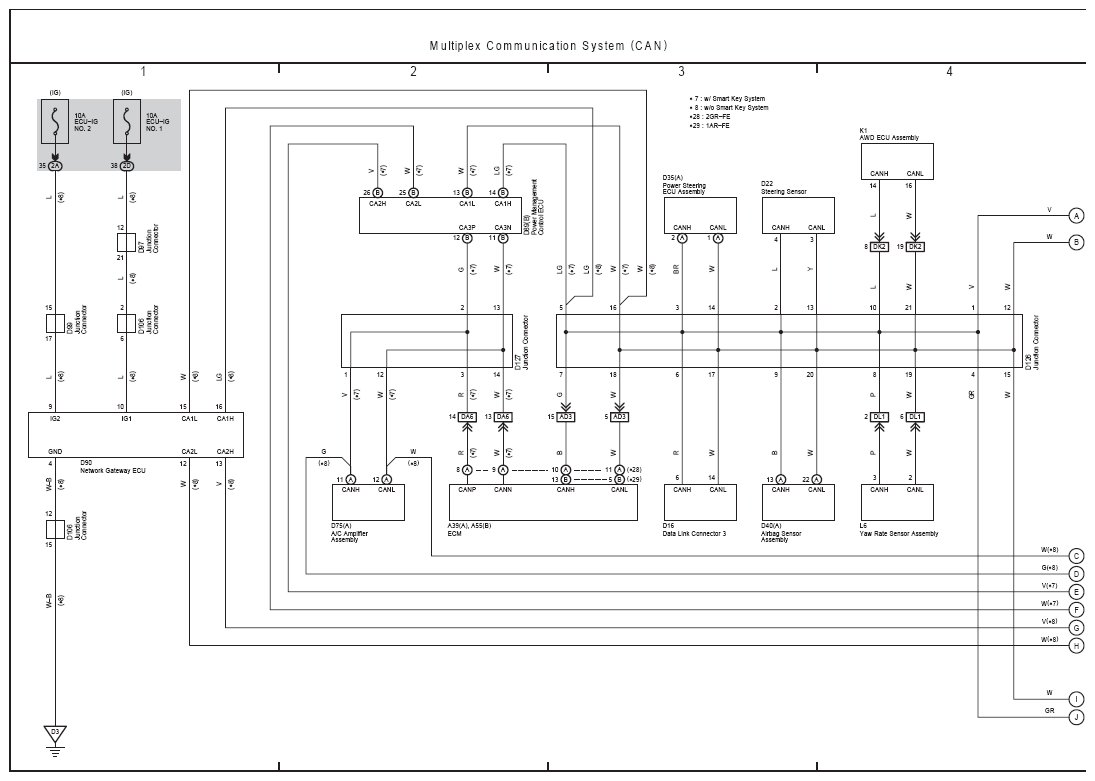

Fig 1: Multiplex Communication System Electrical Wiring Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

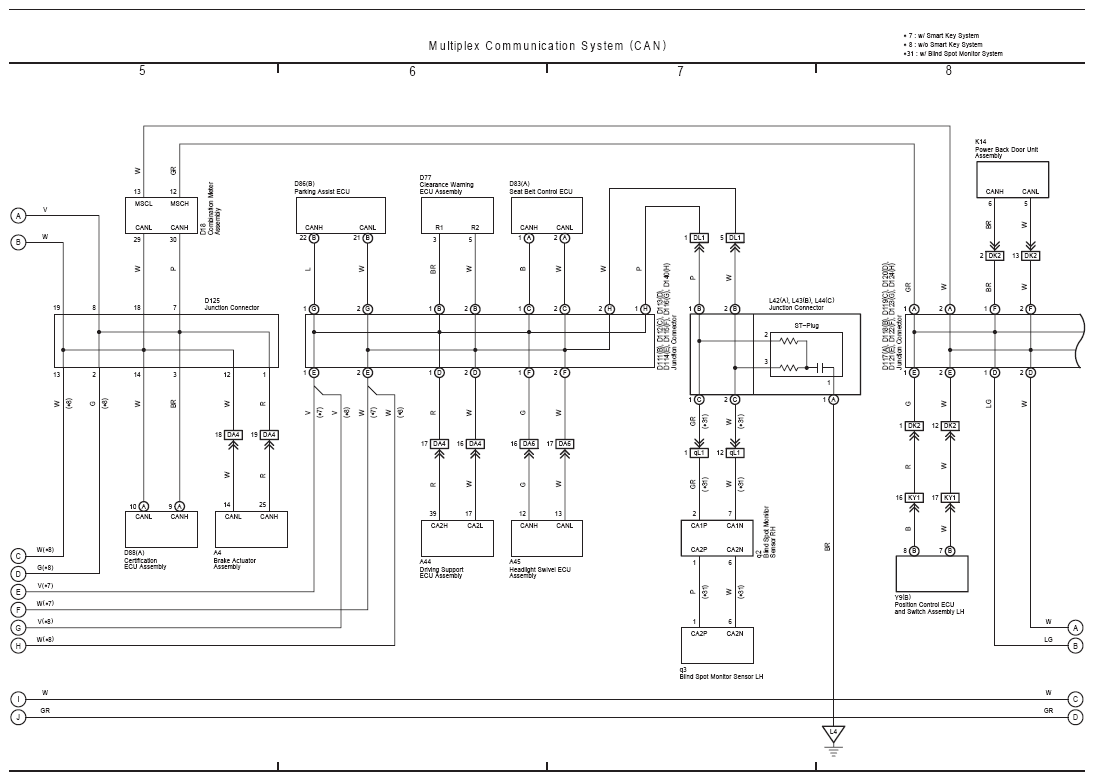

Fig 2: Multiplex Communication System Electrical Wiring Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

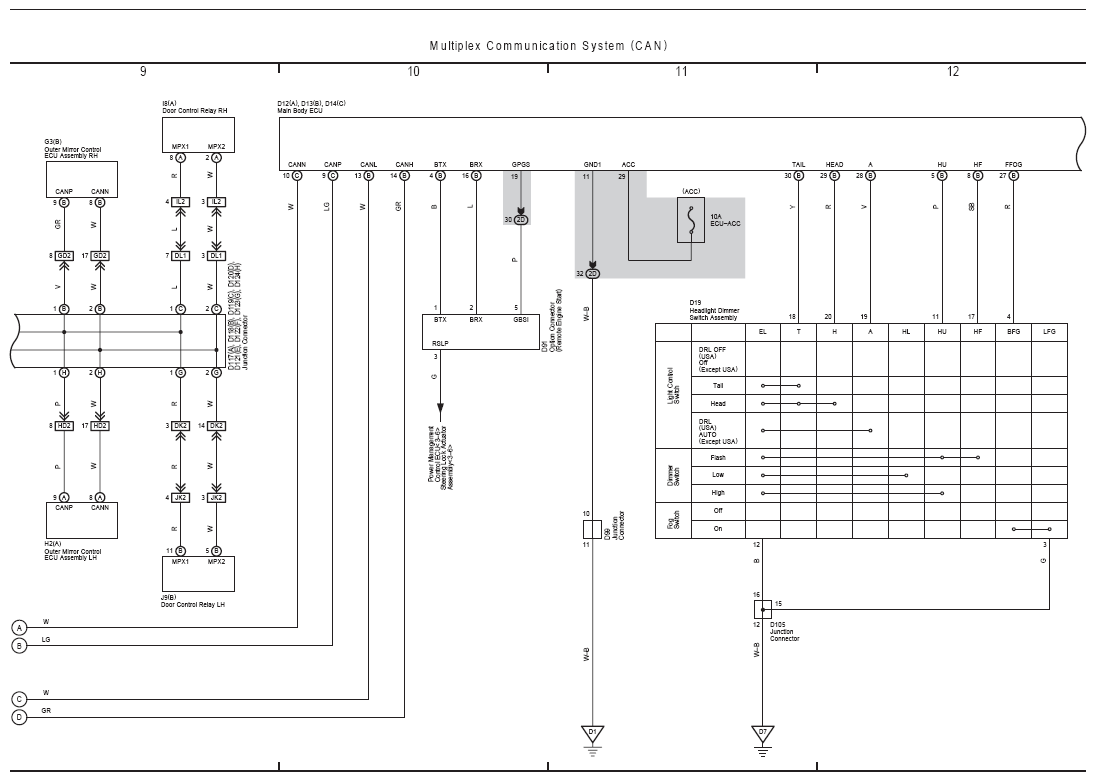

Fig 3: Multiplex Communication System Electrical Wiring Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

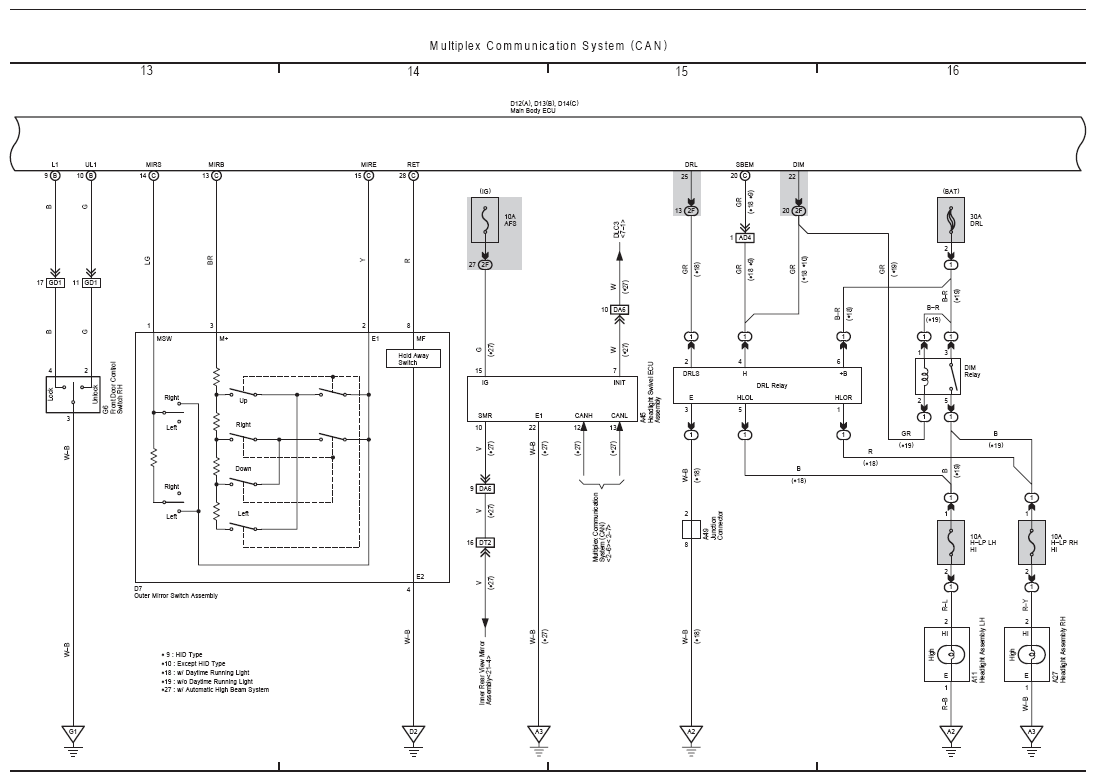

Fig 4: Multiplex Communication System Electrical Wiring Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

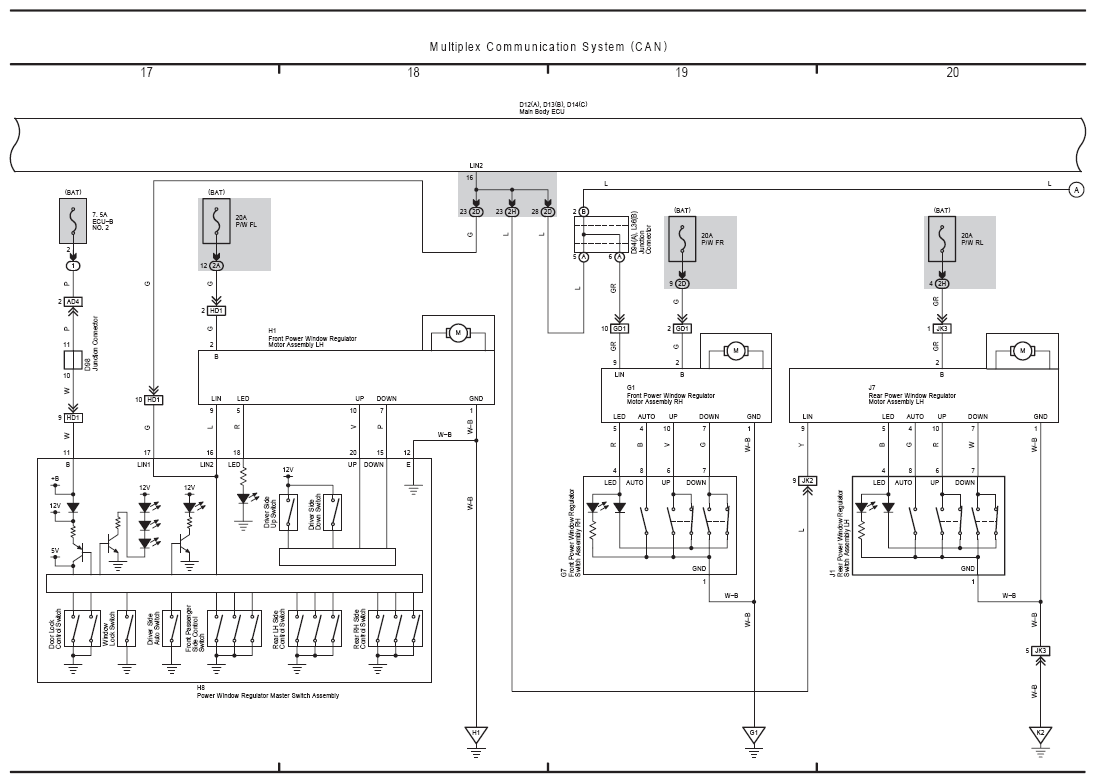

Fig 5: Multiplex Communication System Electrical Wiring Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

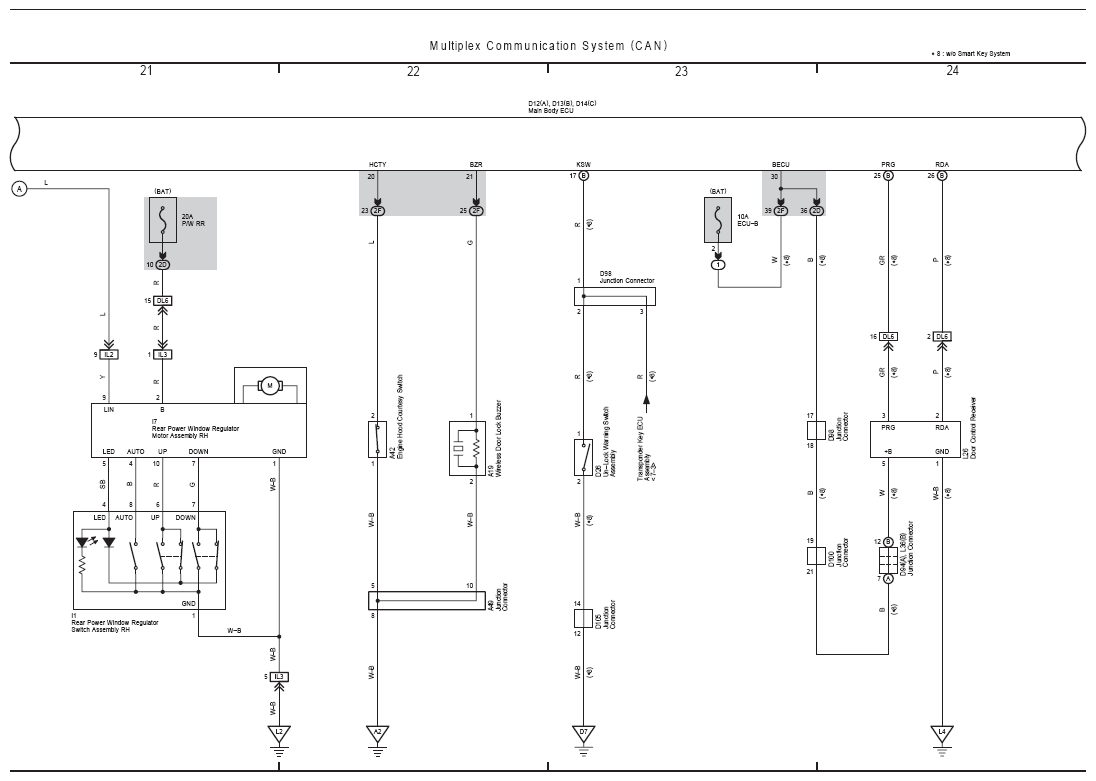

Fig 6: Multiplex Communication System Electrical Wiring Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

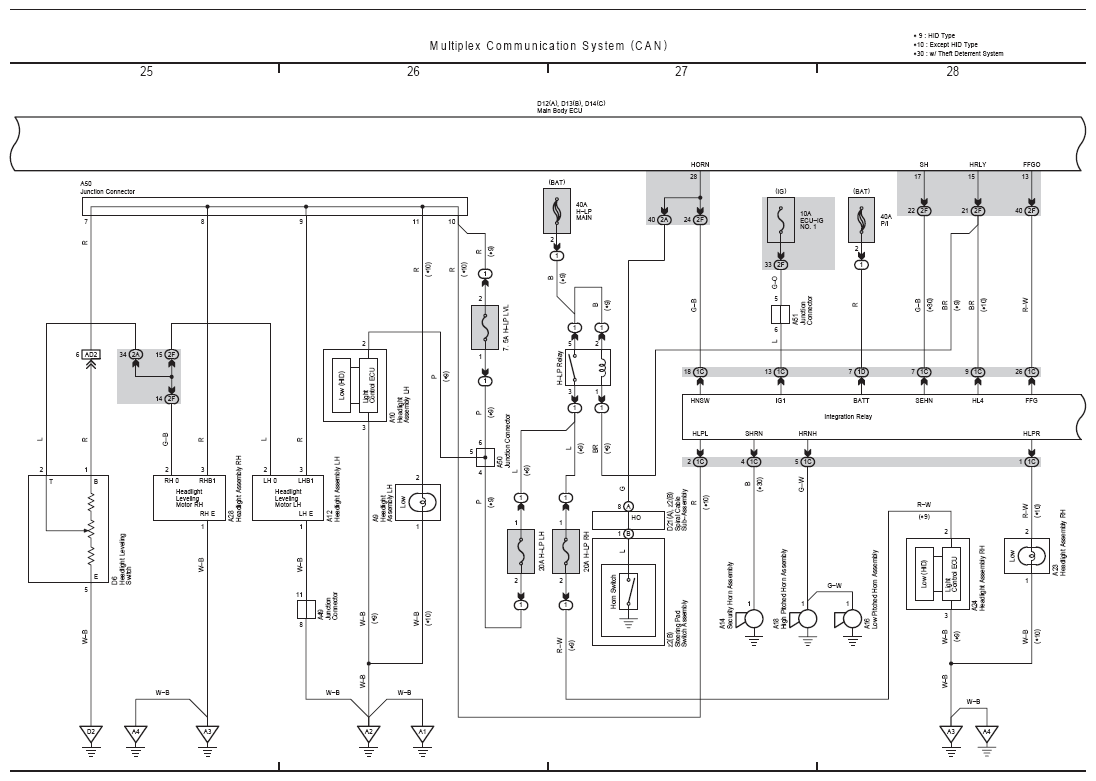

Fig 7: Multiplex Communication System Electrical Wiring Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

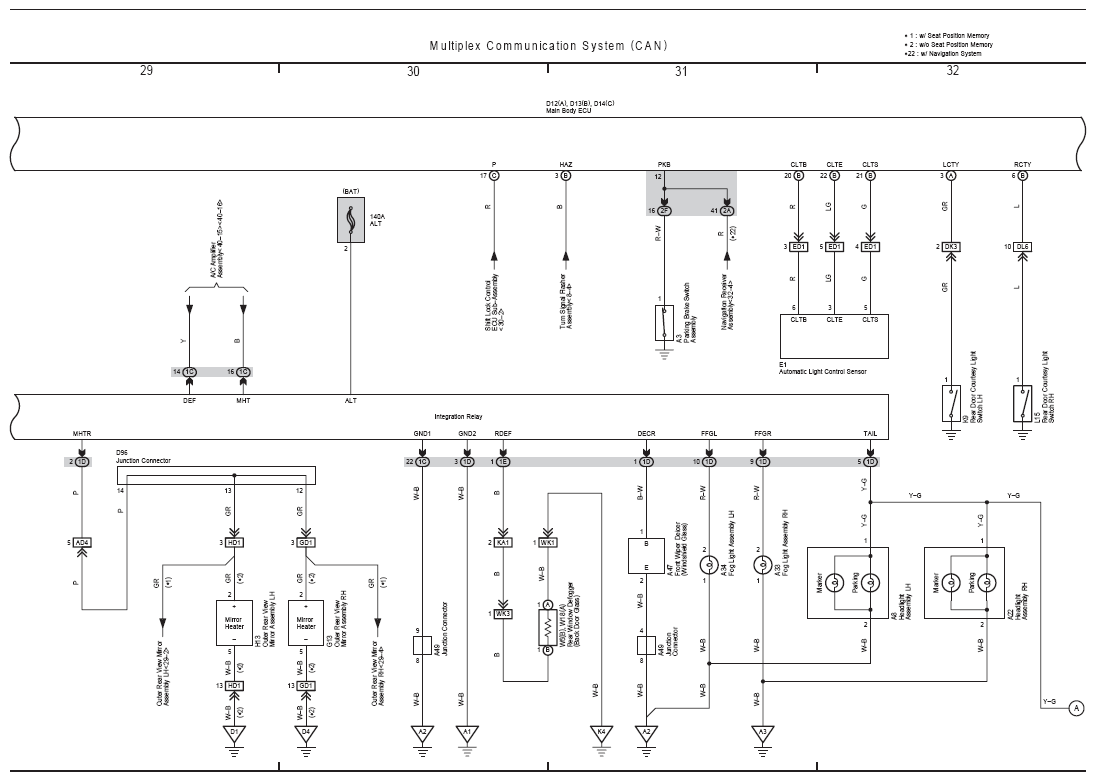

Fig 8: Multiplex Communication System Electrical Wiring Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

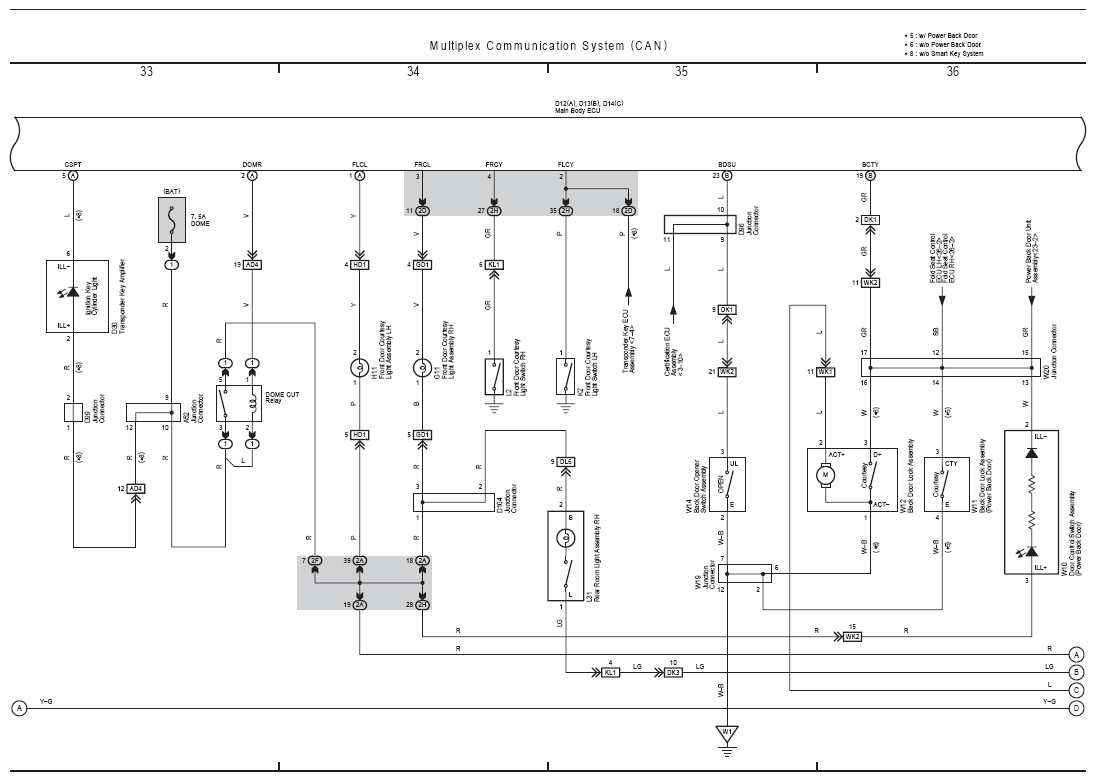

Fig 9: Multiplex Communication System Electrical Wiring Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

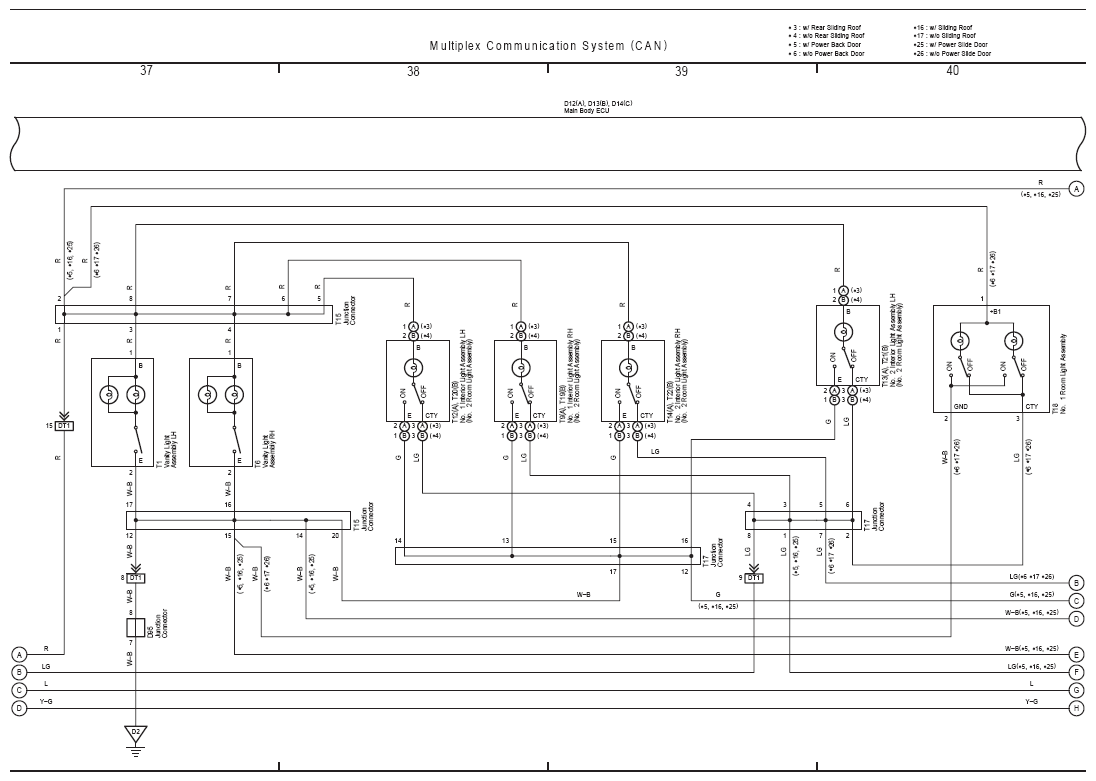

Fig 10: Multiplex Communication System Electrical Wiring Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

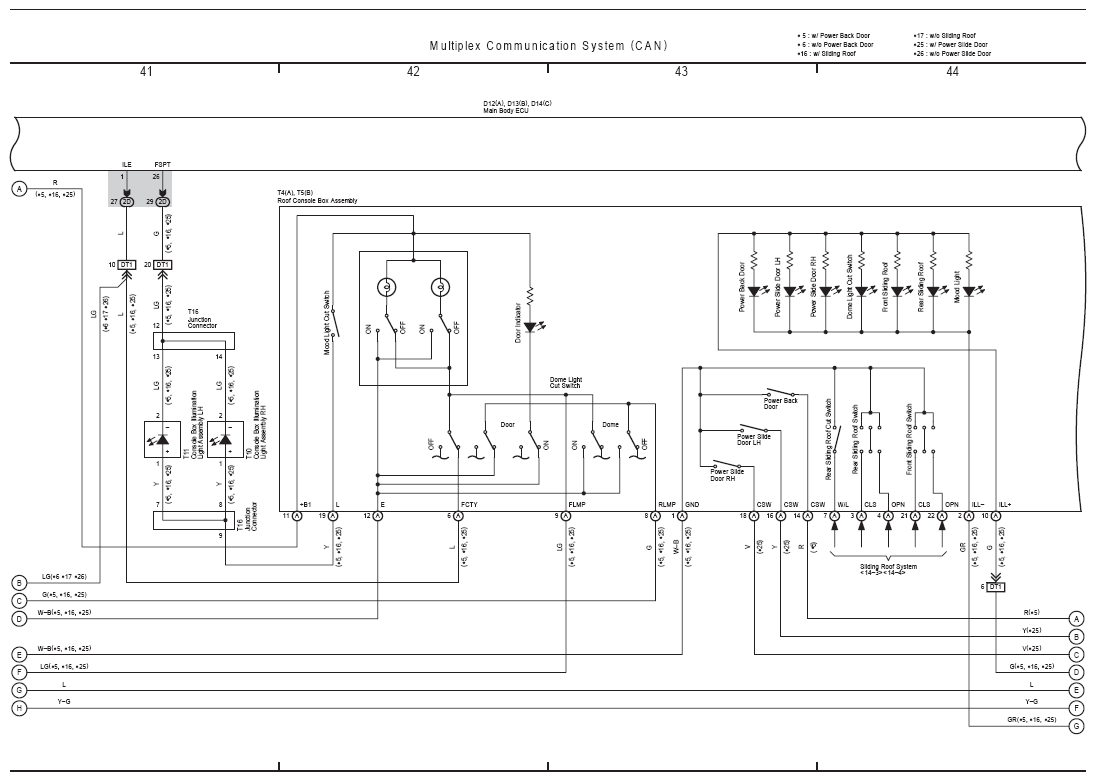

Fig 11: Multiplex Communication System Electrical Wiring Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

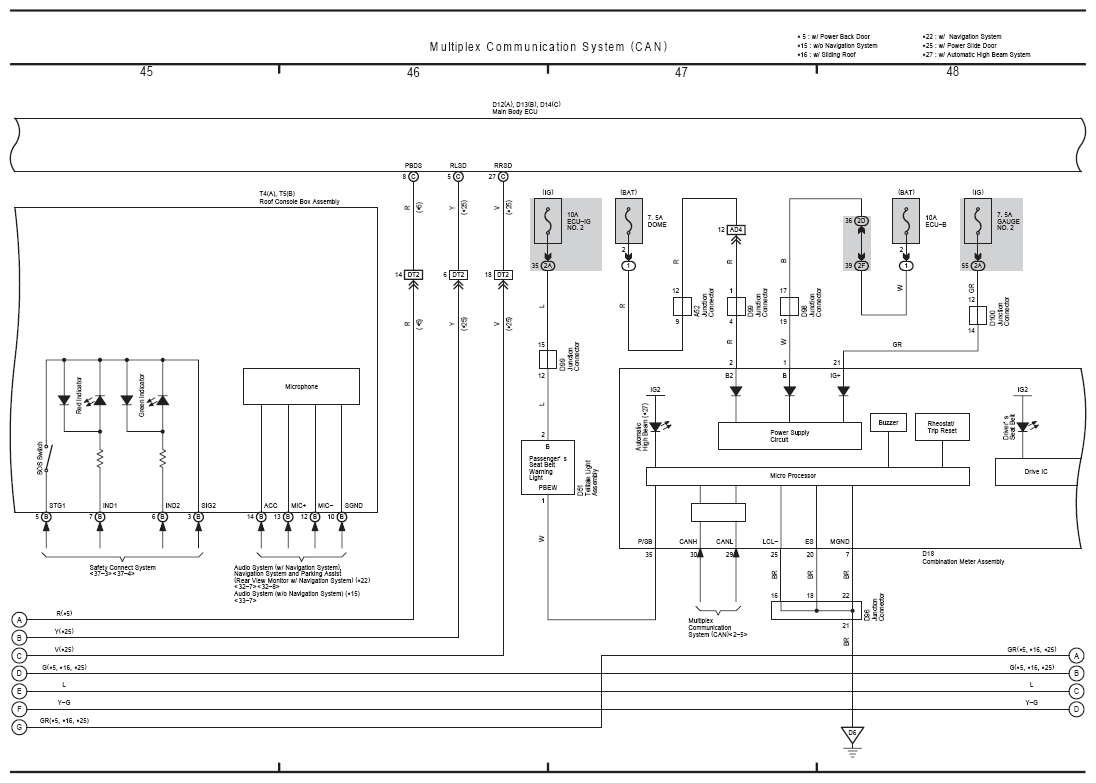

Fig 12: Multiplex Communication System Electrical Wiring Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

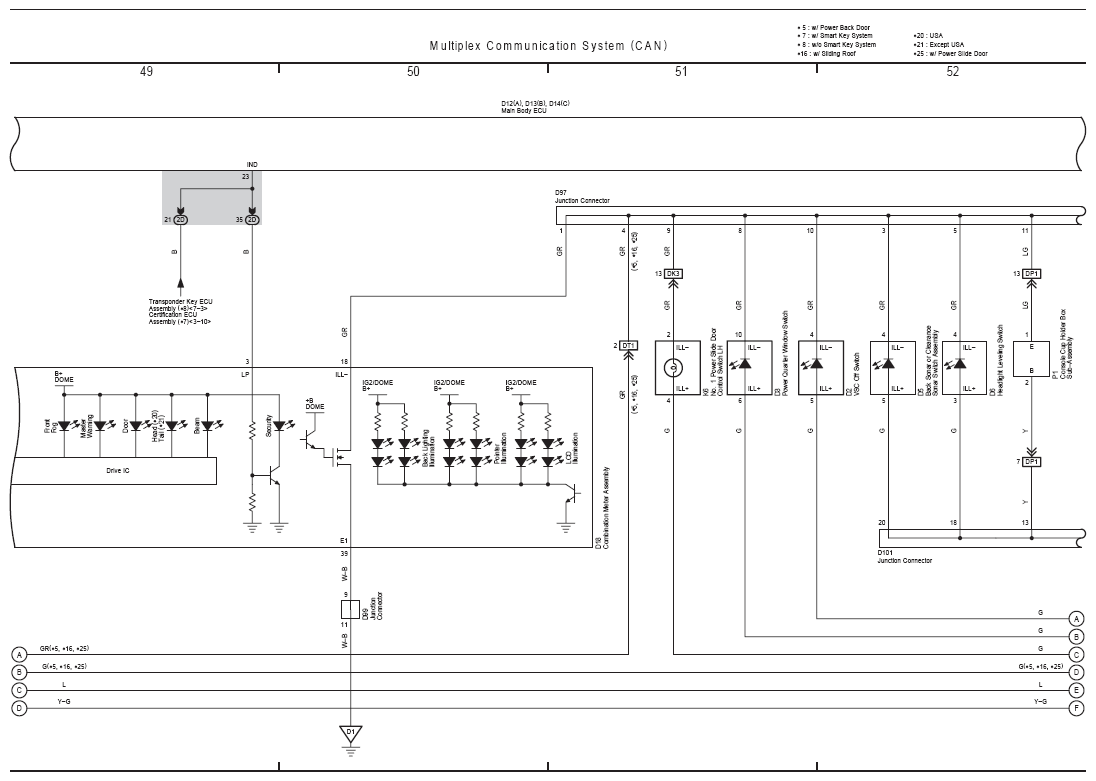

Fig 13: Multiplex Communication System Electrical Wiring Diagram (13 Of 18)

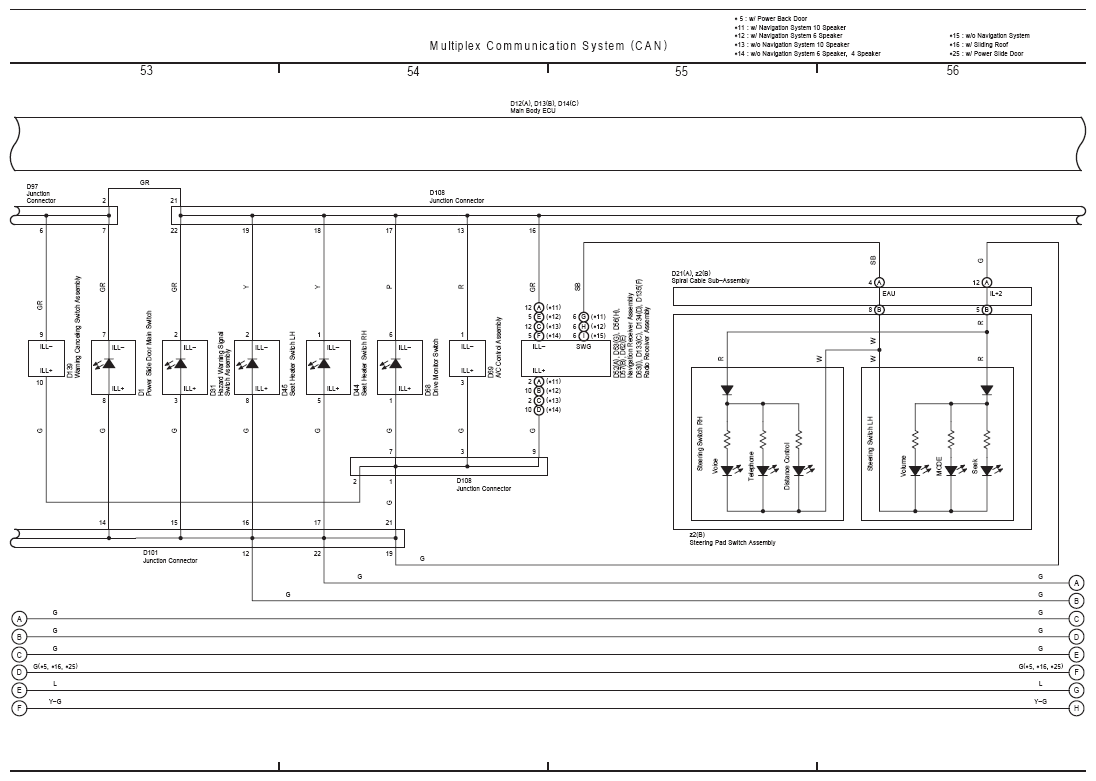

Fig 14: Multiplex Communication System Electrical Wiring Diagram (14 Of 18)

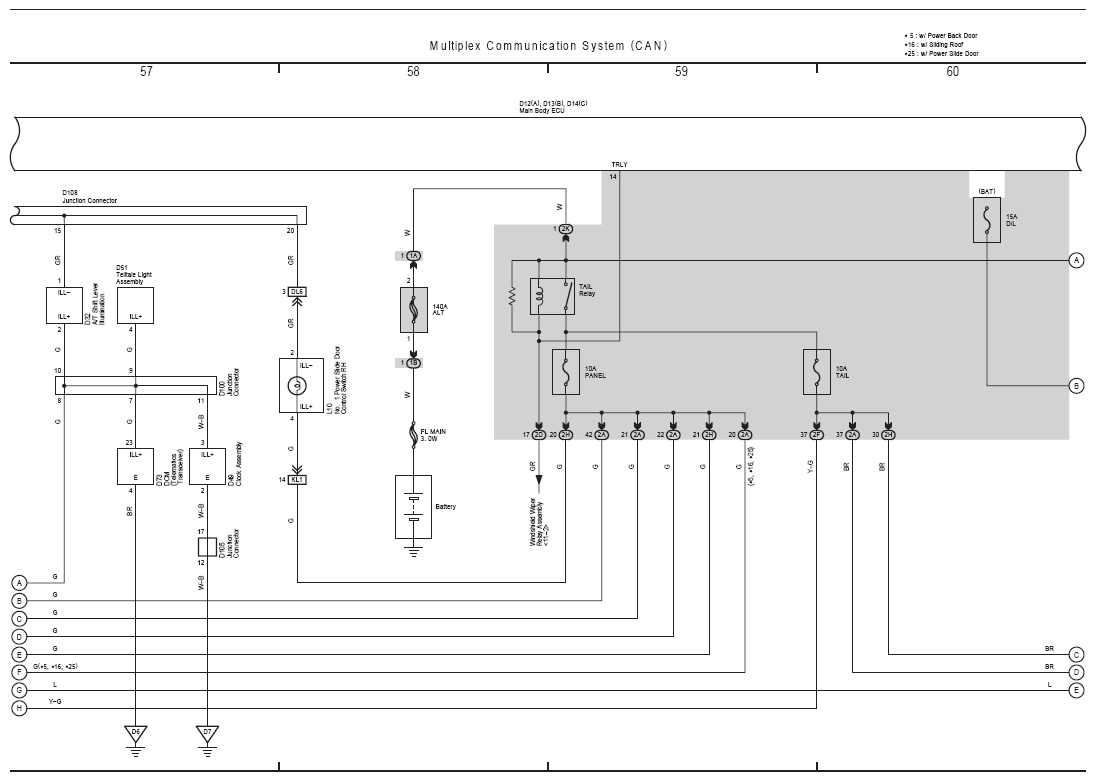

Fig 15: Multiplex Communication System Electrical Wiring Diagram (15 Of 18)

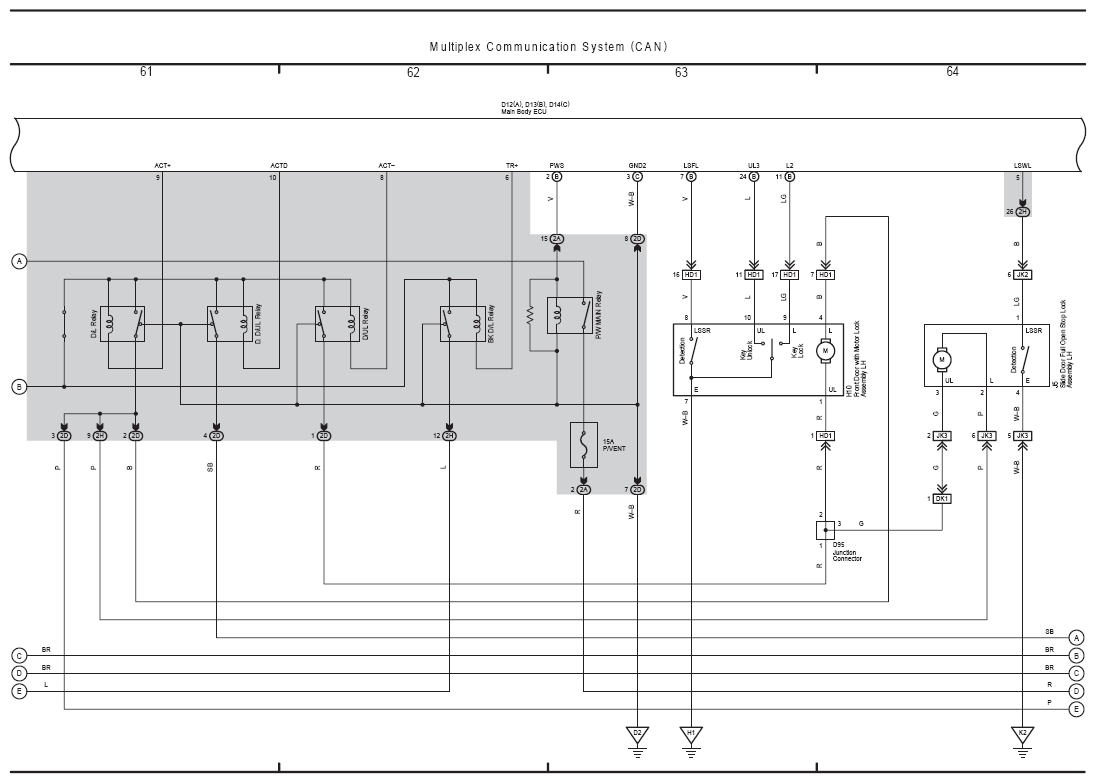

Fig 16: Multiplex Communication System Electrical Wiring Diagram (16 Of 18)

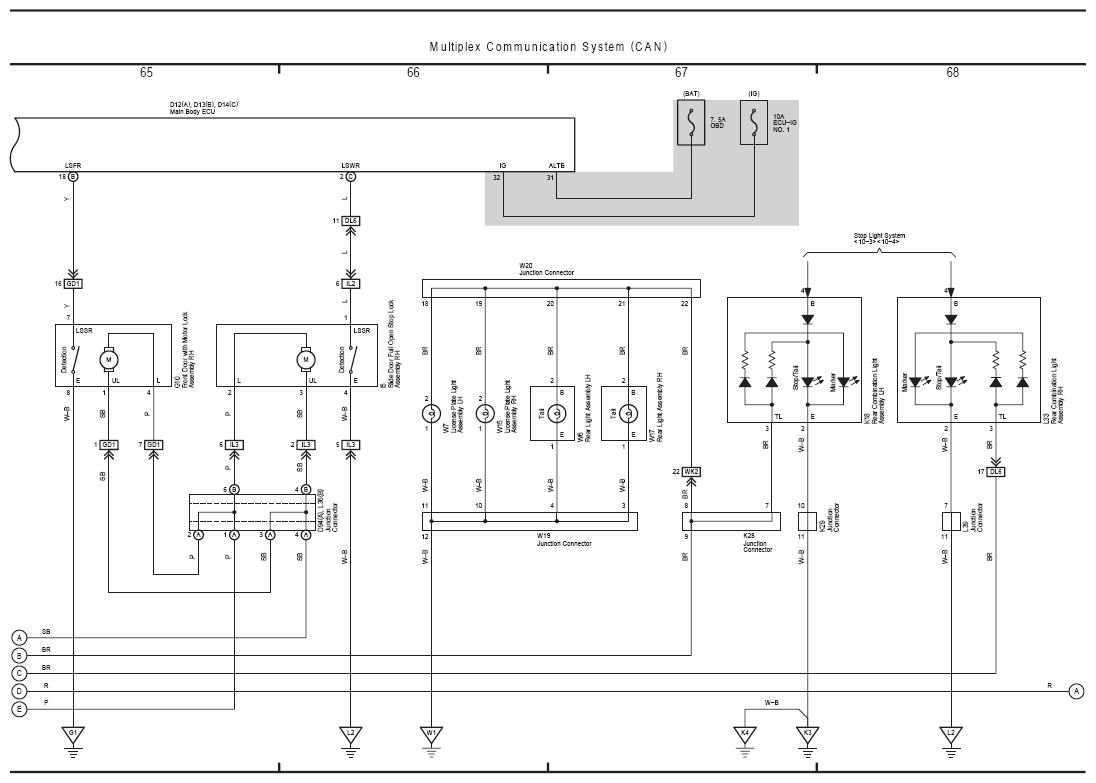

Fig 17: Multiplex Communication System Electrical Wiring Diagram (17 Of 18)

Fig 18: Multiplex Communication System Electrical Wiring Diagram (18 Of 18)
