Multi-Display And Parking Assist (Rear View Monitor W/O Navigation System) Wiring Diagram

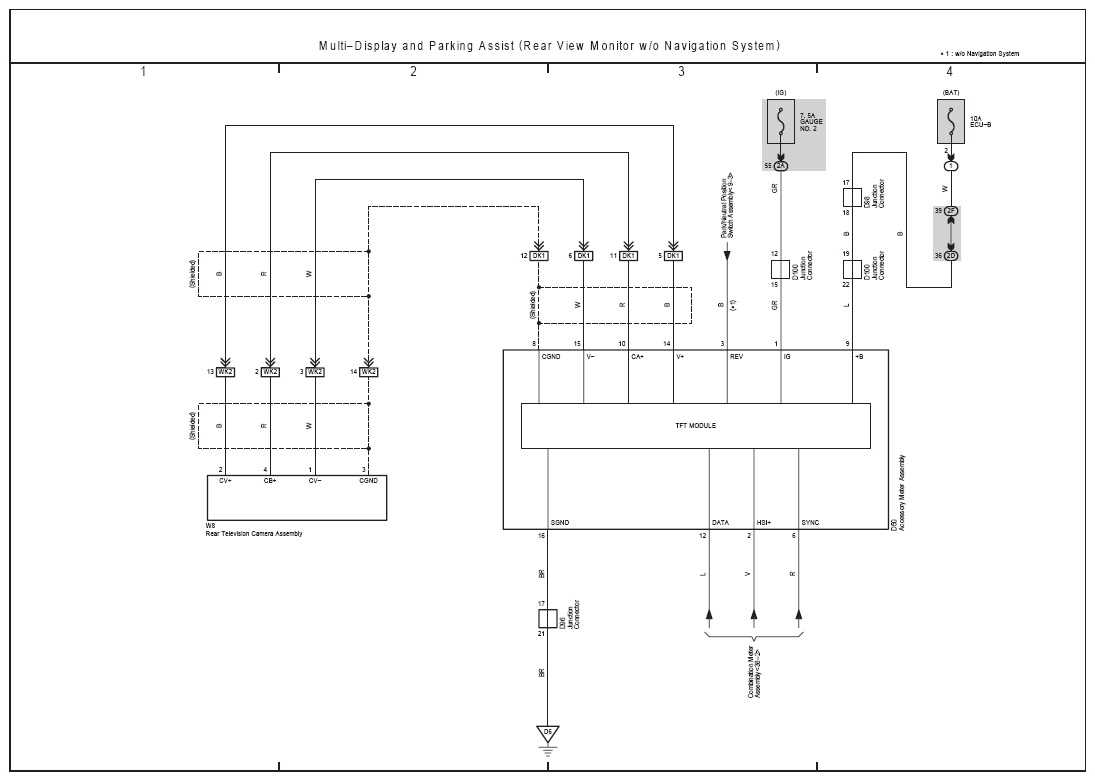

Fig 1: Multi-Display And Parking Assist (Rear View Monitor W/O Navigation System) Electrical Wiring Diagram
G09112426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
