Ignition (2GR-FE) Wiring Diagram

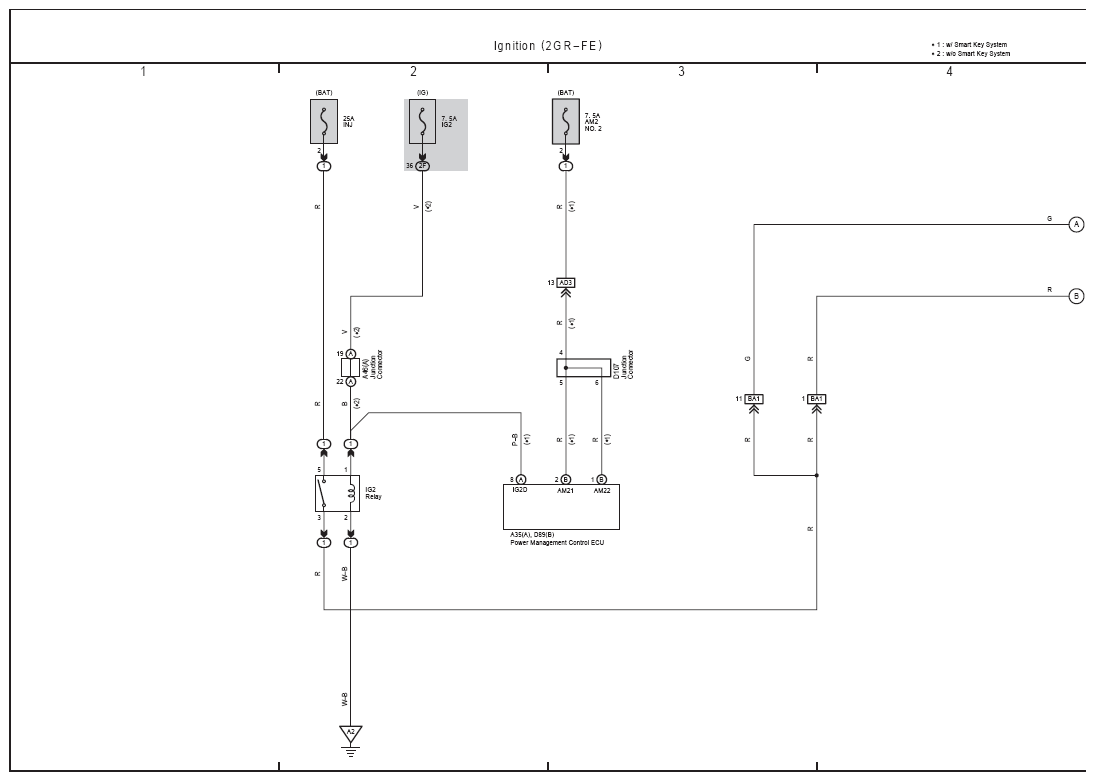

Fig 1: Ignition (2GR-FE) Electrical Wiring Diagram (1 Of 2)
G09112368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

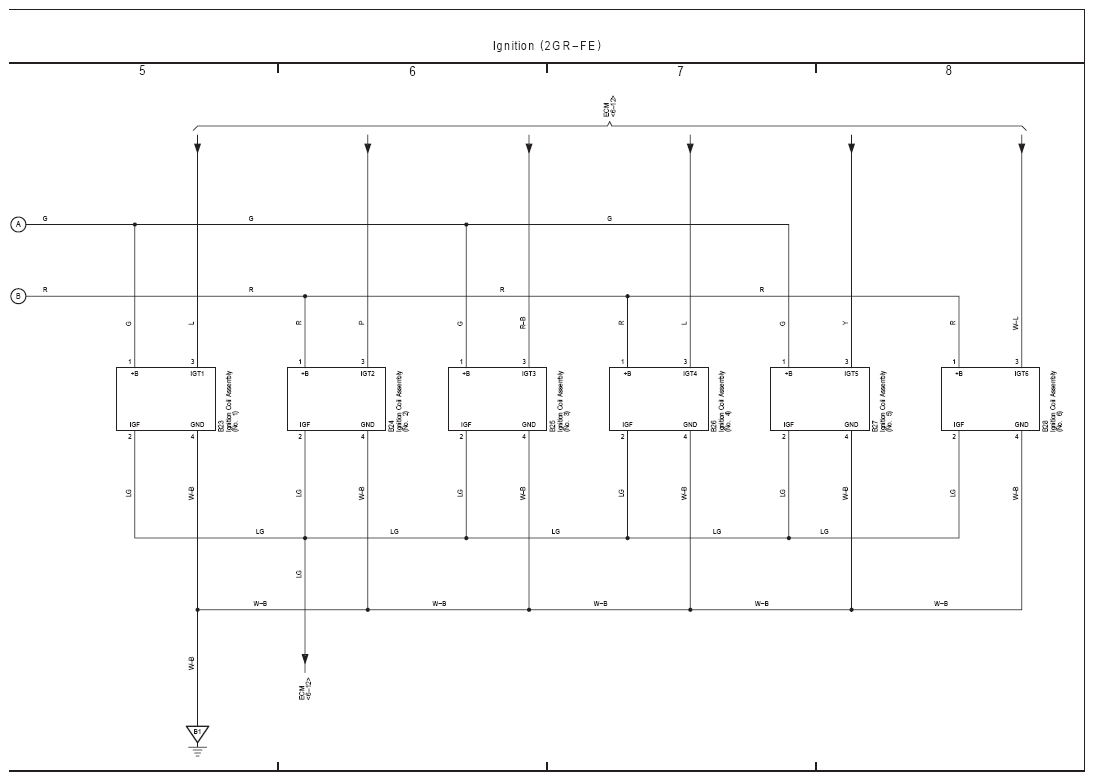

Fig 2: Ignition (2GR-FE) Electrical Wiring Diagram (2 Of 2)
G09112369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
