Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or Abs, TRAC And VSC Electrical Wiring Diagrams

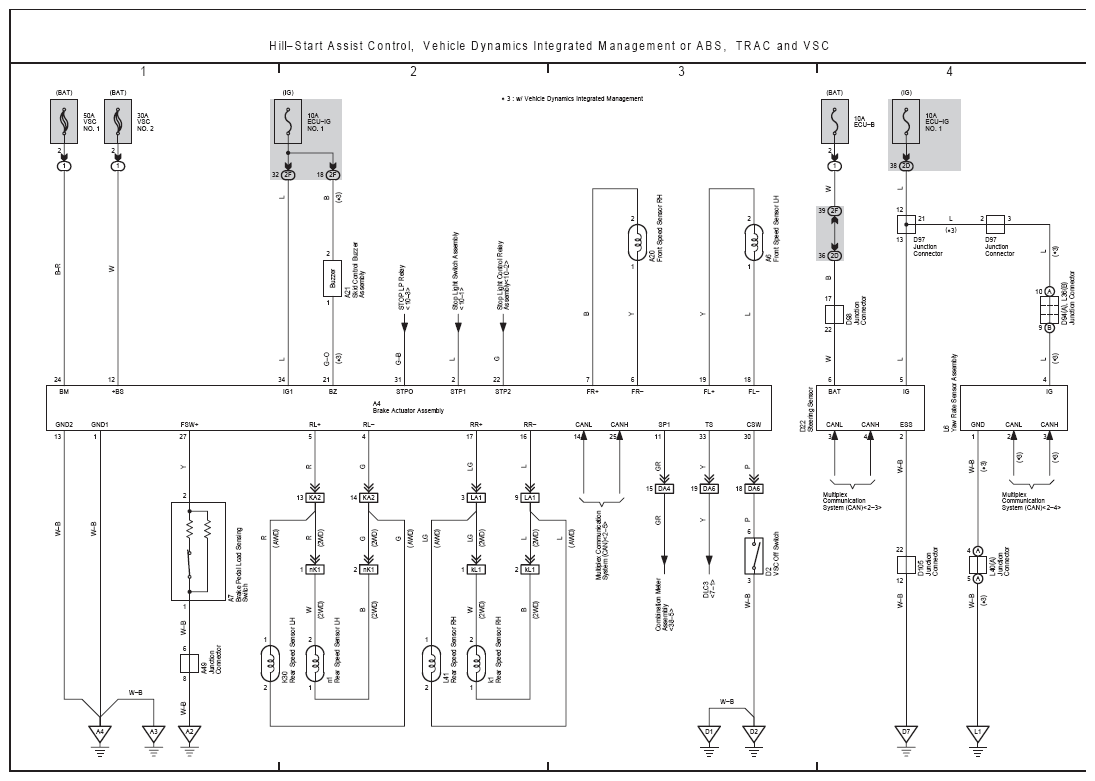

Fig 1: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

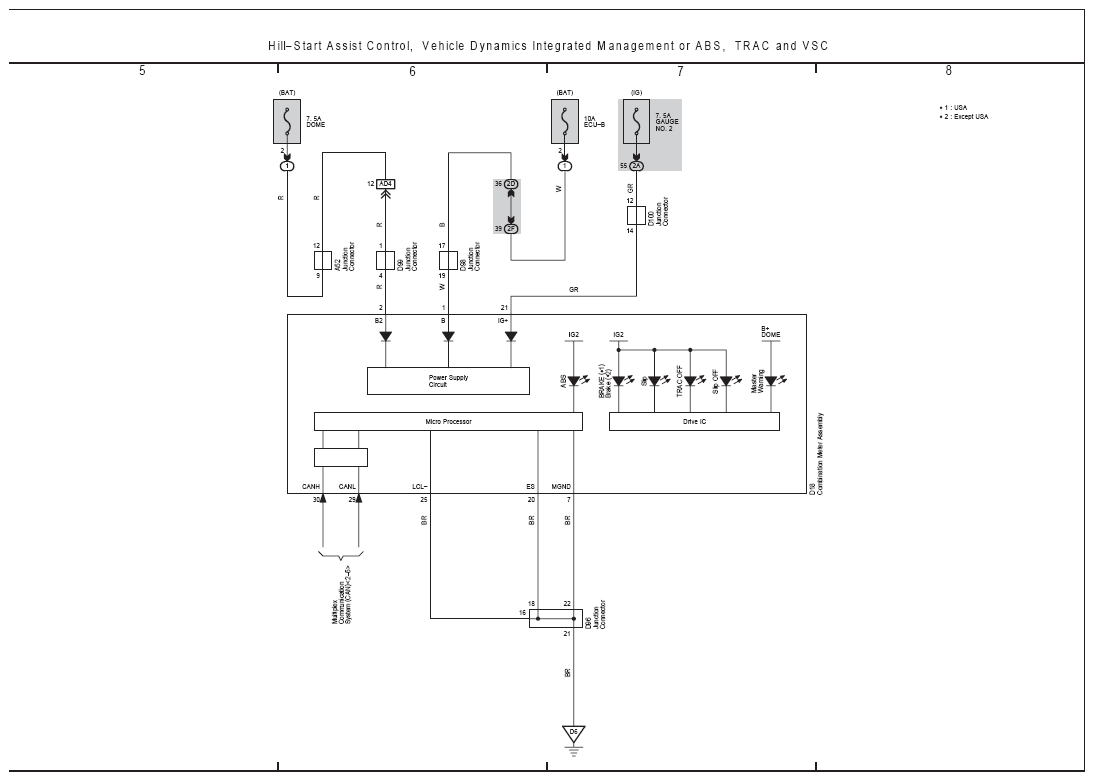

Fig 2: Hill-Start Assist Control, Vehicle Dynamics Integrated Management Or ABS, TRAC And VSC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
