Overall Electrical Wiring Diagram
>>
Front Wiper And Washer (W/O Auto Wiper System) Wiring Diagram
Front Wiper And Washer (W/O Auto Wiper System) Wiring Diagram

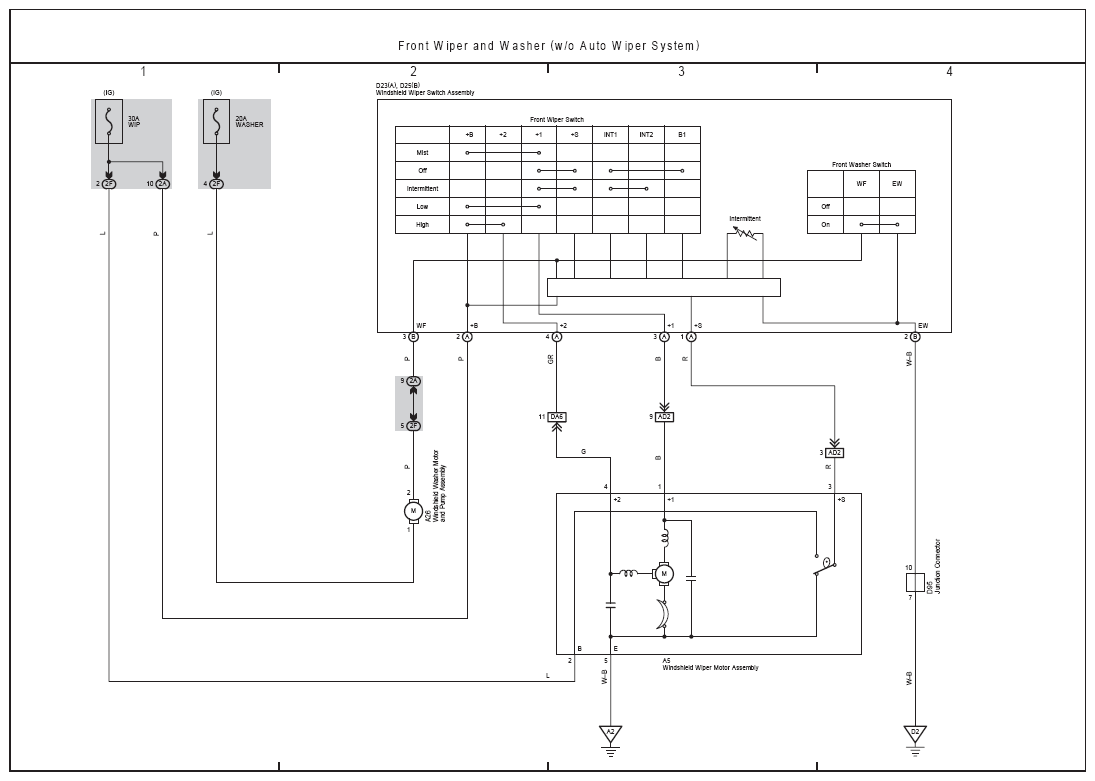

Fig 1: Front Wiper And Washer (W/O Auto Wiper System) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
