Blind Spot Monitor System Wiring Diagrams

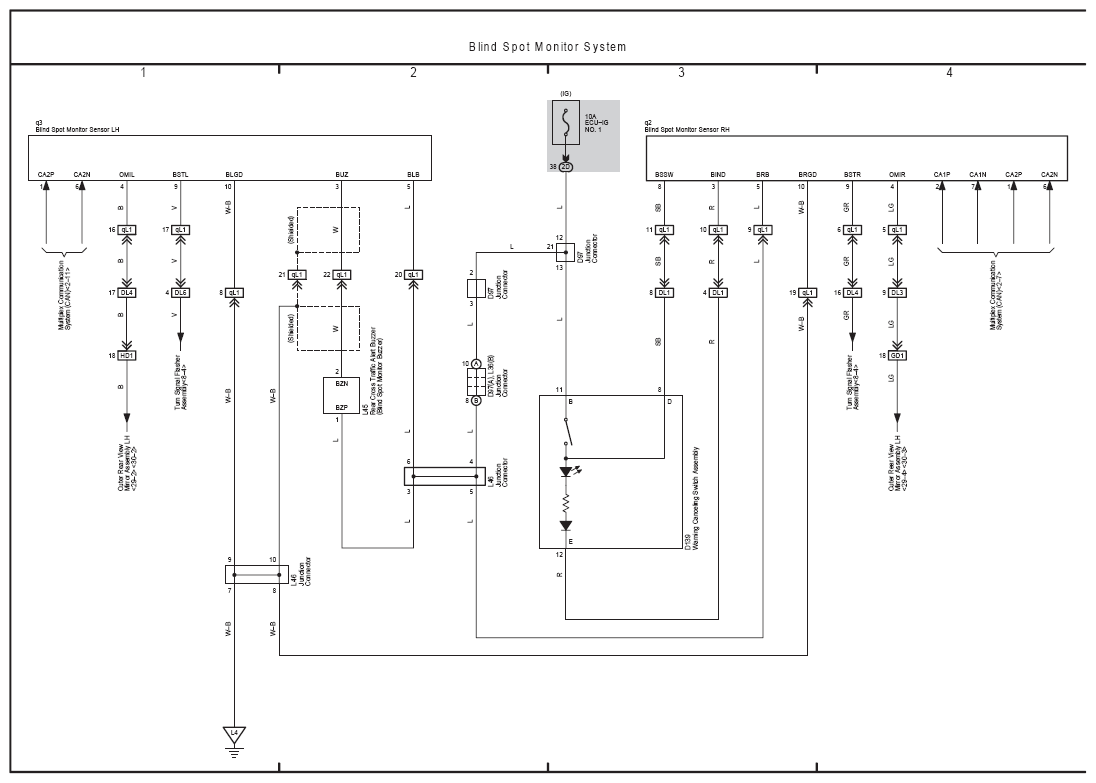

Fig 1: Blind Spot Monitor System Electrical Wiring Diagram (1 Of 2)
G09112447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

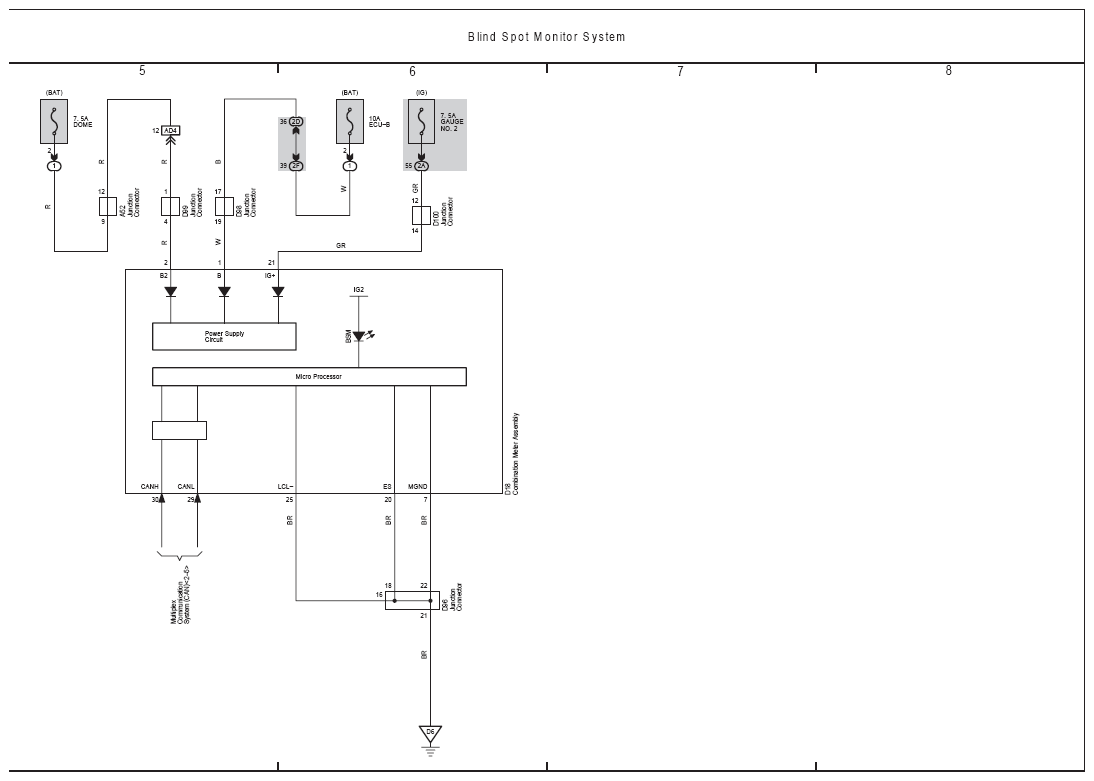

Fig 2: Blind Spot Monitor System Electrical Wiring Diagram (2 Of 2)
G09112448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
