Back-Up Light Wiring Diagram

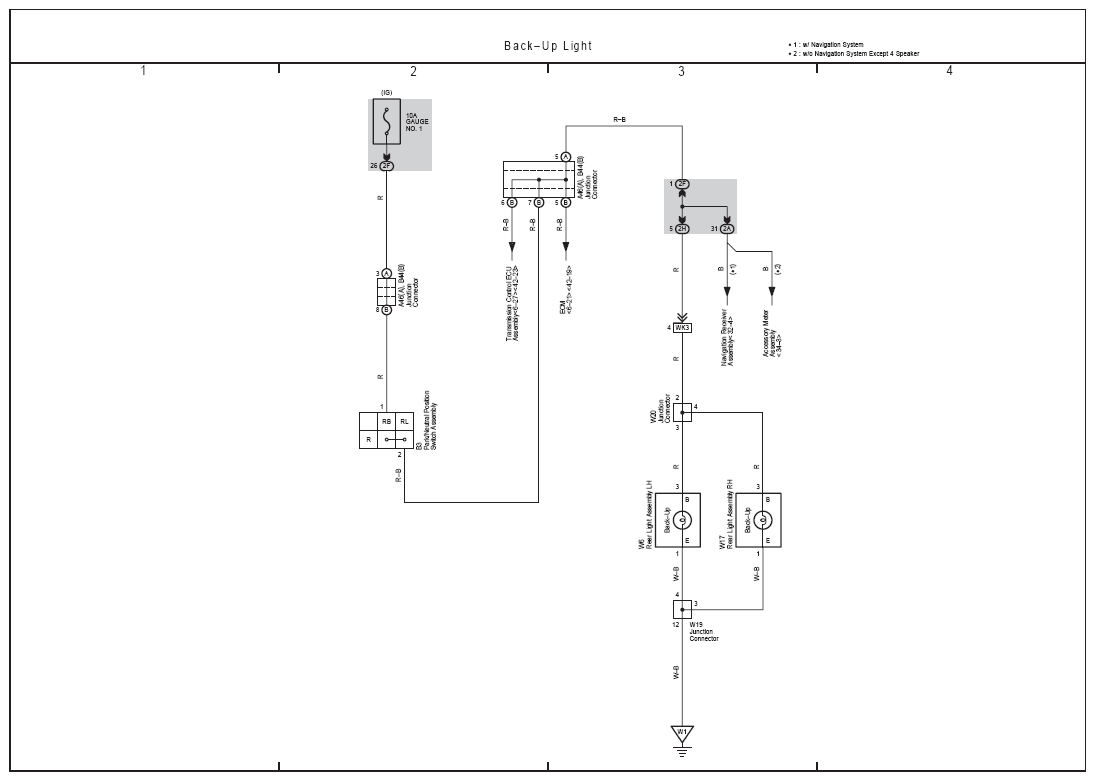

Fig 1: Back-up Light Electrical Wiring Diagram

G09112381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
