Auto Access Seat Wiring Diagrams

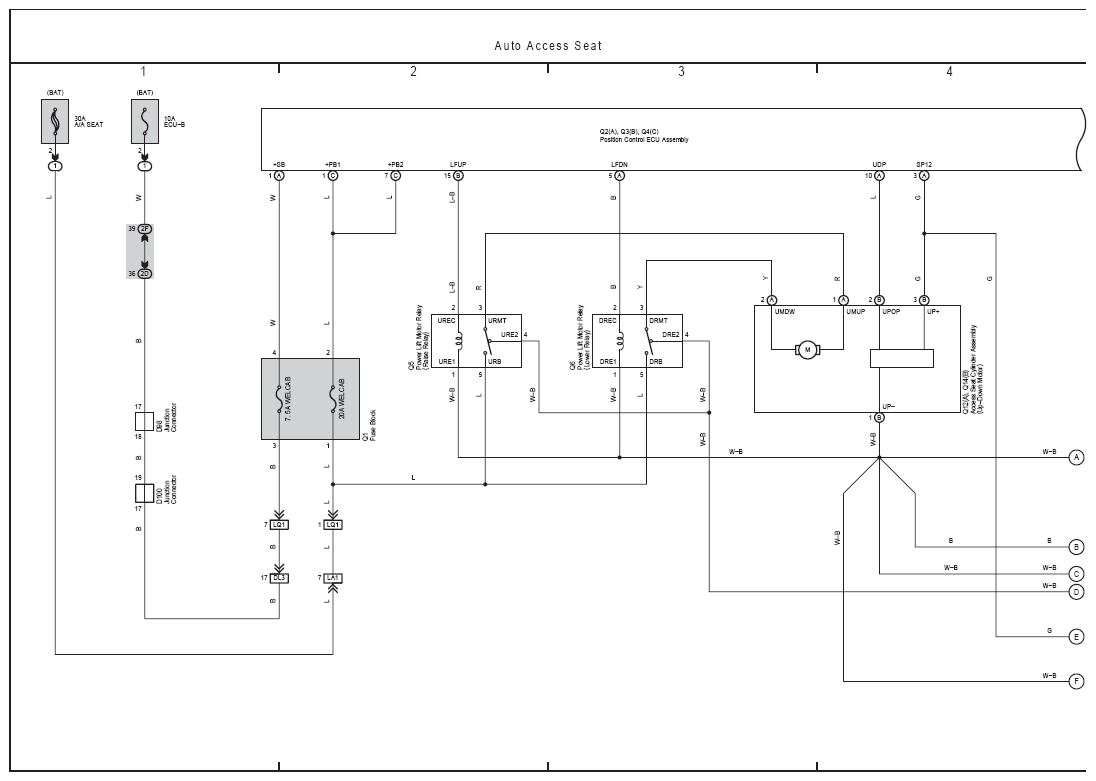

Fig 1: Auto Access Seat Electrical Wiring Diagram (1 Of 4)
G09112405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

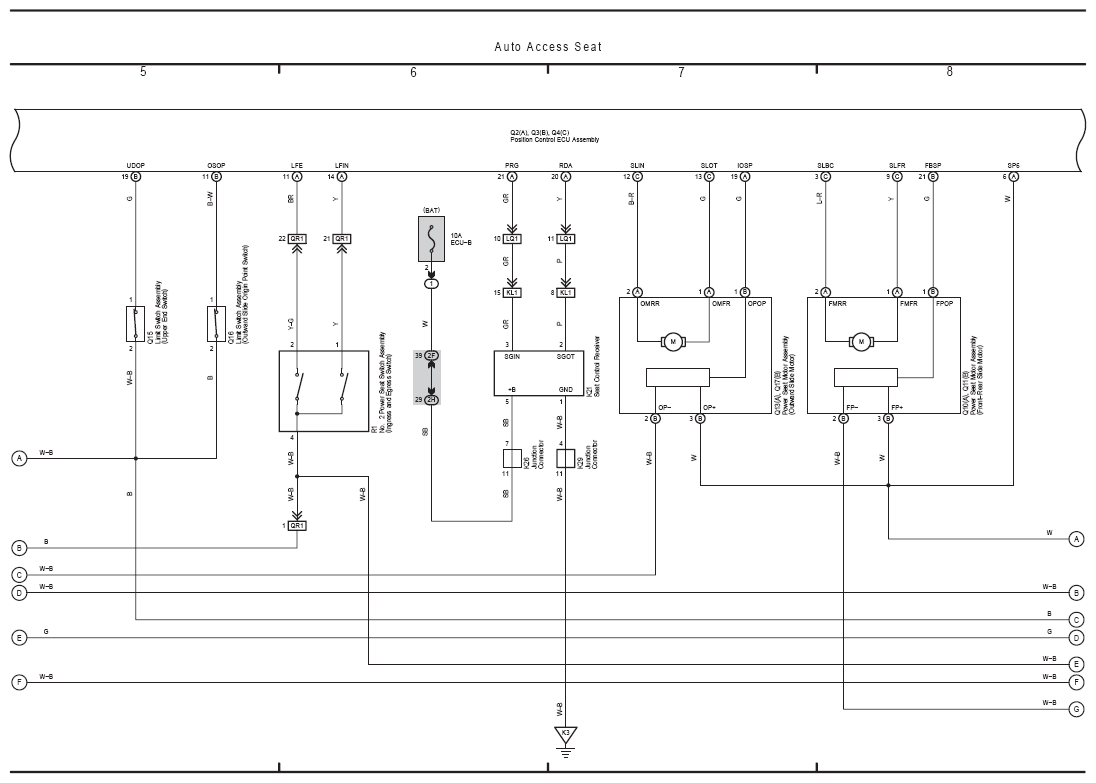

Fig 2: Auto Access Seat Electrical Wiring Diagram (2 Of 4)
G09112406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

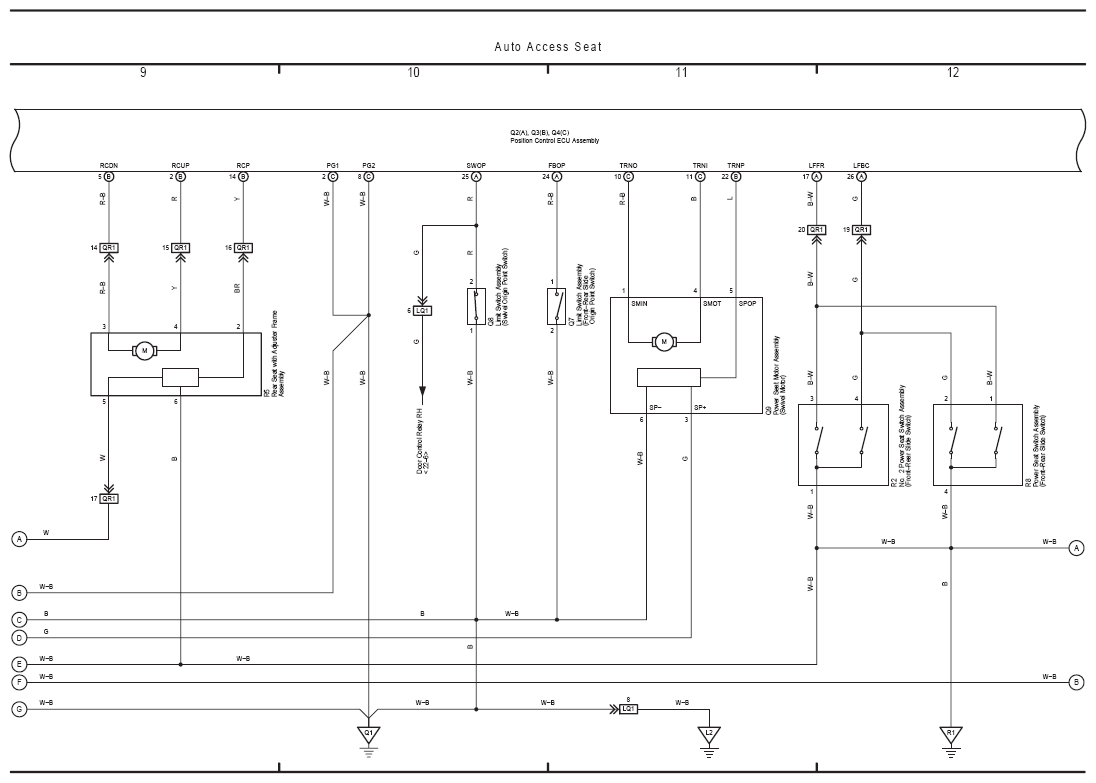

Fig 3: Auto Access Seat Electrical Wiring Diagram (3 Of 4)
G09112407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

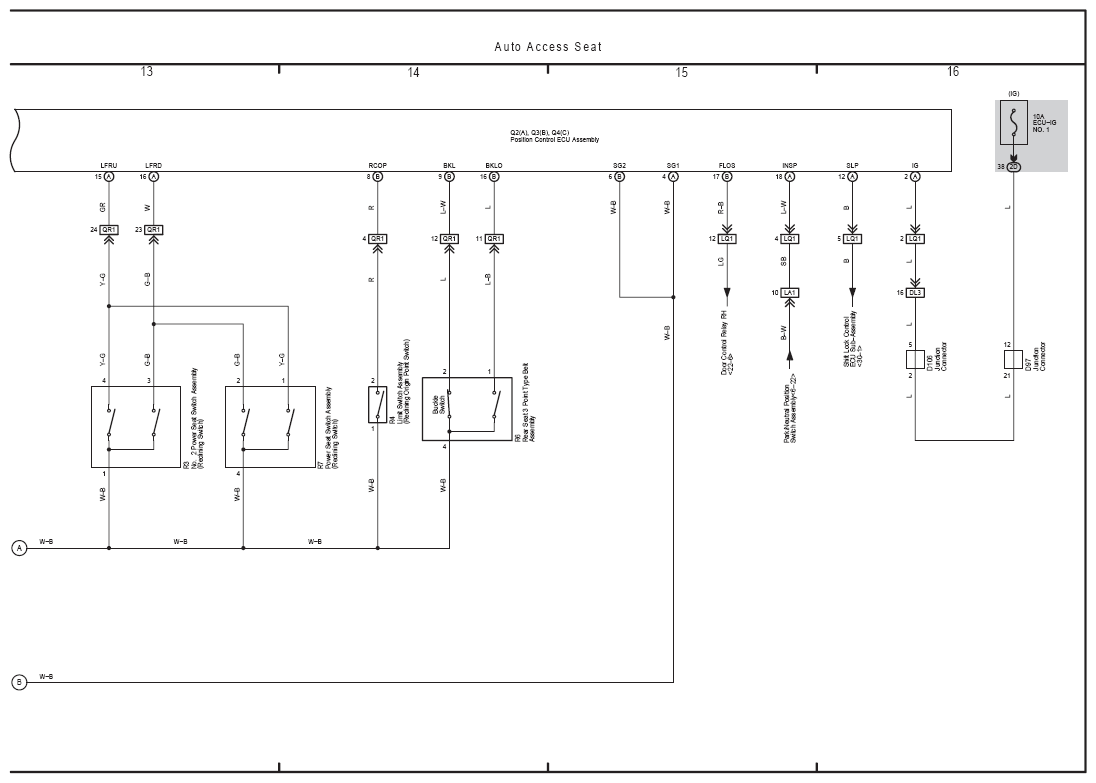

Fig 4: Auto Access Seat Electrical Wiring Diagram (4 Of 4)
G09112408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
