Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Wiring Diagrams

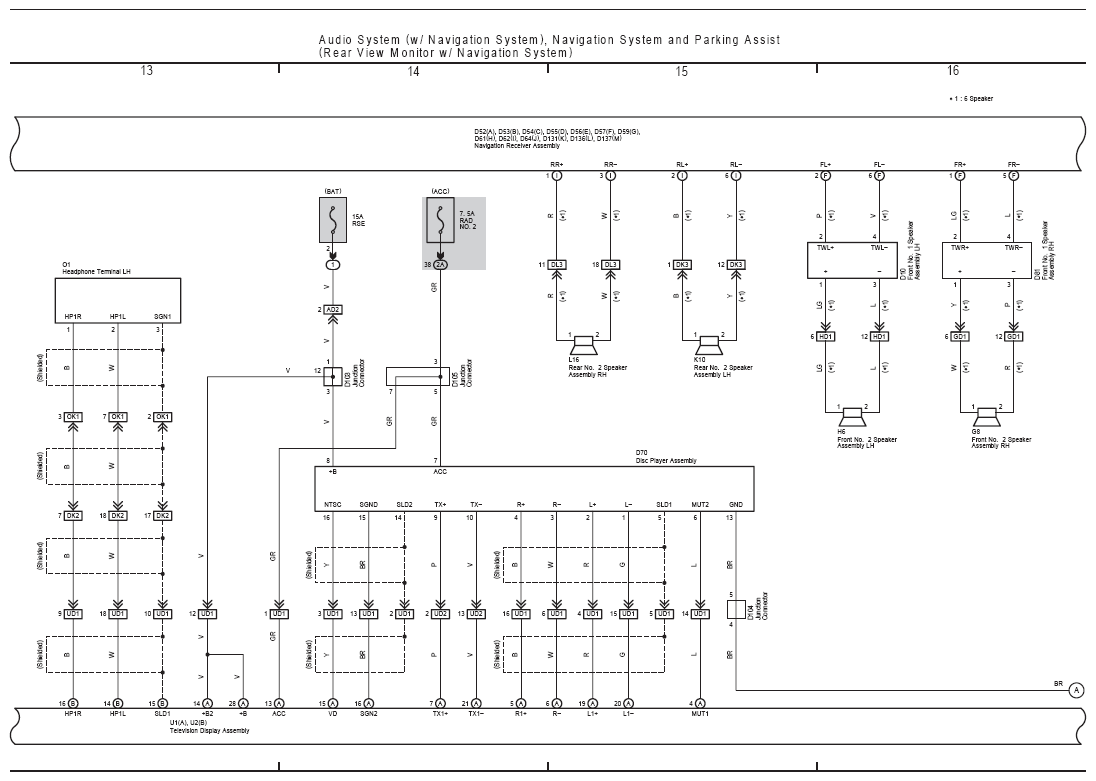

Fig 1: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

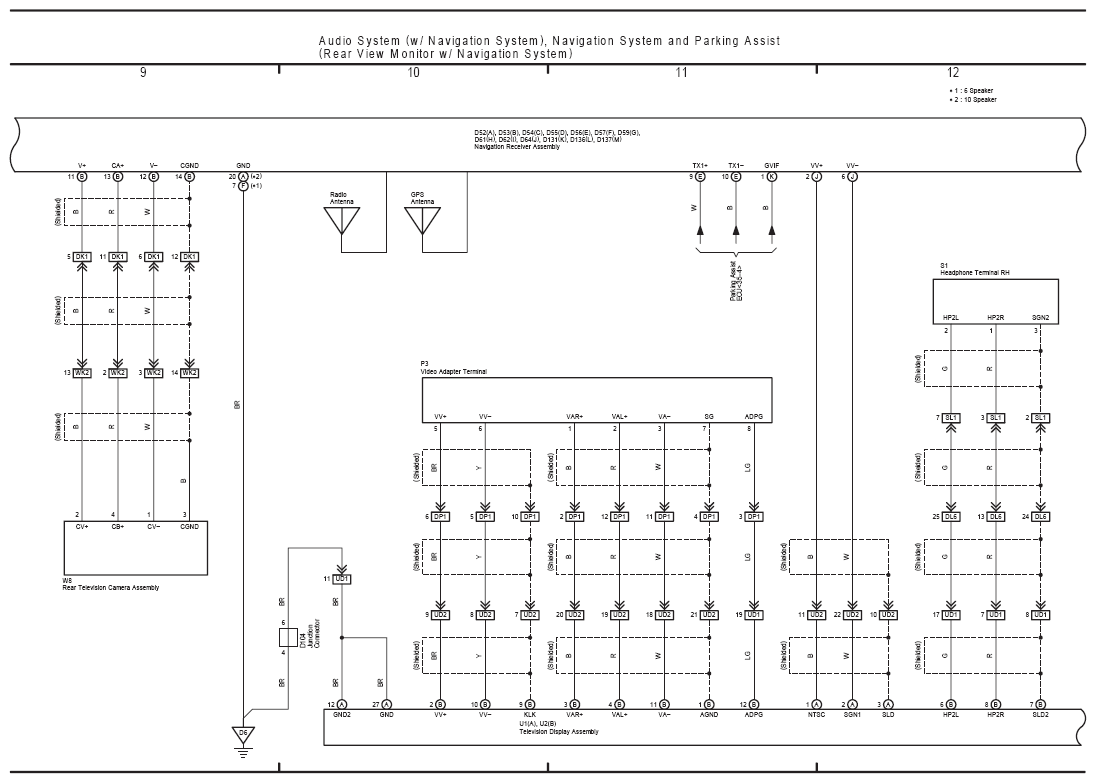

Fig 2: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

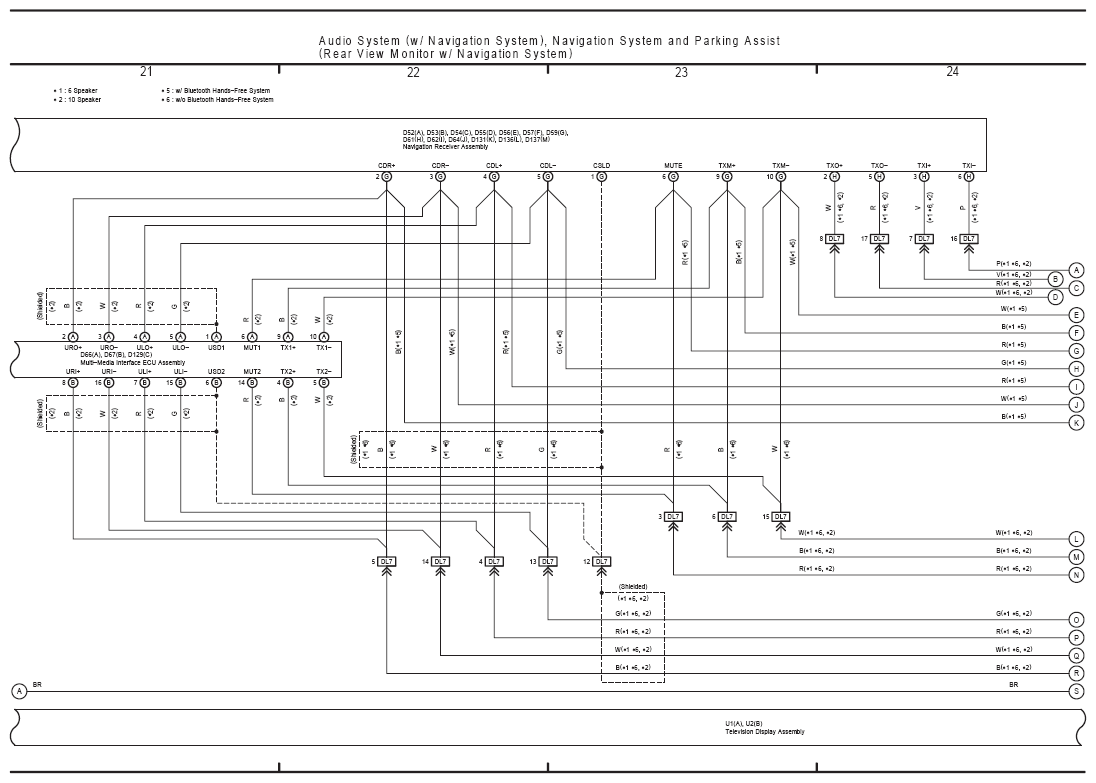

Fig 3: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

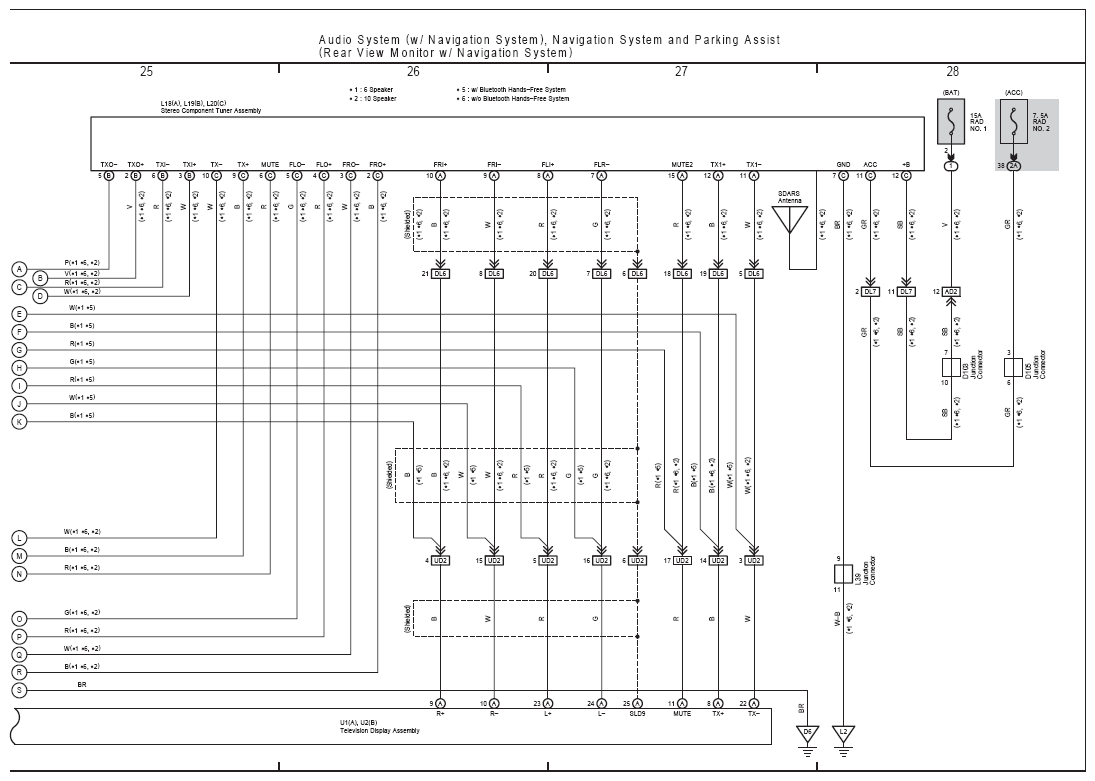

Fig 4: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

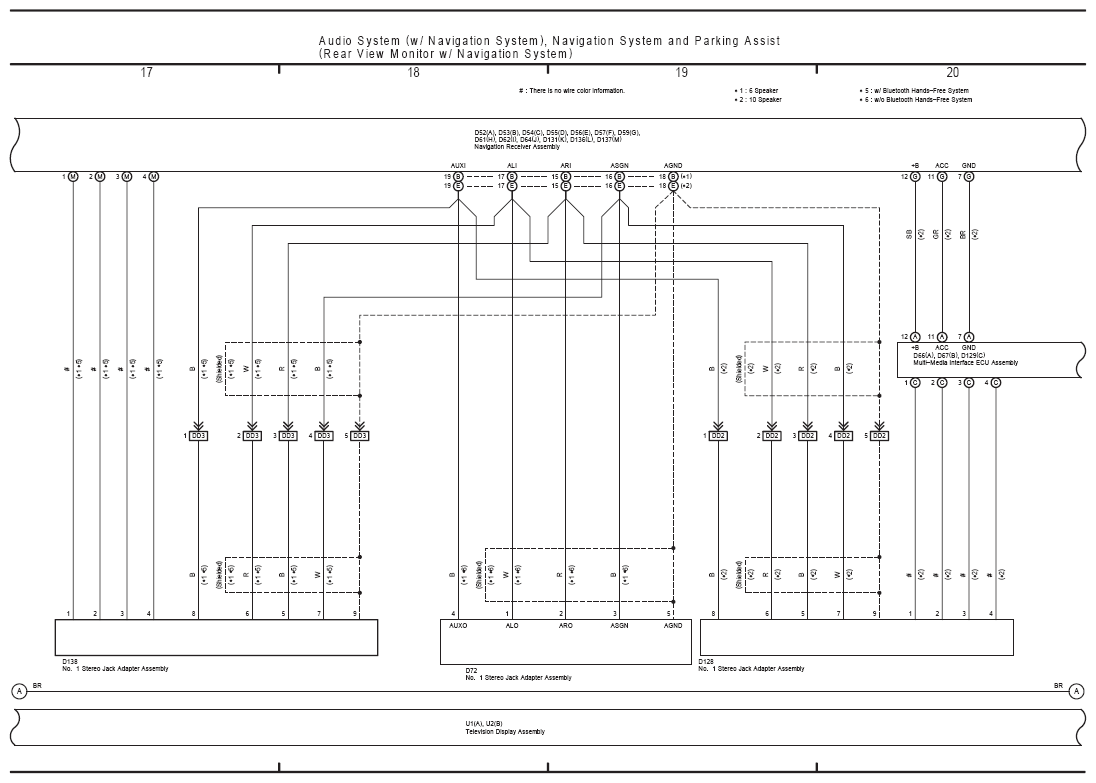

Fig 5: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

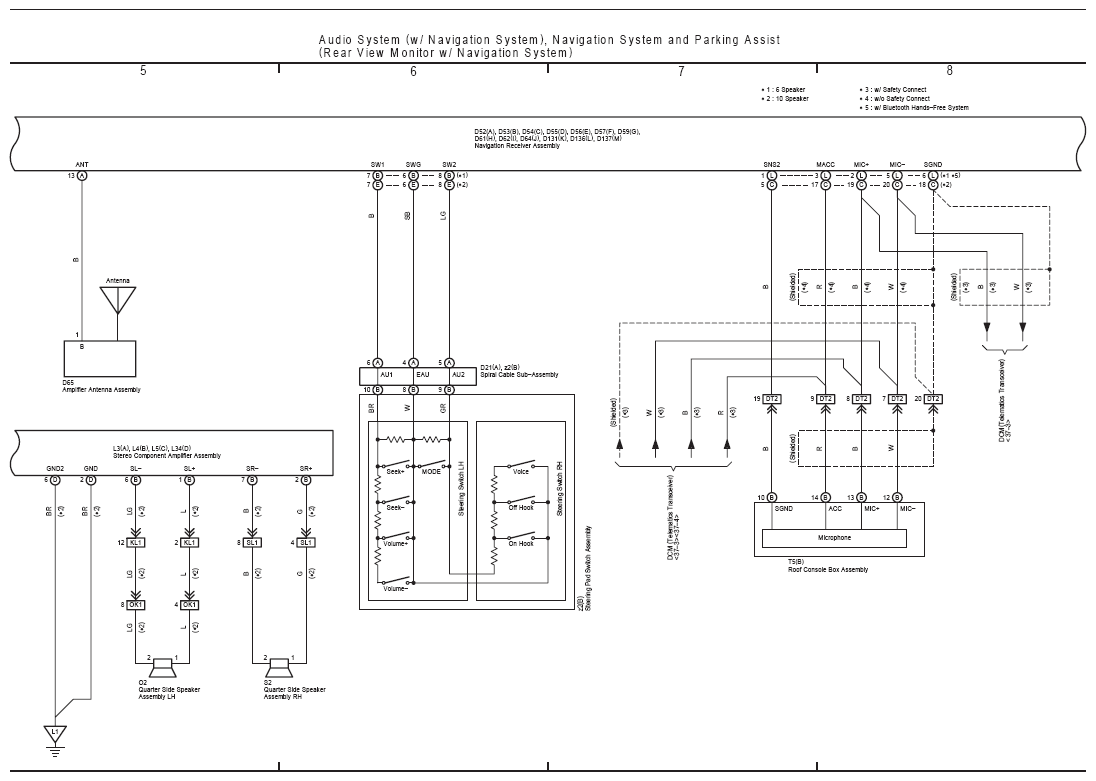

Fig 6: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

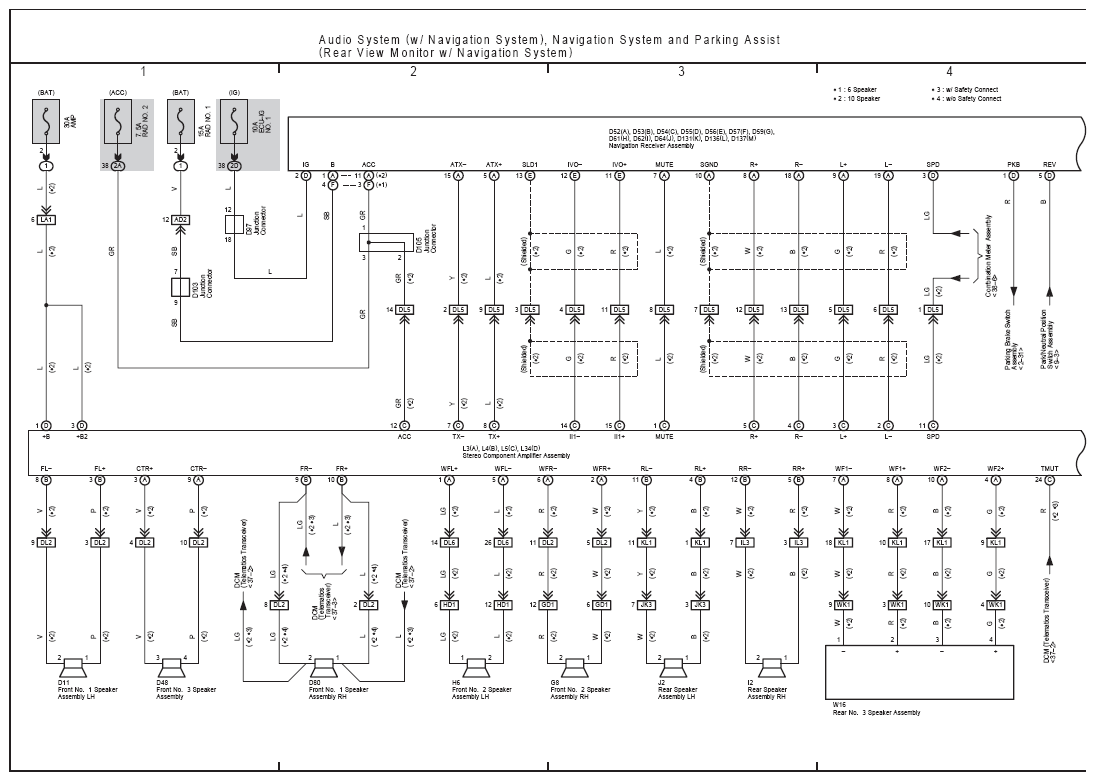

Fig 7: Audio System, Navigation System And Parking Assist (Rear View Monitor W/ Navigation System) Electrical Wiring Diagram (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
