Air Conditioning Wiring Diagrams

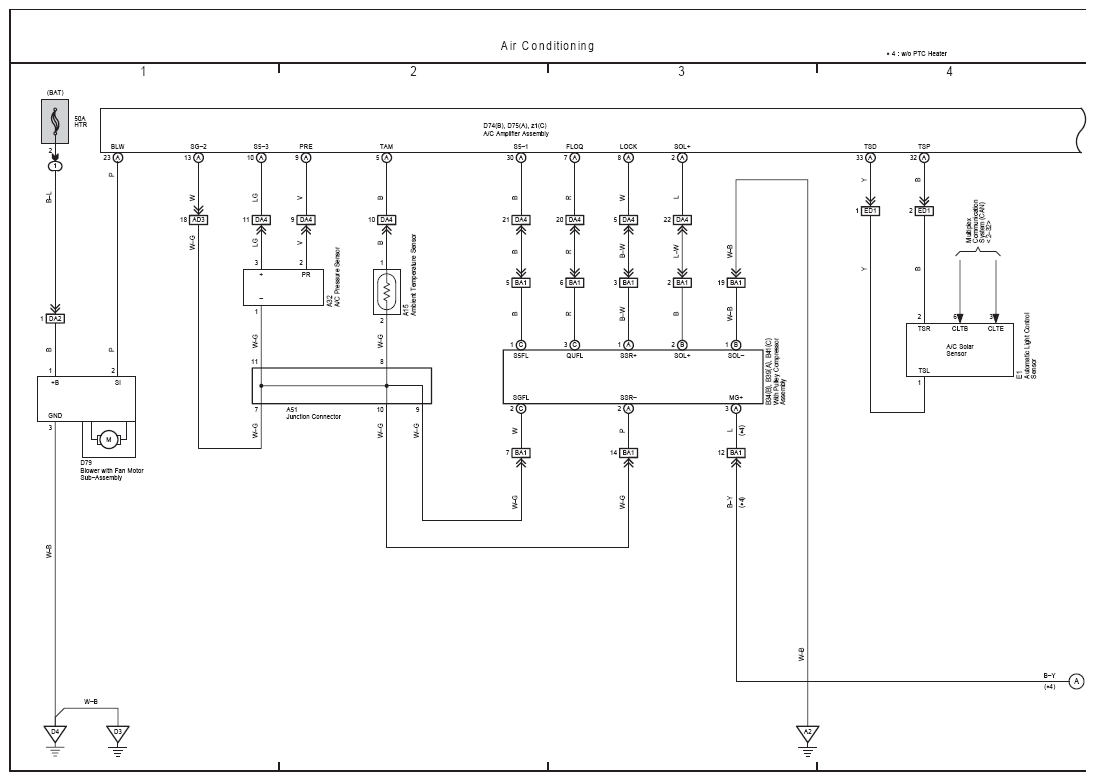

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 5)
G09112434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

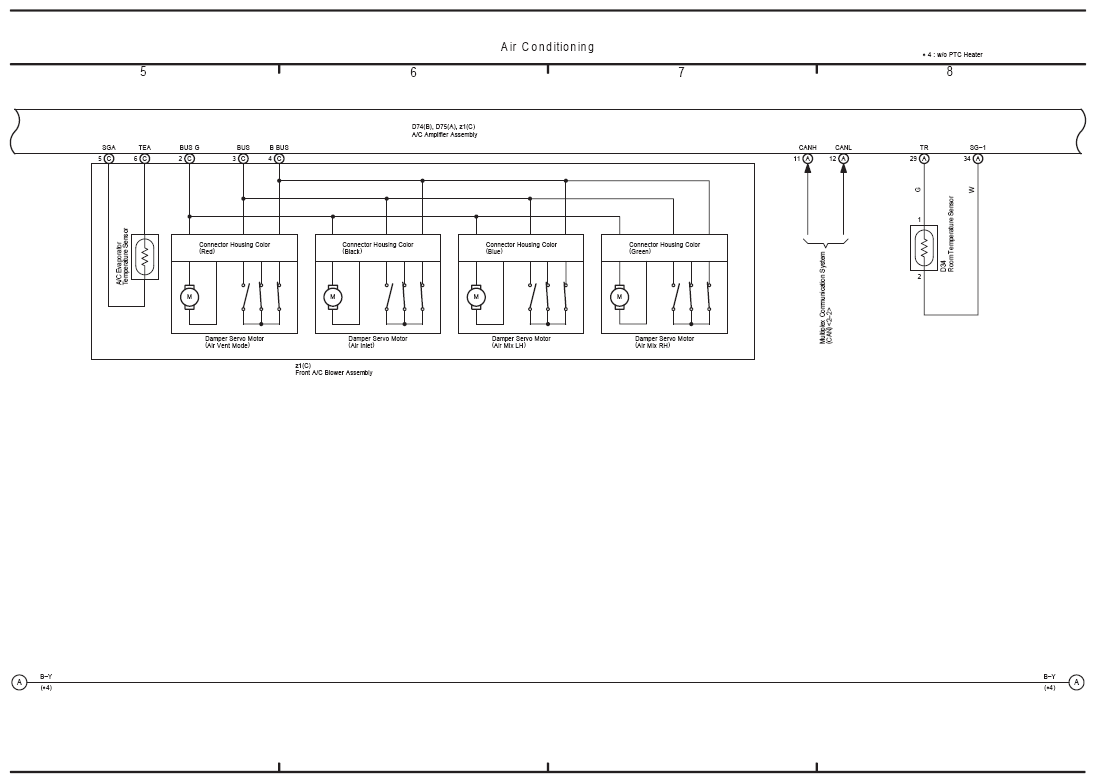

Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 5)
G09112435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

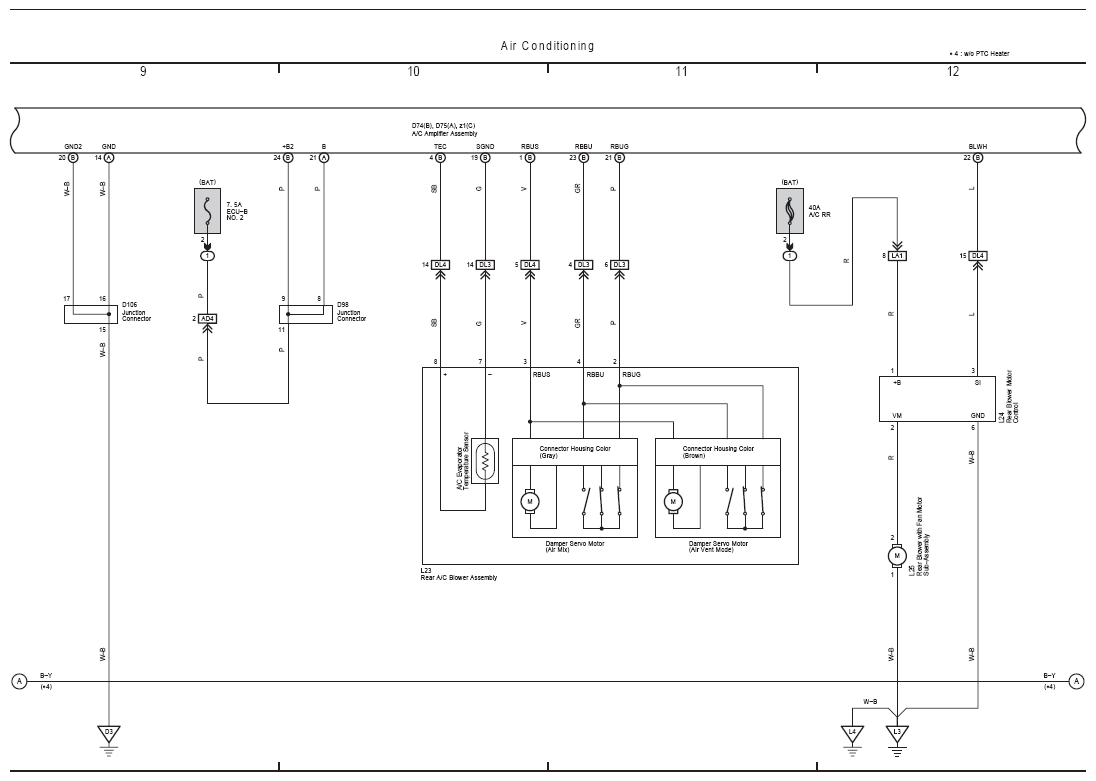

Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 5)
G09112436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

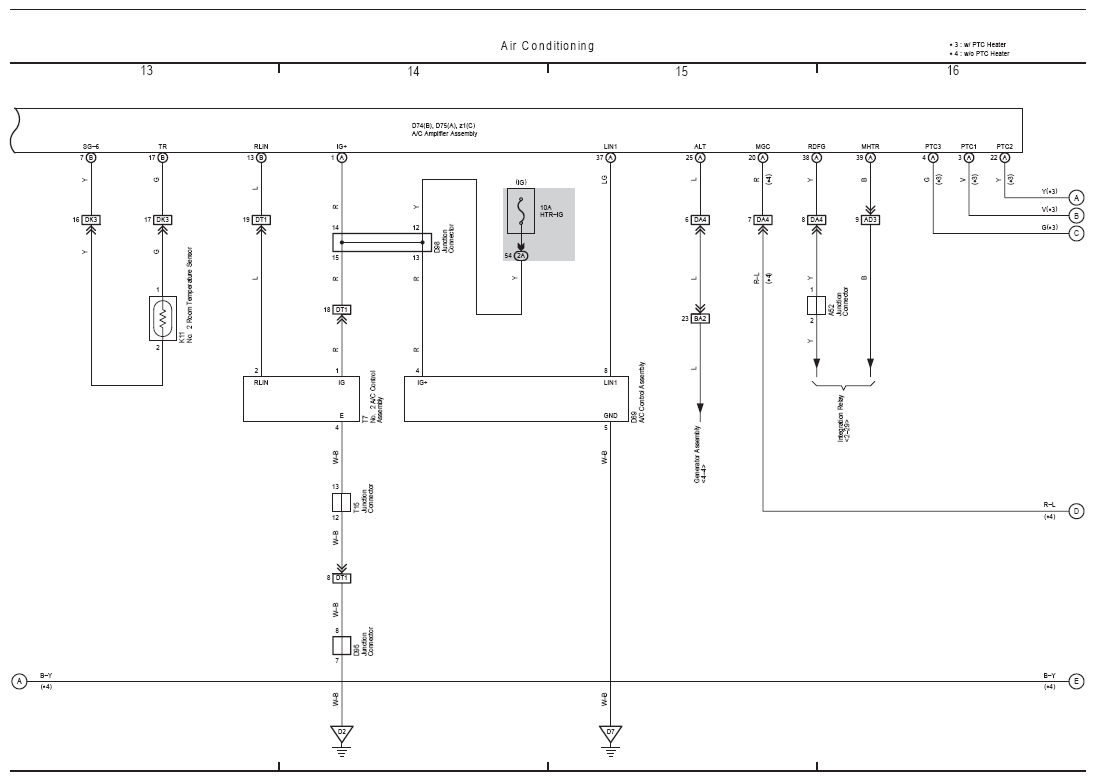

Fig 4: Air Conditioning Electrical Wiring Diagram (4 Of 5)
G09112437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

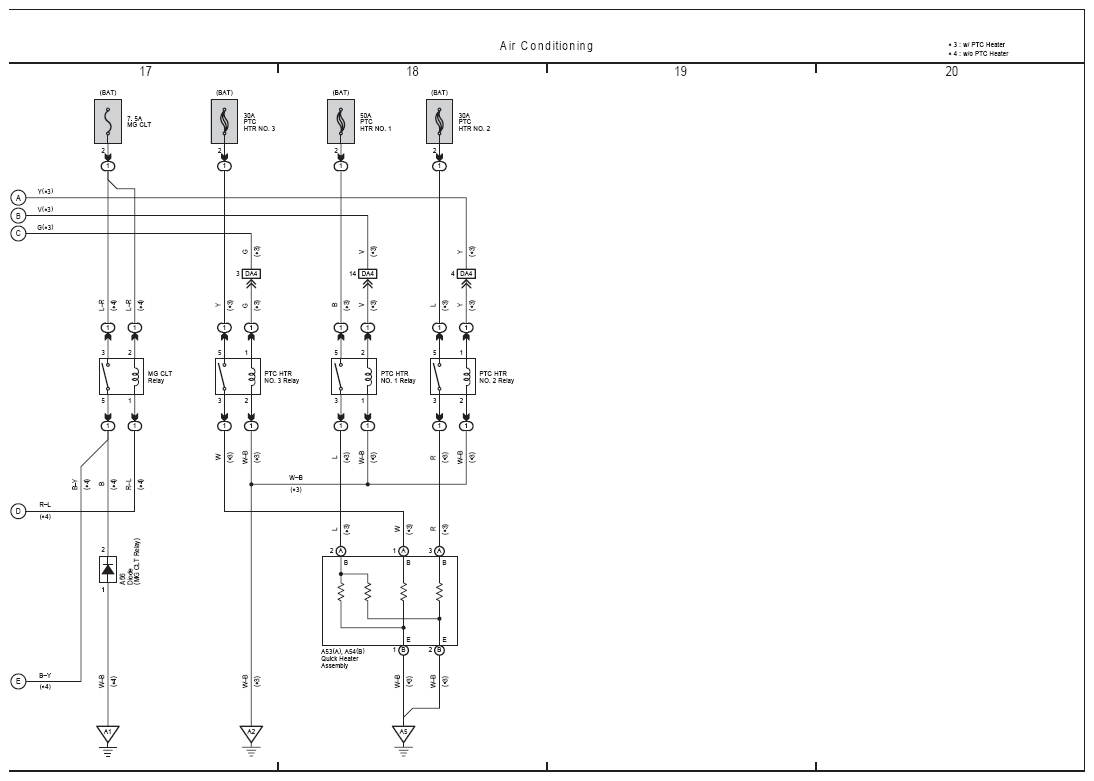

Fig 5: Air Conditioning Electrical Wiring Diagram (5 Of 5)
G09112438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
