Meter Illumination is Always Dark: Wiring Diagram

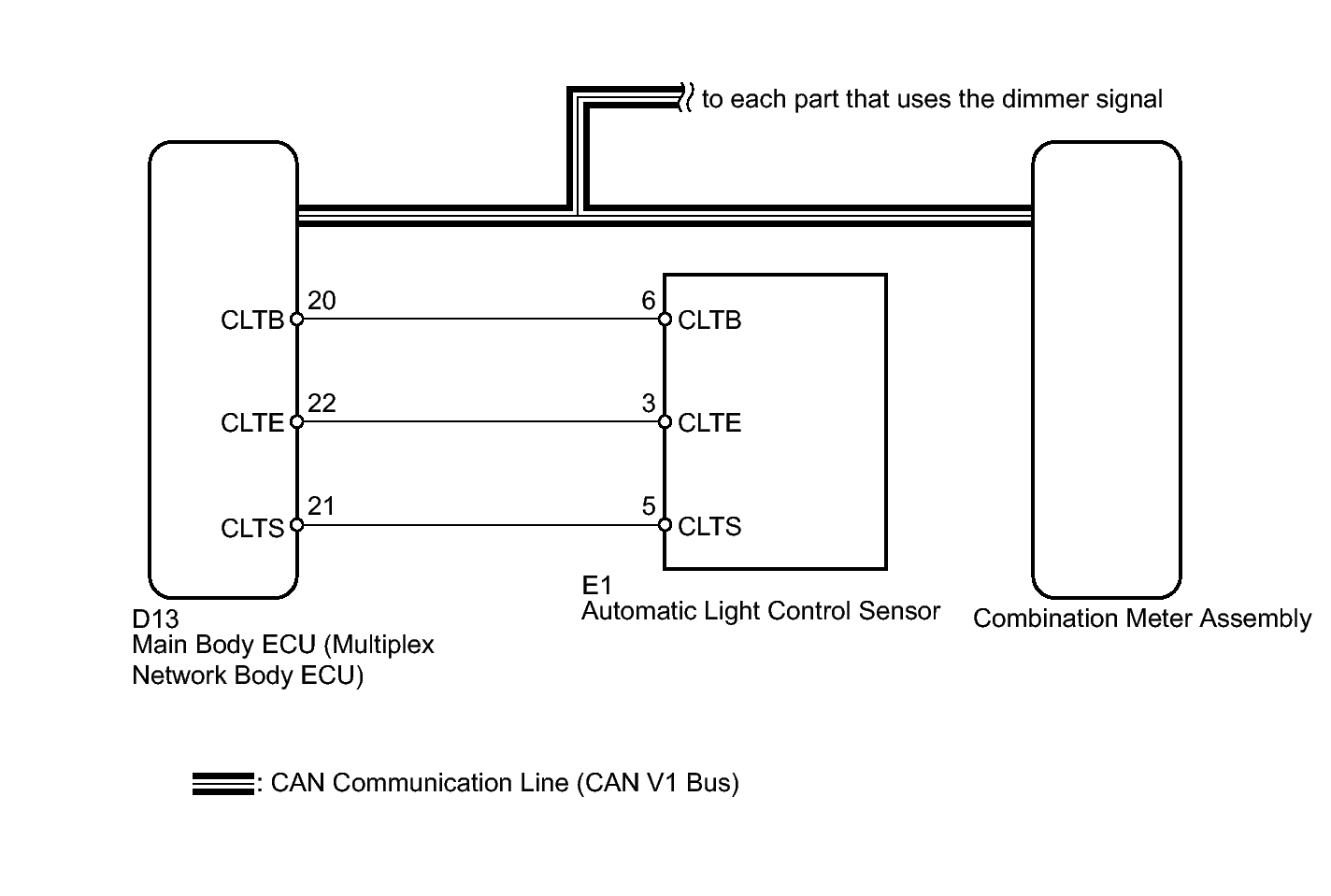

    Fig 1: Meter Illumination Wiring Diagram
    GTY361057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
