RAV4 LE, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Electrical Harness/Wiring Routing (Except Hybrid)
>>
Wire And Wire In Instrument Panel (1 Of 2)
>>
Notes
Wire And Wire In Instrument Panel (1 Of 2): Notes

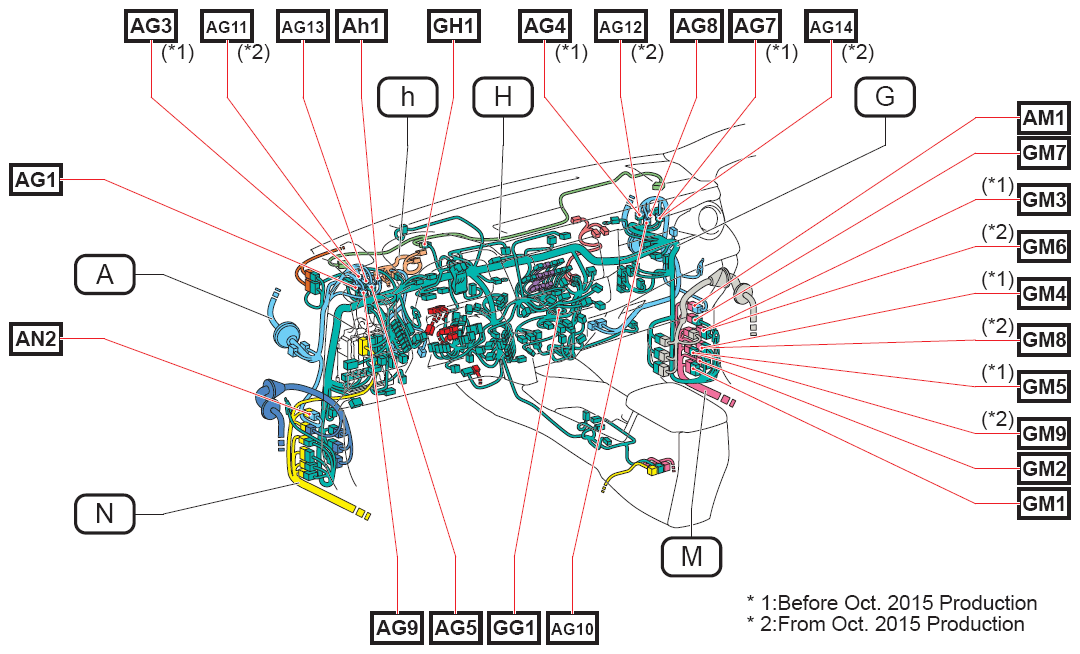

Fig 1: Wire And Wire In Instrument Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
