Ground Points In Engine Compartment (Before Oct. 2015 Production)

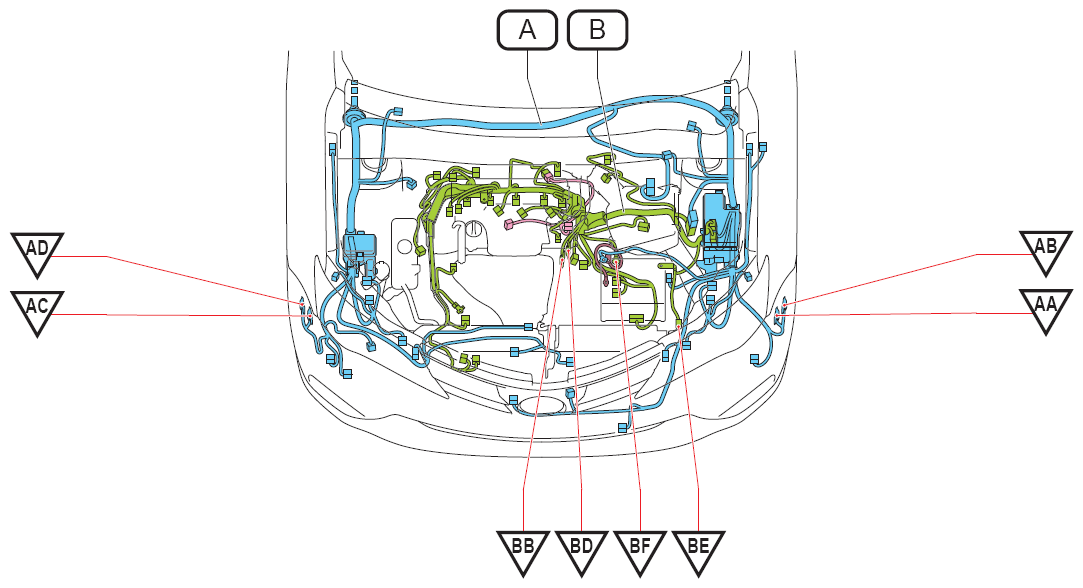

Fig 1: Ground Points In Engine Compartment (Before Oct. 2015 Production)

G12217354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
