Components [12/2012 - ]: Illustration

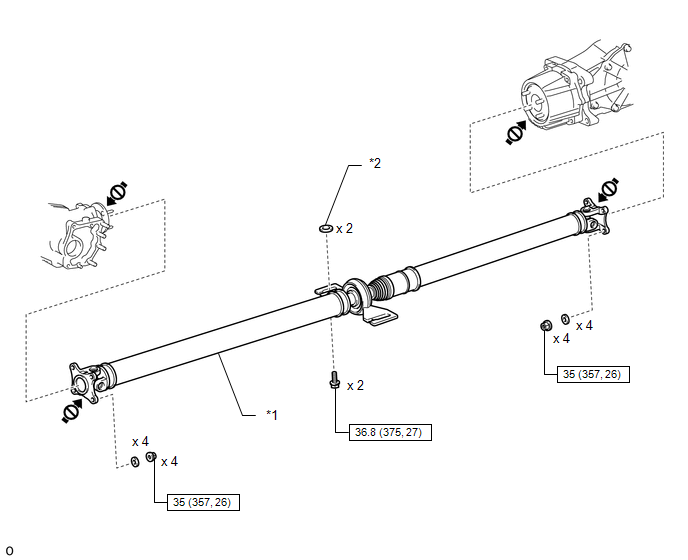

Fig 1: Propeller Shaft Assembly Components With Torque Specifications [12/2012 - ]
GTY365488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY *2 CENTER NO. 2 SUPPORT BEARING WASHER
Specified torque: N*m (kgf*cm, ft.*lbf) Do not apply lubricants
