Removal [12/2012 - ]: Procedure

  1. FRONT WHEELS FACING STRAIGHT AHEAD
  2. REMOVE FRONT WHEELS
  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 6

  4. REMOVE FRONT FLOOR COVER

    Refer to PROCEDURE - Step 9

  5. REMOVE REAR ENGINE UNDER COVER RH
    1. GTY375056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 clips and under cover.

  6. REMOVE REAR ENGINE UNDER COVER LH

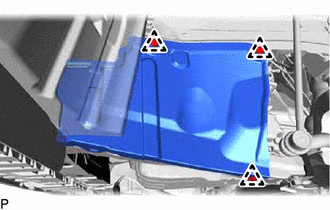

    1. GTY371089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 3 clips and under cover.

  7. SECURE STEERING WHEEL
  8. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 9

  9. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 10

  10. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  11. DISCONNECT FRONT STABILIZER LINK ASSEMBLY LH

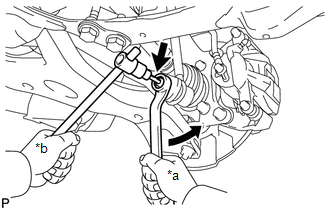

    1. GTY371483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold

      Remove the nut and disconnect the front stabilizer link assembly LH from the front stabilizer bar.

      HINT:

      If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

  12. DISCONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  13. DISCONNECT TIE ROD END SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  14. DISCONNECT TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  15. DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

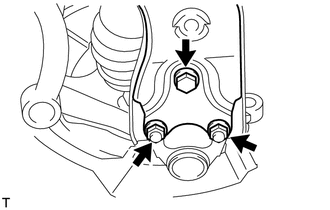

    1. Remove the bolt and 2 nuts.
      GTY313532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the front lower No. 1 suspension arm from the lower ball joint.
  16. DISCONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  17. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH
    1. Remove the 4 bolts and front suspension member reinforcement LH.
      GTY370839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH
    1. Remove the 4 bolts and front suspension member reinforcement RH.
      GTY370835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT SUSPENSION MEMBER REAR BRACE LH

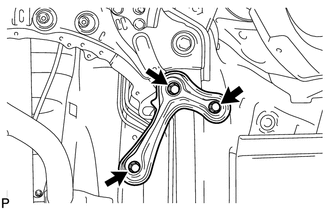

    GTY370742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 bolts and front suspension member rear brace LH.
  20. REMOVE FRONT SUSPENSION MEMBER REAR BRACE RH

    HINT:

    Use the same procedure described for the LH side.

  21. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

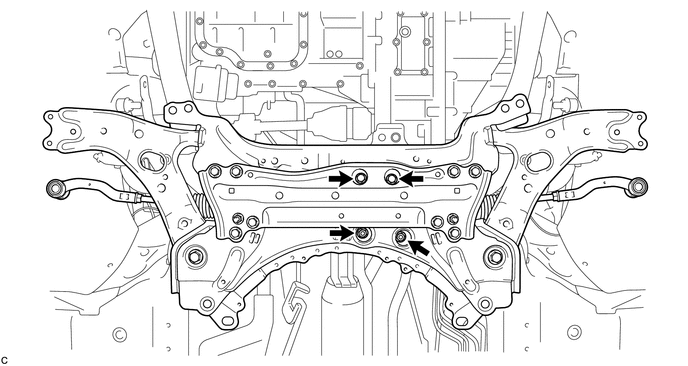

    1. Remove the 2 bolts and 2 nuts, and disconnect the front suspension crossmember sub-assembly from the rear engine mounting insulator.
      GTY350118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

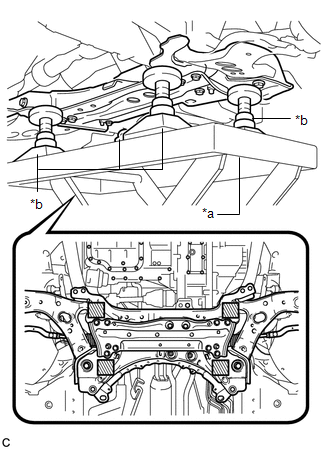

    2. Support the front suspension crossmember sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.
      GTY380732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      Attachment placement location
      NOTE:
      • Make sure to secure the front suspension crossmember sub-assembly to prevent it from dropping.
      • Use the attachments to keep the front suspension crossmember sub-assembly level.
      • The front suspension crossmember sub-assembly is a heavy component. Make sure that it is supported securely.

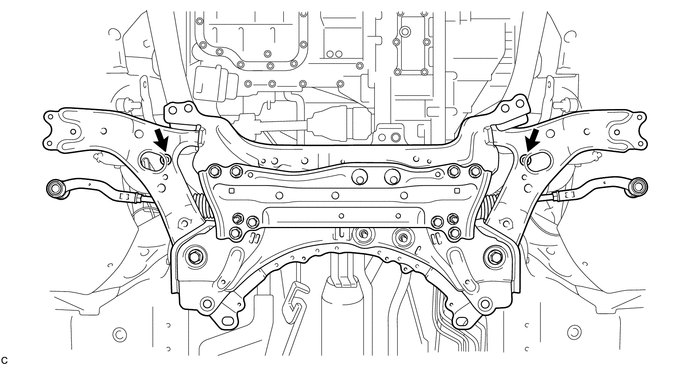

    3. Remove the 2 bolts and front suspension crossmember sub-assembly.
      GTY347523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Slowly lower the front suspension crossmember sub-assembly.
      NOTE:

      When lowering the front suspension crossmember sub-assembly, be careful not to damage the vehicle body or other components installed on the vehicle.

  22. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
    1. Remove the 2 bolts, nut and front lower No. 1 suspension arm sub-assembly LH from the front suspension crossmember sub-assembly.
      GTY370757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
