Removal [12/2012 - ]: Procedure

  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and 2 compression springs.
    2. Disconnect the 2 exhaust pipe supports and remove the tail exhaust pipe assembly.
    3. Remove the gasket from the center exhaust pipe assembly.

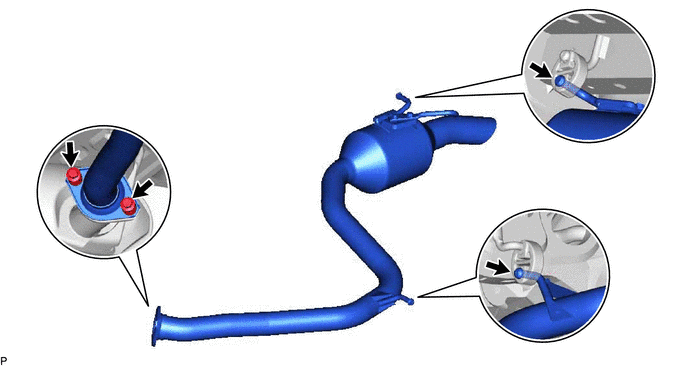

      GTY360866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts.
    2. Disconnect the 3 exhaust pipe supports and remove the center exhaust pipe assembly.

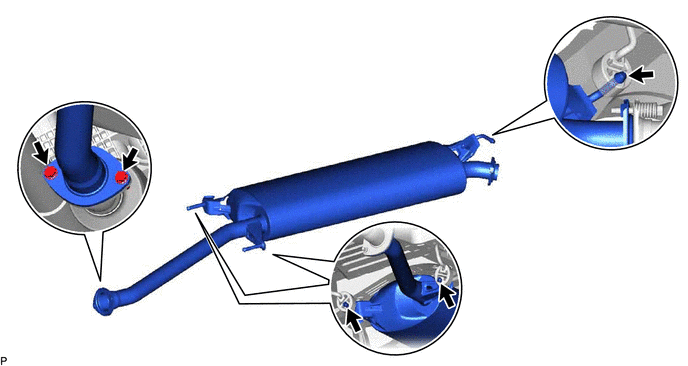

      GTY360846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the front No. 2 exhaust pipe sub-assembly.
  3. REMOVE FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY
    1. Disconnect the heated oxygen sensor connector.

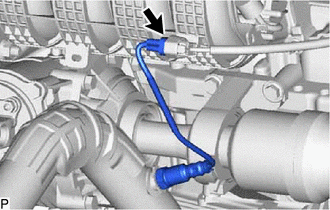

      GTY361323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and front No. 2 exhaust pipe sub-assembly.

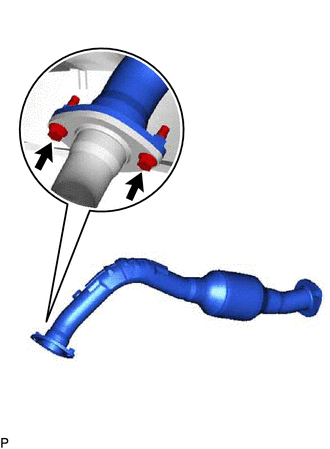

      GTY360880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the front exhaust pipe sub-assembly.
  4. REMOVE FRONT EXHAUST PIPE SUB-ASSEMBLY
    1. Remove the 2 bolts, 2 compression springs and front exhaust pipe sub-assembly.

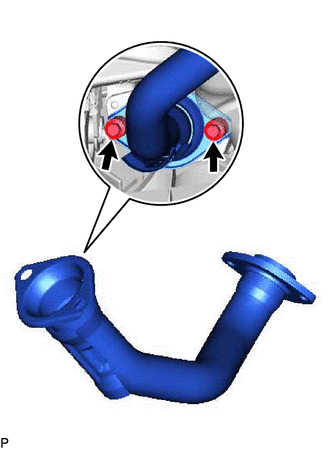

      GTY360879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the exhaust manifold converter sub-assembly.
  5. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

    Refer to PROCEDURE - Step 3
