Components [12/2012 - 10/2015]: Illustration

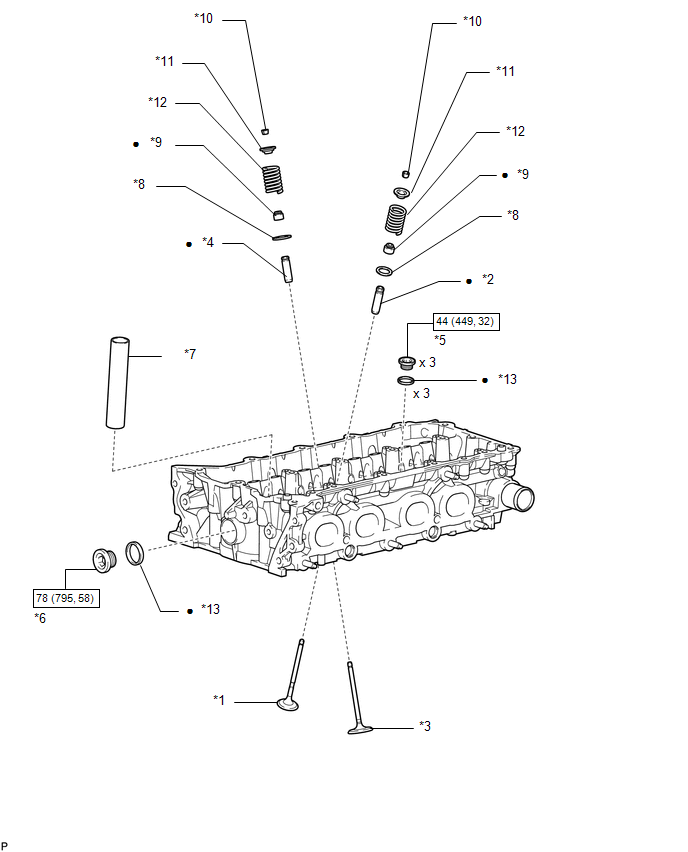

Fig 1: Cylinder Head Components With Torque Specifications [12/2012 - 10/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	EXHAUST VALVE	*2	EXHAUST VALVE GUIDE BUSH
*3	INTAKE VALVE	*4	INTAKE VALVE GUIDE BUSH
*5	NO. 1 STRAIGHT SCREW PLUG	*6	NO. 2 STRAIGHT SCREW PLUG
*7	SPARK PLUG TUBE	*8	VALVE SPRING SEAT
*9	VALVE STEM OIL SEAL	*10	VALVE SPRING RETAINER LOCK
*11	VALVE SPRING RETAINER	*12	COMPRESSION SPRING
*13	GASKET	-	-
	Specified torque: N*m (kgf*cm, ft.*lbf)	•	Non-reusable part
*	Precoated part	-	-
