Installation [12/2012 - ]: Procedure

  1. INSTALL REAR ENGINE OIL SEAL
    1. Apply MP grease to the lip of a new oil seal.
      NOTE:
      • Do not allow foreign matter to contact the lip of the oil seal.
      • Do not allow MP grease to contact the dust seal.

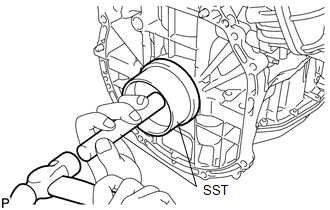

    2. Using SST and a hammer, tap in the oil seal until its surface is flush with the edges of the cylinder block and crankcase.
      GTY374001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09223-15030
      • SST: 09950-70010
        1. 09951-07150
      NOTE:
      • Keep the lip of the oil seal free from foreign matter.
      • Do not tap in the oil seal at an angle.
  2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

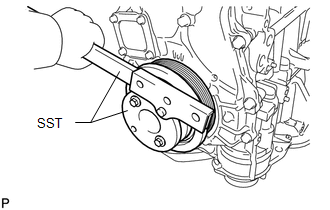

    1. Using SST, hold the crankshaft.
      GTY365765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-54015
      • SST: 09330-00021

      HINT:

      Part number of installation bolt for SST (crankshaft pulley holding tool): 91551-80650 (quantity: 2)

    2. Clean the bolts and their installation holes.
    3. Install the front drive plate spacer.
      GTY195051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Align the pin of the front drive plate spacer with the pin hole of the crankshaft.

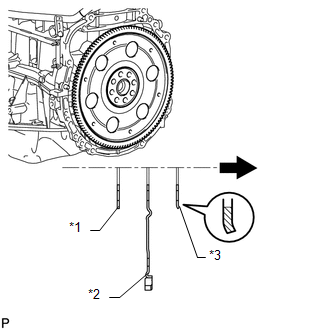

    4. Install the drive plate and ring gear sub-assembly and rear drive plate spacer to the crankshaft.
      GTY379988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Drive Plate Spacer
      *2 Drive Plate and Ring Gear
      *3 Rear Drive Plate Spacer
      Transaxle Side

      HINT:

      • The front drive plate spacer is reversible.
      • As the rear drive plate spacer and the drive plate and ring gear are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.
    5. Apply a few drops of adhesive to 2 or 3 threads at the end of the bolt.
      GTY368395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Adhesive

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

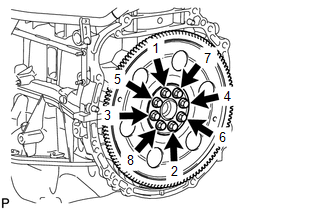

    6. Install and uniformly tighten the 8 bolts in the sequence shown in the illustration.

      Torque: 98 N*m (999 kgf*cm, 72 ft.*lbf)

      Fig 1: Flywheel Drive Plate And Ring Gear Bolts Tightening Sequence
      GTY380511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not start the engine for at least an hour after installing the drive plate.

  3. FIX ENGINE ASSEMBLY

    See step  67

  4. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
  5. INSTALL ENGINE AND TRANSAXLE

    Refer to INSTALLATION [12/2012 - ]
