Removal [12/2012 - ]: Procedure

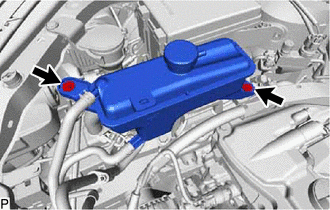

  1. DISCONNECT RADIATOR RESERVOIR ASSEMBLY
    1. Remove the 2 bolts and disconnect the radiator reservoir assembly.
      GTY370940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

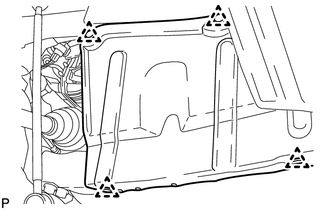

  2. REMOVE REAR ENGINE UNDER COVER RH
    1. Remove the 4 clips and rear engine under cover RH.
      GTY375057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FAN AND GENERATOR V BELT
    1. Attach a wrench to the hexagonal portion of the belt tensioner as shown in the illustration, rotate the belt tensioner clockwise, and remove the fan and generator V belt.
      GTY174468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
