Removal [12/2012 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [12/2012 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - ]

  3. REMOVE FAN AND GENERATOR V BELT

    Refer to REMOVAL [12/2012 - ]

  4. REMOVE WIRE HARNESS CLAMP BRACKET

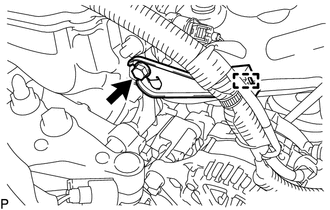

    GTY381330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the wire harness clamp from the clamp bracket.
    2. Remove the bolt and clamp bracket.
  5. REMOVE GENERATOR ASSEMBLY
    1. Disconnect the generator connector.

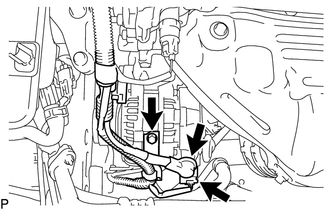

      GTY362024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the terminal cap.
    3. Remove the nut and disconnect the generator wire.
    4. Remove the bolt and wire harness clamp bracket.
    5. Remove the 2 bolts and generator assembly.

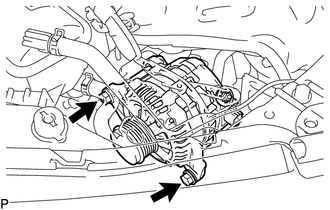

      GTY362023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
