On-Vehicle Inspection [12/2012 - ]: Procedure

  1. REMOVE FRONT WHEEL
  2. DISCONNECT FRONT FLEXIBLE HOSE

    See step  4

  3. DISCONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH

    See step  5

  4. REMOVE FRONT DISC

    Refer to PROCEDURE - Step 15

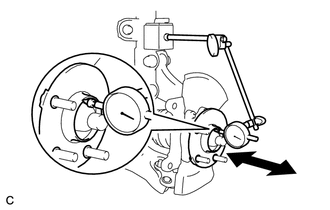

  5. INSPECT FRONT AXLE HUB BEARING LOOSENESS
    GTY158669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a dial indicator, check for looseness near the center of the front axle hub sub-assembly.

      Maximum

      0.05 mm (0.00197 in.)

      NOTE:

      Make sure that the dial indicator is set perpendicular to the measurement surface.

      If the looseness is more than the maximum, replace the front axle hub sub-assembly.

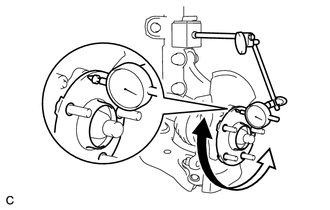

  6. INSPECT FRONT AXLE HUB RUNOUT
    GTY158668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a dial indicator, check for runout on the surface of the front axle hub sub-assembly outside the front hub bolt.

      Maximum

      0.05 mm (0.00197 in.)

      NOTE:

      Make sure that the dial indicator is set perpendicular to the measurement surface.

      If the runout is more than the maximum, replace the front axle hub sub-assembly.

  7. INSTALL FRONT DISC

    Refer to PROCEDURE - Step 1

  8. CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH

    See step  6 [12/2012 - 08/2016], or see step  13[08/2016 - ]

  9. CONNECT FRONT FLEXIBLE HOSE

    See step  14 [12/2012 - 08/2016], or see step  14[08/2016 - ]

  10. INSTALL FRONT WHEEL

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
