Removal [10/2015 - 08/2016]: Procedure

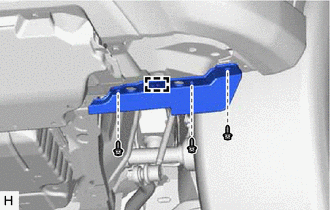

  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH
    1. Remove the 3 screws.
      GTY541322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the front fender front splash shield LH.
  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE FRONT BUMPER COVER

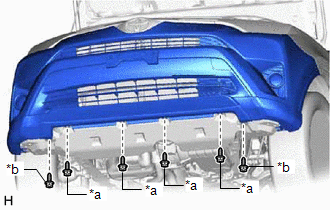

    1. for Standard:
      GTY563076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Screw
      1. Remove the 4 bolts.
      2. Remove the 2 screws.

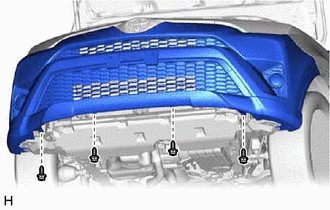

    2. except Standard:
      GTY541082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 screws.

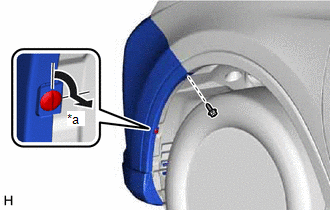

    3. Using a screwdriver, turn the pin hold clip 90° and remove the pin hold clip and screw.
      GTY601357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°

      HINT:

      Use the same procedure for the other side.

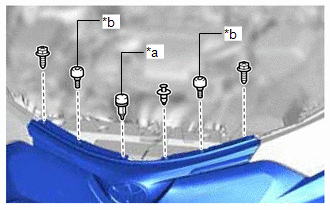

    4. Remove the center hood cushion and 2 radiator grille protectors.
      GTY579124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Center Hood Cushion
      *b Radiator Grille Protector
    5. Remove the 2 bolts and clip.

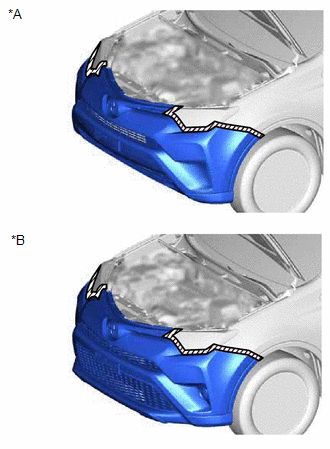

    6. Put protective tape around the front bumper cover.
      GTY571181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Standard
      *B except Standard
      Protective Tape

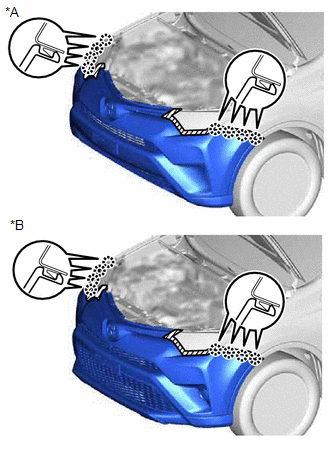

    7. Detach the 8 claws and remove the front bumper cover.
      GTY592281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Standard
      *B except Standard
    8. w/ Fog Light:

      Disconnect the 2 fog light connectors.

    9. w/ Pre-collision System, w/ Intuitive Parking Assist System:

      Disconnect the No. 3 engine room wire connector.

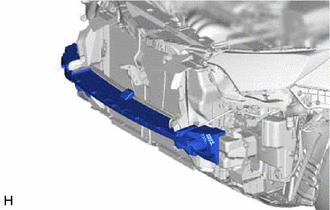

  4. REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER
    1. Remove the front bumper No. 2 energy absorber.
      GTY541318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HIGH PITCHED HORN ASSEMBLY

    Refer to REMOVAL [12/2012 - ]

  6. REMOVE LOW PITCHED HORN ASSEMBLY

    Refer to REMOVAL [12/2012 - ]

  7. REMOVE COOLER (AMBIENT TEMPERATURE SENSOR) THERMISTOR

    Refer to REMOVAL [12/2012 - ]

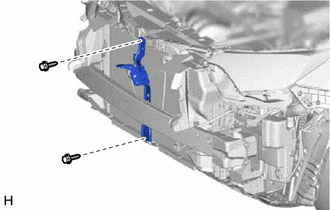

  8. REMOVE FRONT BUMPER CENTER STAY SUB-ASSEMBLY
    1. Remove the 2 bolts and front bumper center stay sub-assembly.
      GTY541319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

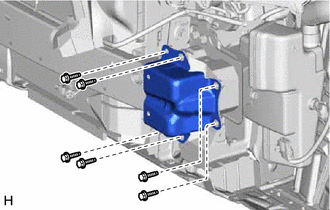

  9. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET ASSEMBLY LH
    1. Remove the 6 bolts and front bumper side mounting bracket assembly LH.
      GTY541320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

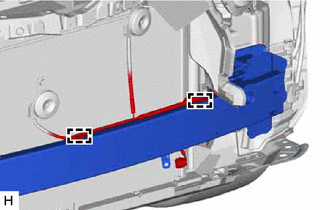

  10. REMOVE FRONT BUMPER REINFORCEMENT
    1. GTY598117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the 2 clamps.

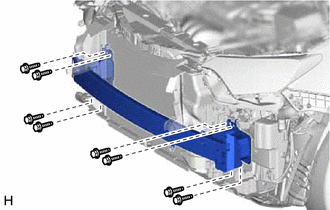

    2. Remove the 8 bolts and front bumper reinforcement.
      GTY541321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HEADLIGHT ASSEMBLY LH
    1. for Halogen Headlight:

      Refer to REMOVAL [10/2015 - ]

    2. for LED Headlight:

      Refer to REMOVAL [10/2015 - ]

  12. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

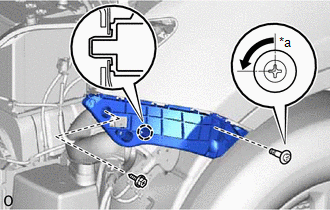

  13. REMOVE FRONT BUMPER SIDE RETAINER LH
    GTY564756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a 90°
    1. Using a screwdriver, turn the clip 90° and remove the clip.
    2. Remove the screw.
    3. Detach the claw and remove the front bumper side retainer LH.
  14. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure described for the LH side.

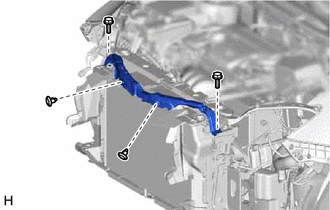

  15. REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 2 clips.
      GTY598115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and front bumper upper reinforcement sub-assembly.
