Adjustment [12/2012 - ]: Procedure

  1. ADJUST HOOD SUB-ASSEMBLY

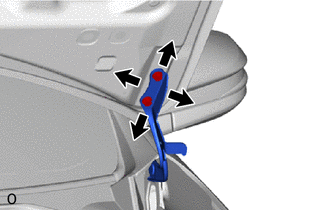

    1. Adjust the hood position.
      GTY378872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the 4 hinge bolts on the hood and adjust the hood position.
      2. Move the hood and adjust the clearance between the hood and front fender.
      3. Tighten the 4 hinge bolts on the hood after the adjustment.

        Torque: 13 N*m (133 kgf*cm, 9.6 ft.*lbf)

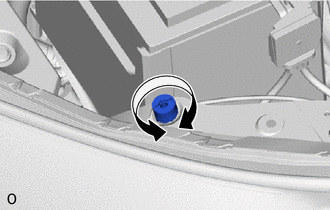

    2. Adjust the cushion rubbers so that the hood and fender are aligned.
      GTY378875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Raise or lower the front end of the hood by turning the cushion rubber.

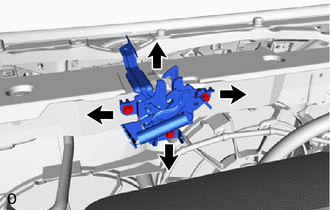

    3. Adjust the hood lock.
      GTY378877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the 3 bolts.
      2. Adjust the hood lock position so that the striker can enter it smoothly.
      3. Tighten the 3 bolts after the adjustment.

        Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
