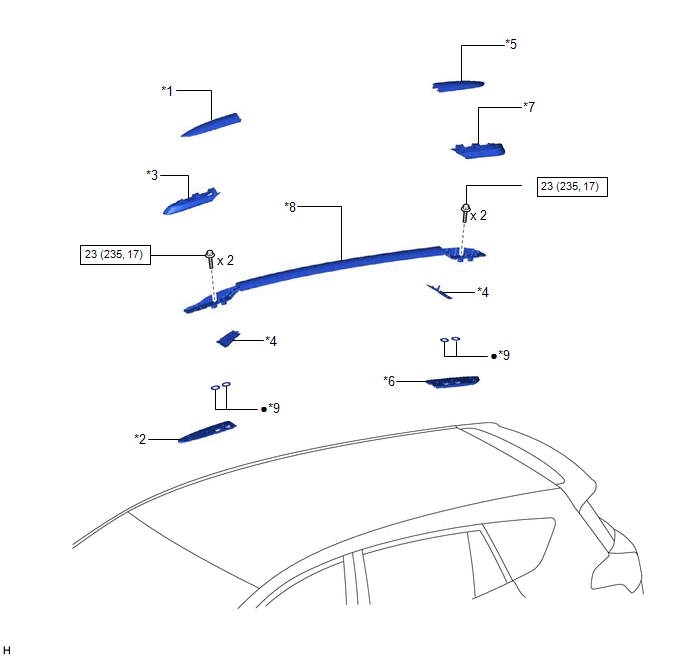

Components [12/2012 - ]
| Callout | Description | Callout | Description |
| *1 | FRONT ROOF RACK LEG COVER LH | *2 | FRONT ROOF RACK LEG CUSHION LH |
| *3 | FRONT ROOF RACK LOWER COVER LH | *4 | NO. 2 ROOF RACK END COVER |
| *5 | REAR ROOF RACK LEG COVER LH | *6 | REAR ROOF RACK LEG CUSHION LH |
| *7 | REAR ROOF RACK LOWER COVER LH | *8 | ROOF RACK ASSEMBLY LH |
| *9 | NO. 2 ROOF CARRIER SEAL | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
