Components [12/2012 - 10/2015]

Fig 1: Rear Bumper Components With Torque Specifications [12/2012 - 10/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR BUMPER ARM SUB-ASSEMBLY LH	*2	REAR BUMPER ARM SUB-ASSEMBLY RH
*3	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY	*4	REAR BUMPER SIDE SUPPORT LH
*5	REAR BUMPER SIDE SUPPORT RH	*6	REAR BUMPER UPPER RETAINER LH
*7	REAR BUMPER UPPER RETAINER RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Rear Bumper Components [12/2012 - 10/2015] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

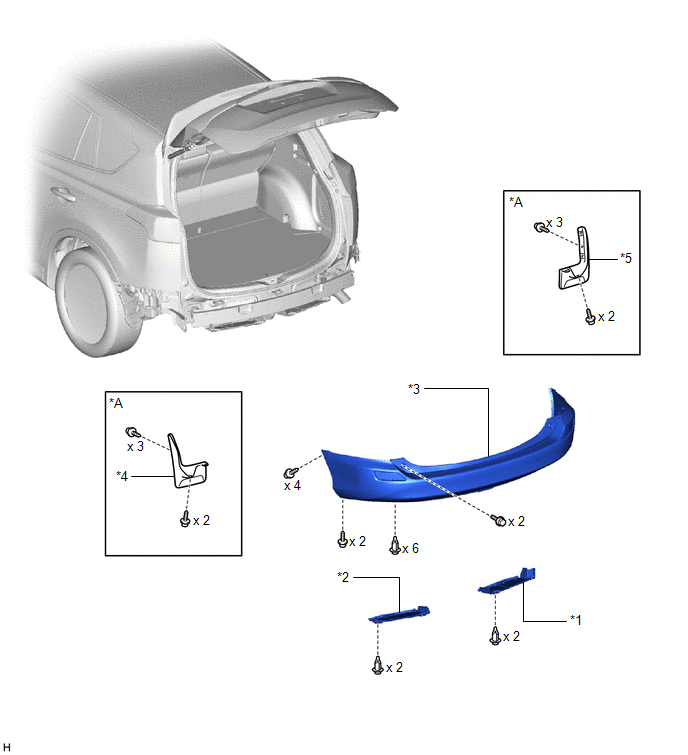

Fig 3: Rear Bumper Components [12/2012 - 10/2015] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

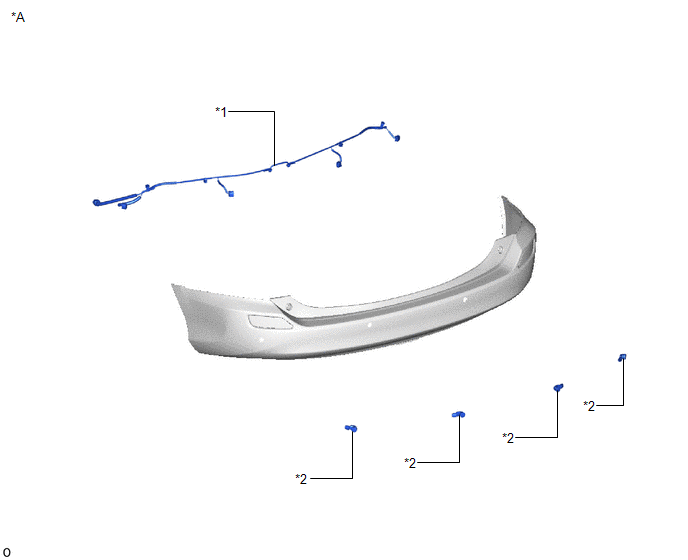

*A	w/ TOYOTA Parking Assist-sensor System	-	-
*1	NO. 2 LUGGAGE ROOM WIRE	*2	NO. 3 ULTRASONIC SENSOR

Fig 4: Rear Bumper Components [12/2012 - 10/2015] (3 Of 3)

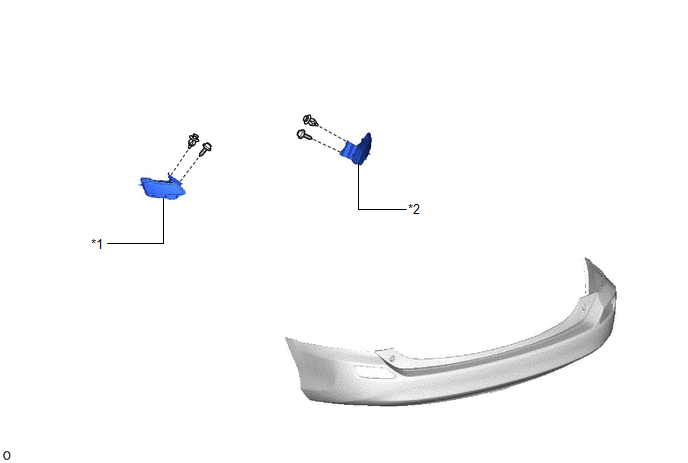

REFLEX REFLECTOR ASSEMBLY LH

REFLEX REFLECTOR ASSEMBLY RH
