Brake Pedal: Components: Illustration

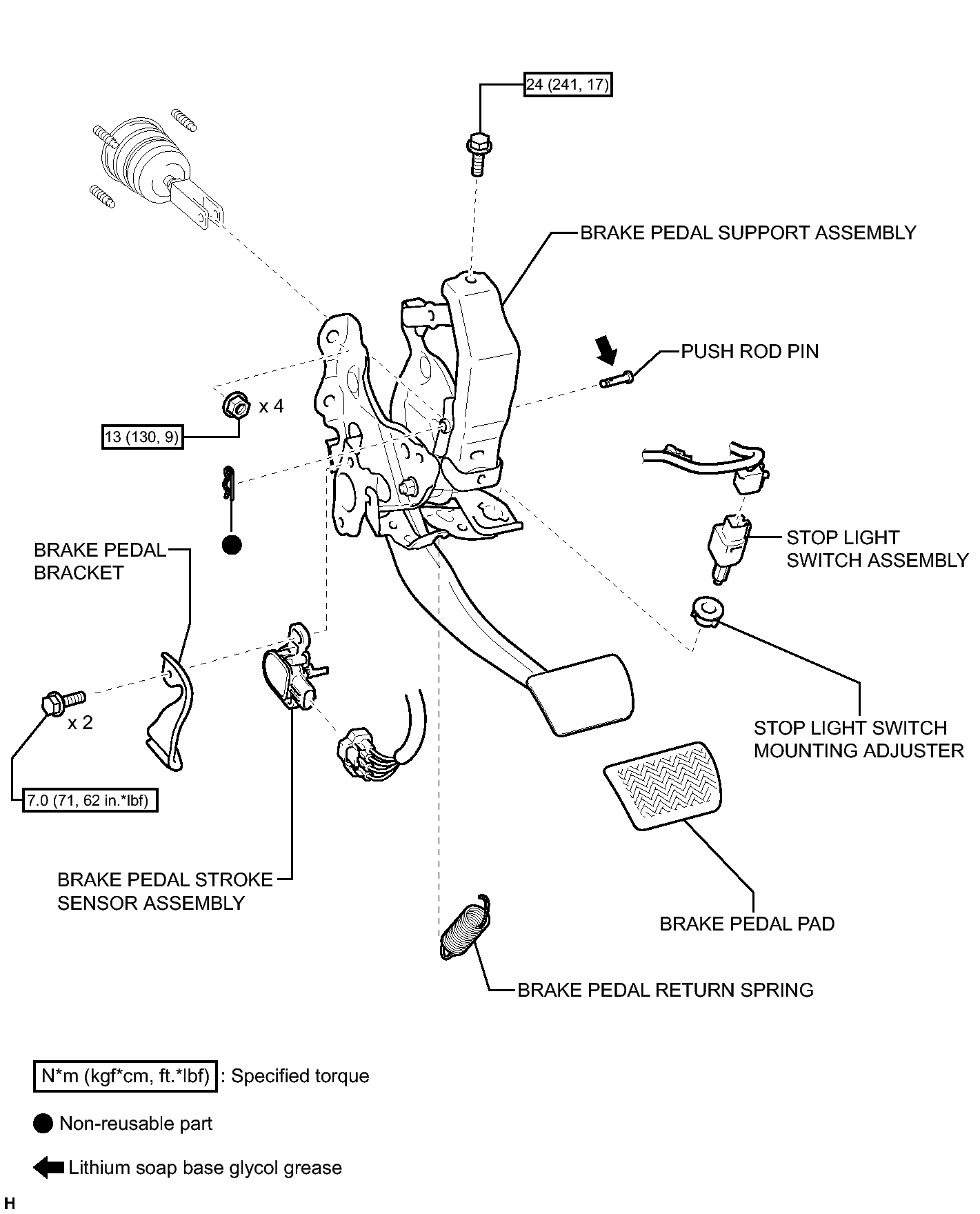

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications

GTY377163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
