Brake Booster: Components: Illustration

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (1 Of 2)
GTY369223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

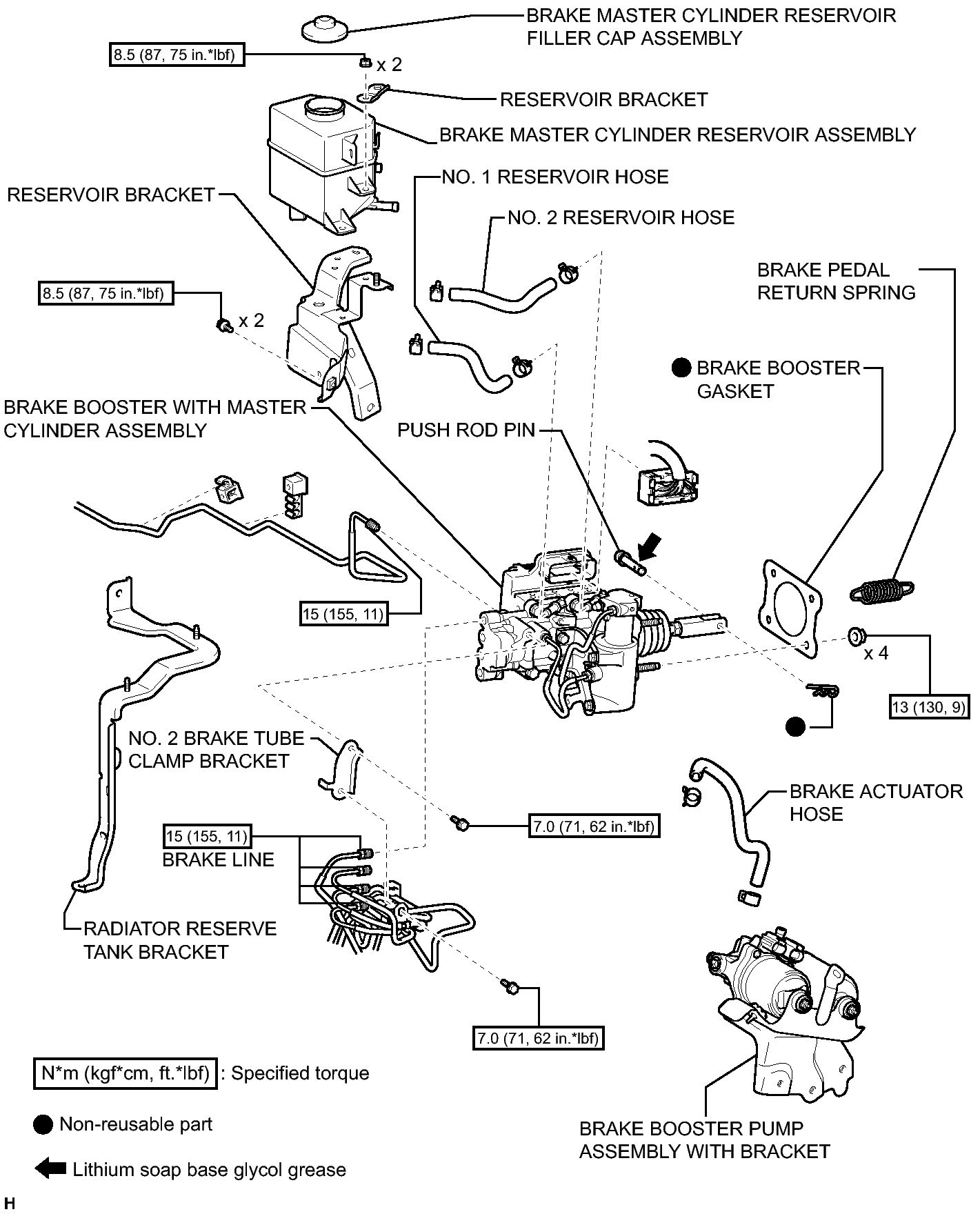

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (2 Of 2)
GTY370548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
