Rear Door: Components: Illustration

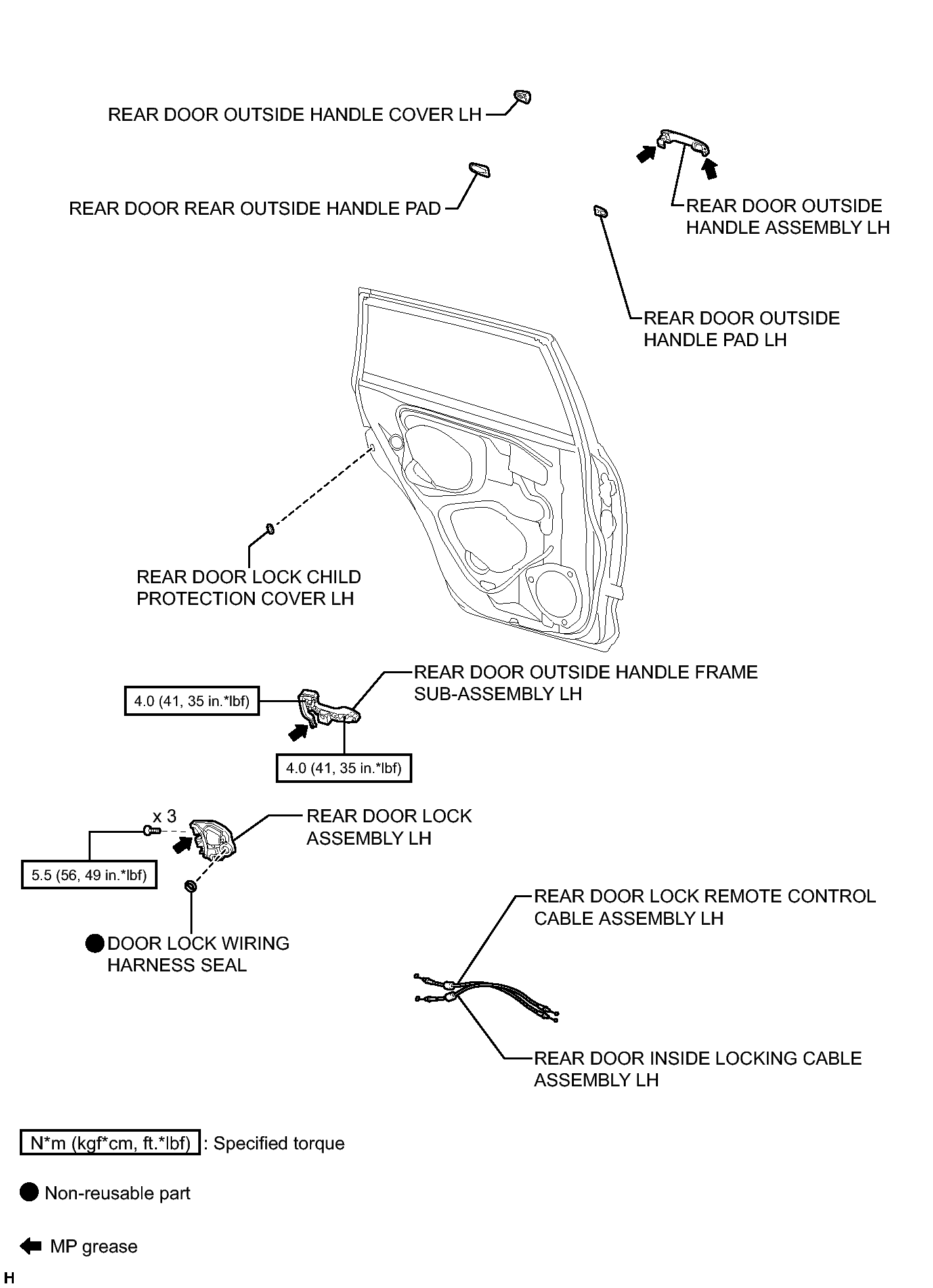

Fig 1: Rear Door Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

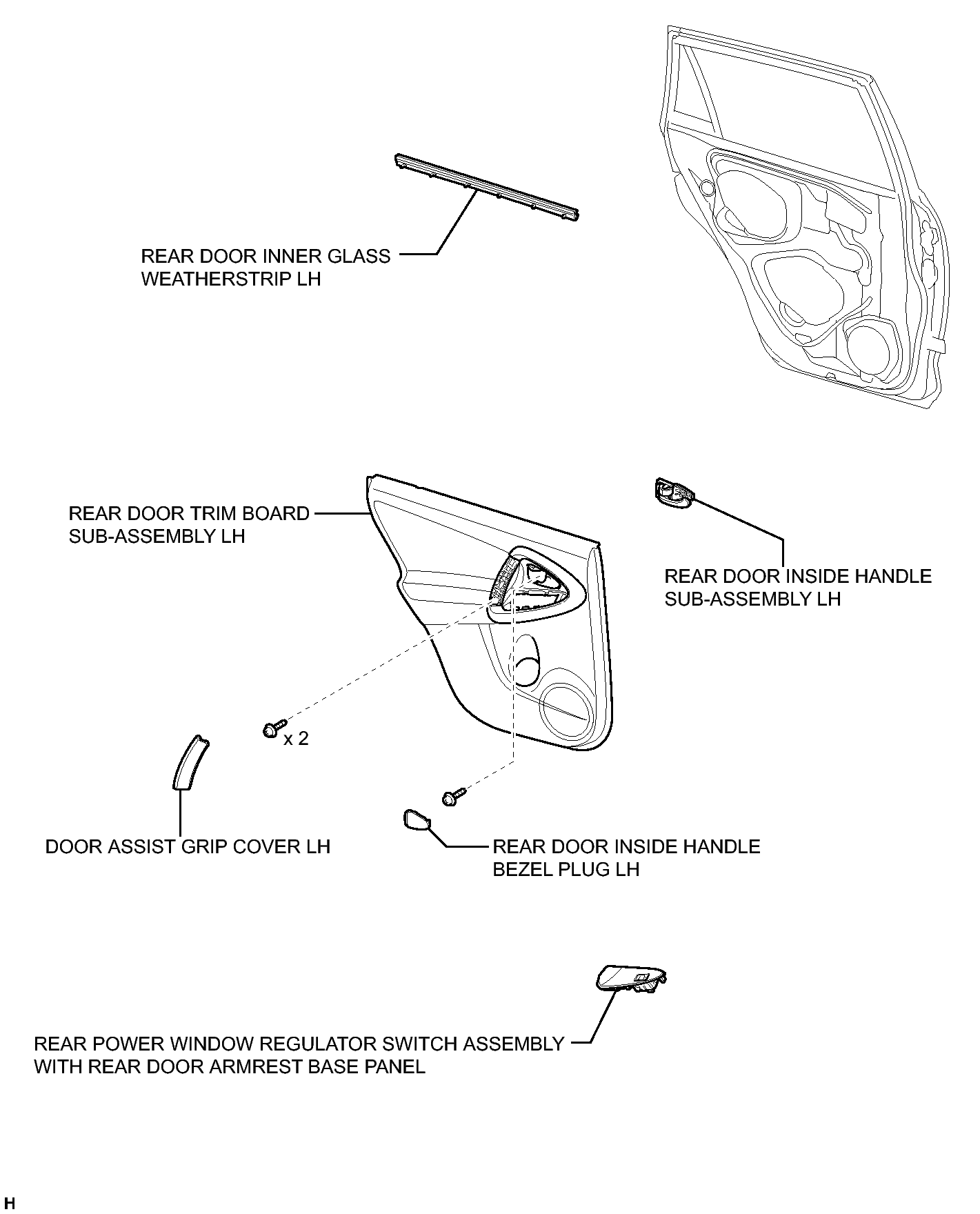

Fig 1: Rear Door Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

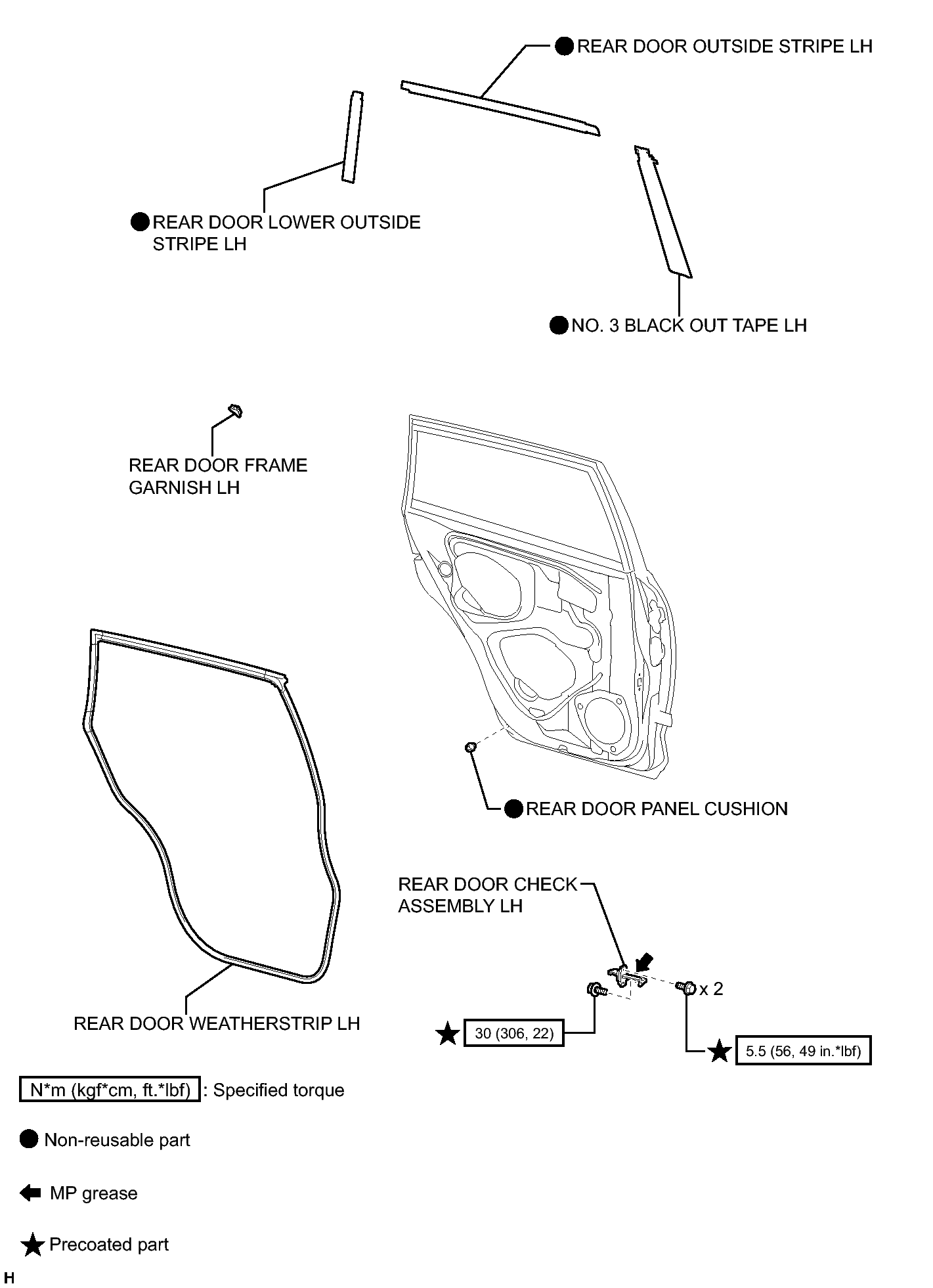

Fig 1: Rear Door Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

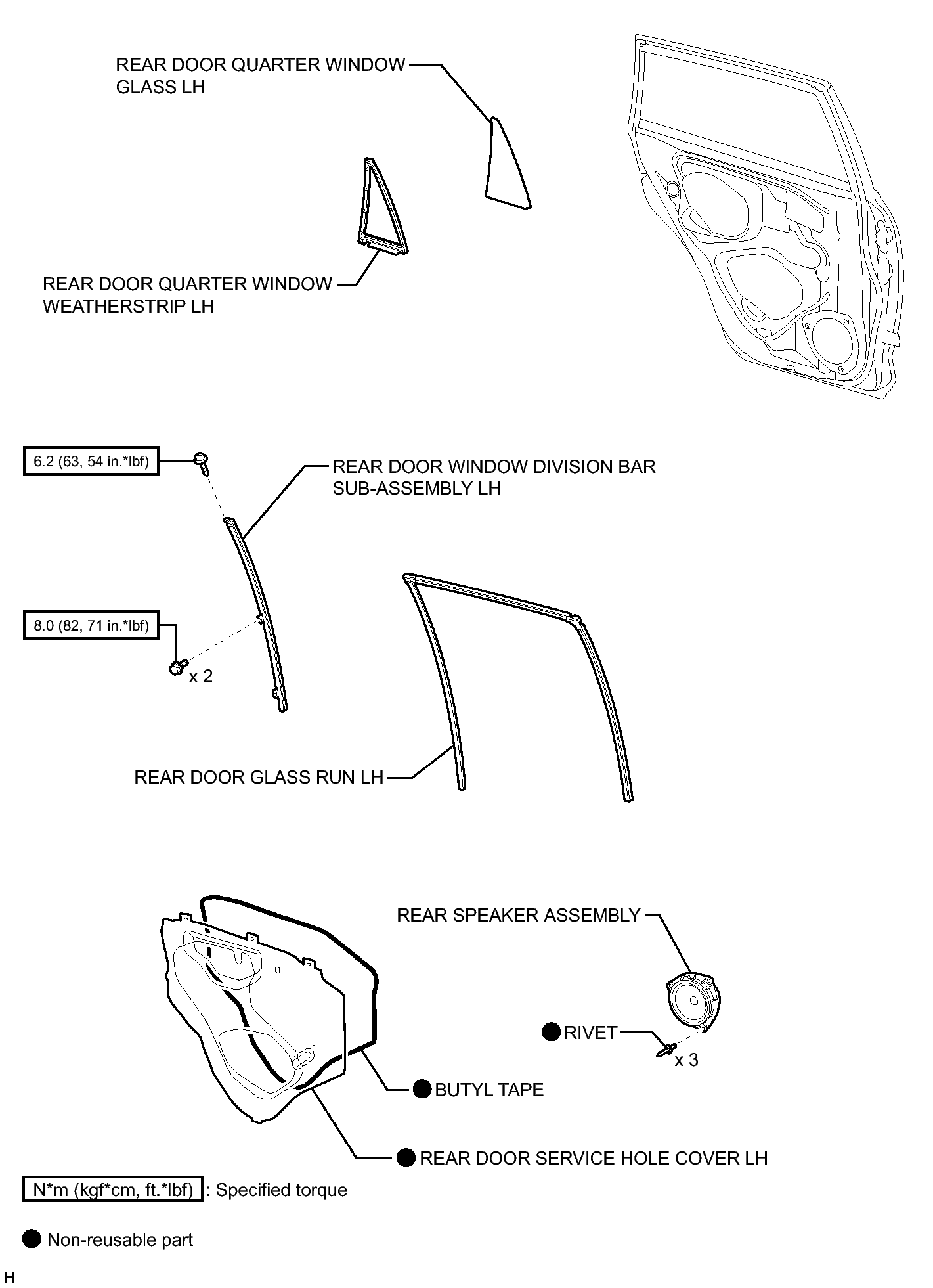

Fig 1: Rear Door Replacement Components With Torque Specifications (4 Of 5)

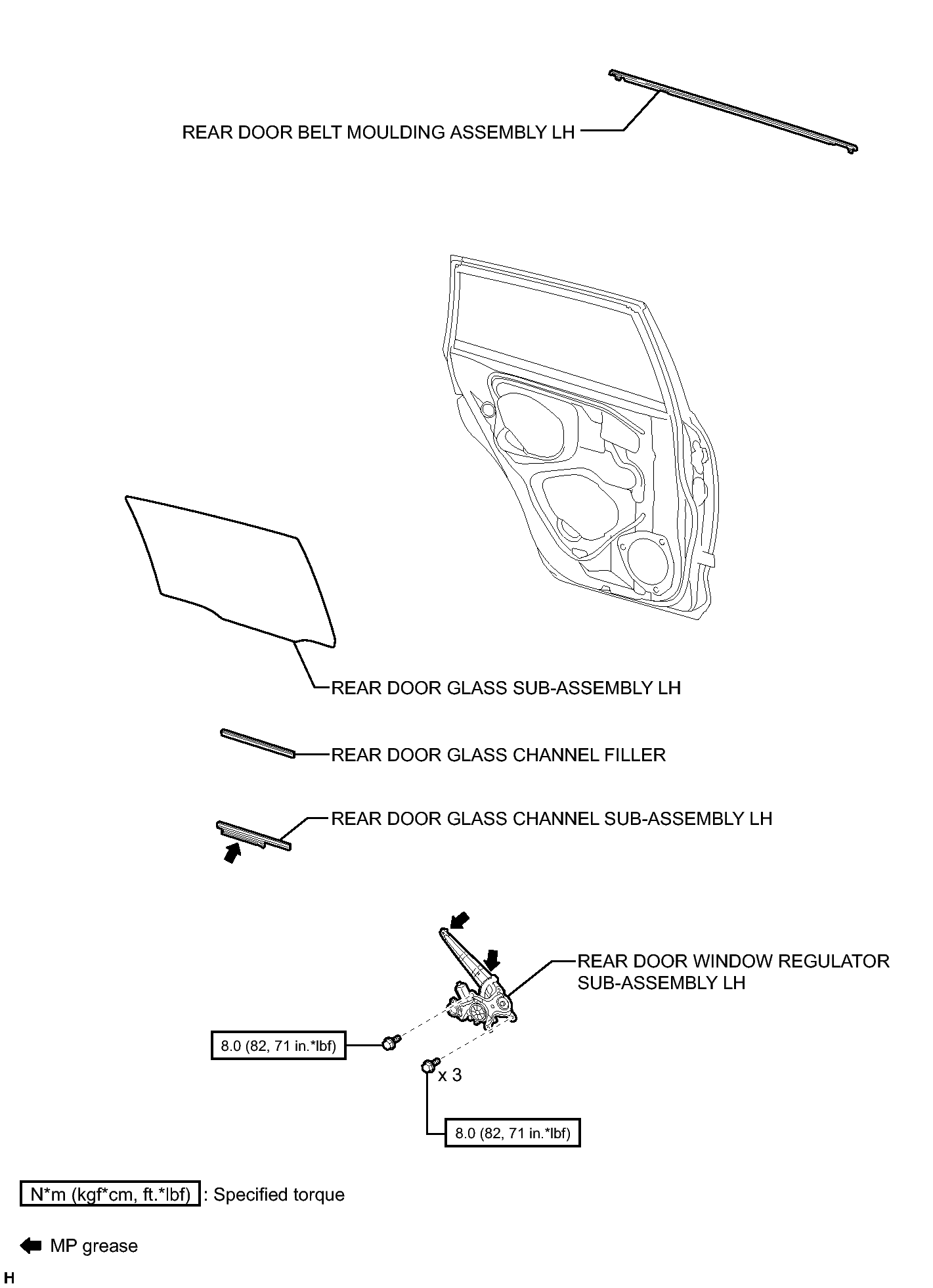

Fig 1: Rear Door Replacement Components With Torque Specifications (5 Of 5)
