Hood Lock Control Cable Assembly: Components: Illustration

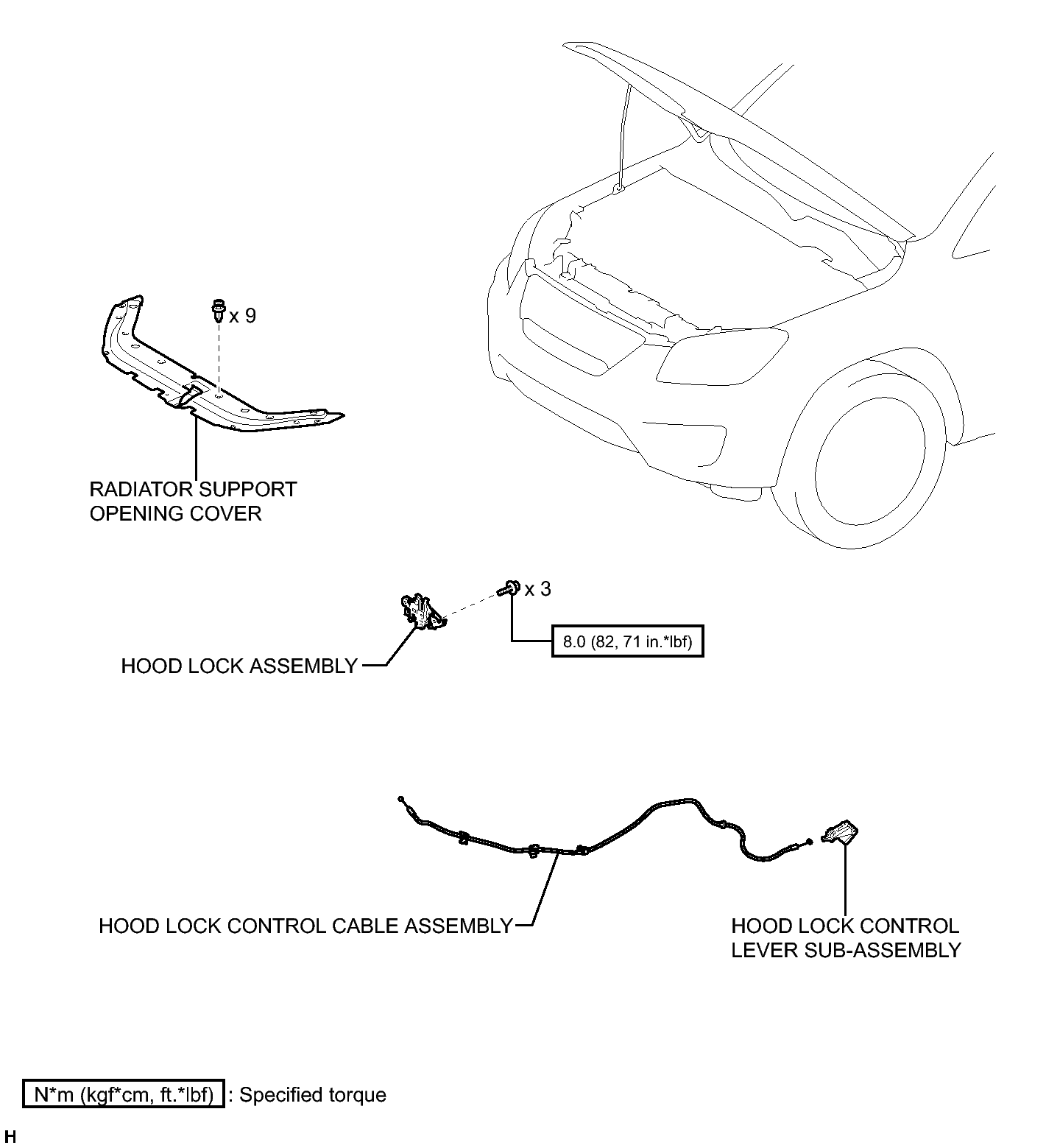

Fig 1: Hood Lock Control Cable Assembly Replacement Components With Torque Specifications

GTY373118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
