Front Door: Components: Illustration

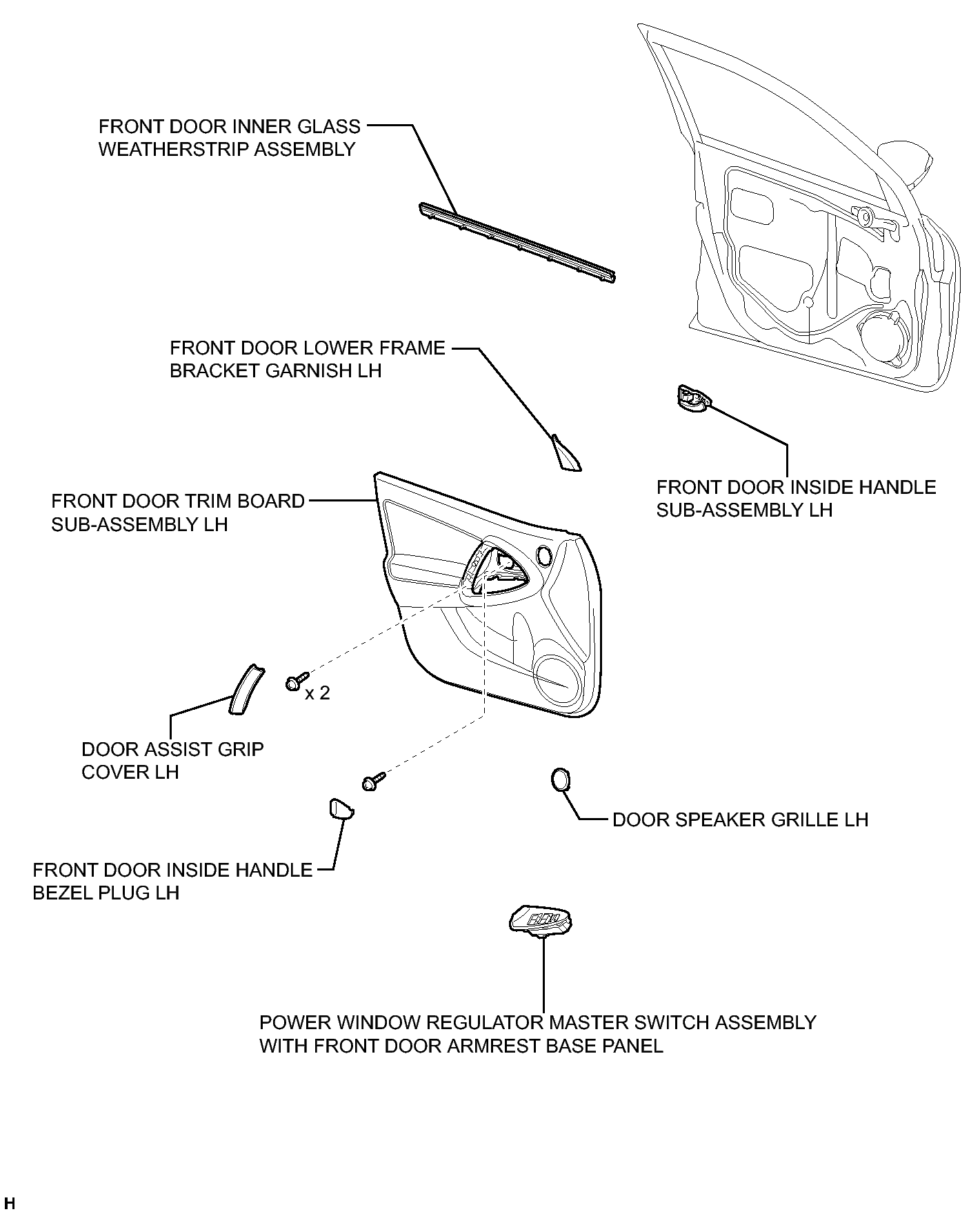

Fig 1: Front Door Replacement Components (1 Of 5)
GTY375680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

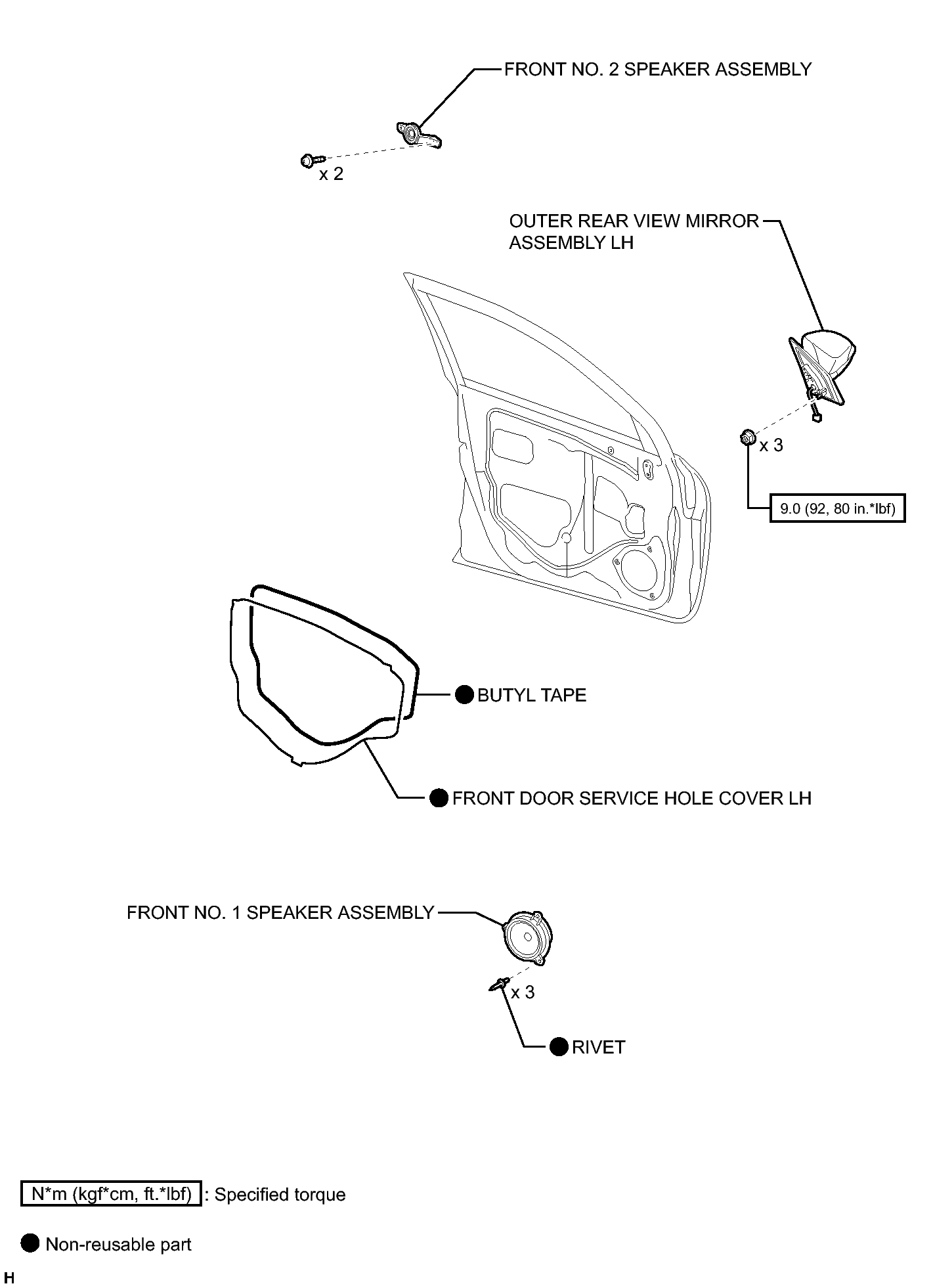

Fig 1: Front Door Replacement Components With Torque Specifications (2 Of 5)
GTY366844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

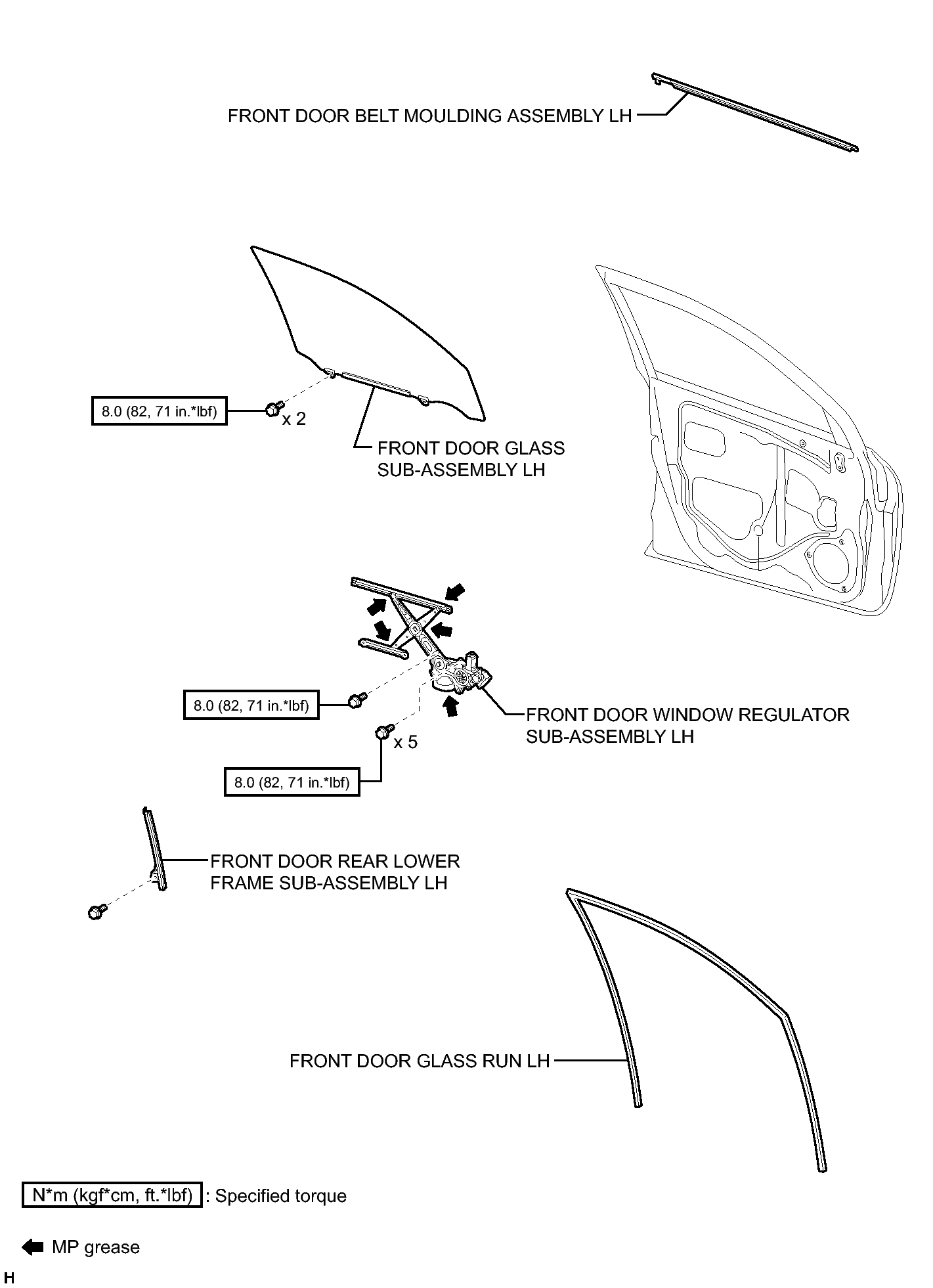

Fig 1: Front Door Replacement Components With Torque Specifications (3 Of 5)
GTY376635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

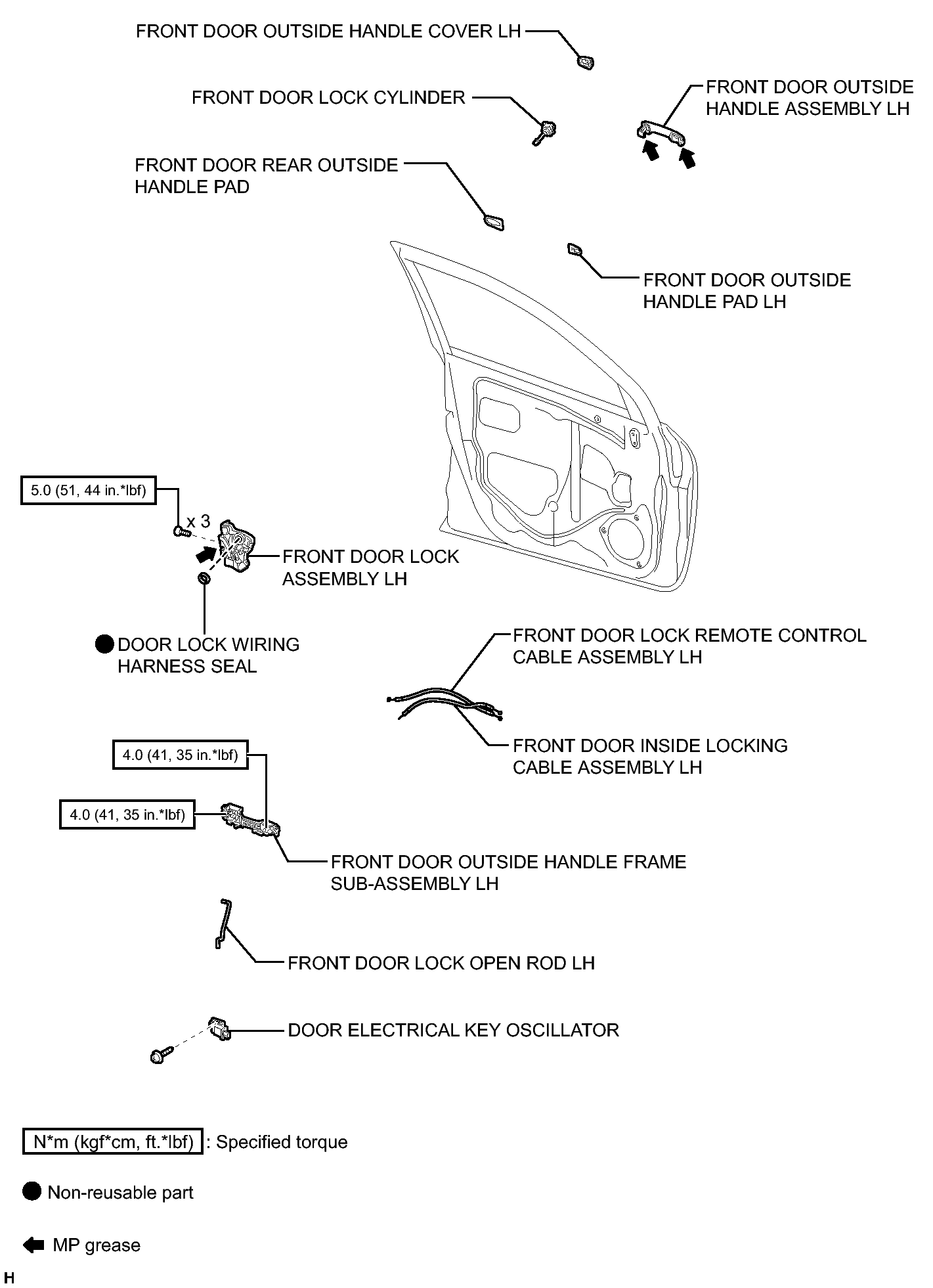

Fig 1: Front Door Replacement Components With Torque Specifications (4 Of 5)
GTY366239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

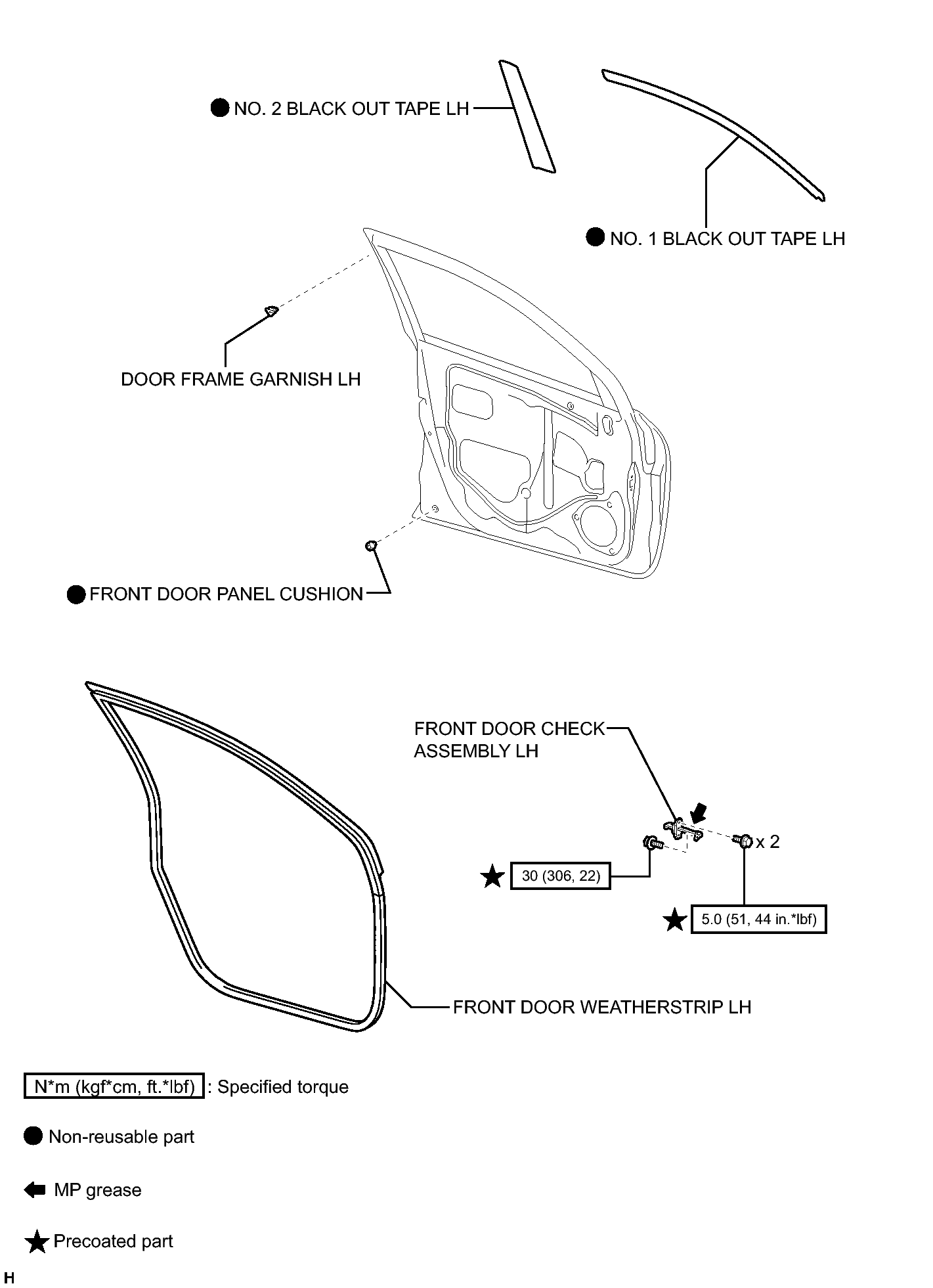

Fig 1: Front Door Replacement Components With Torque Specifications (5 Of 5)
GTY376773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
