Back Door: Components: Illustration

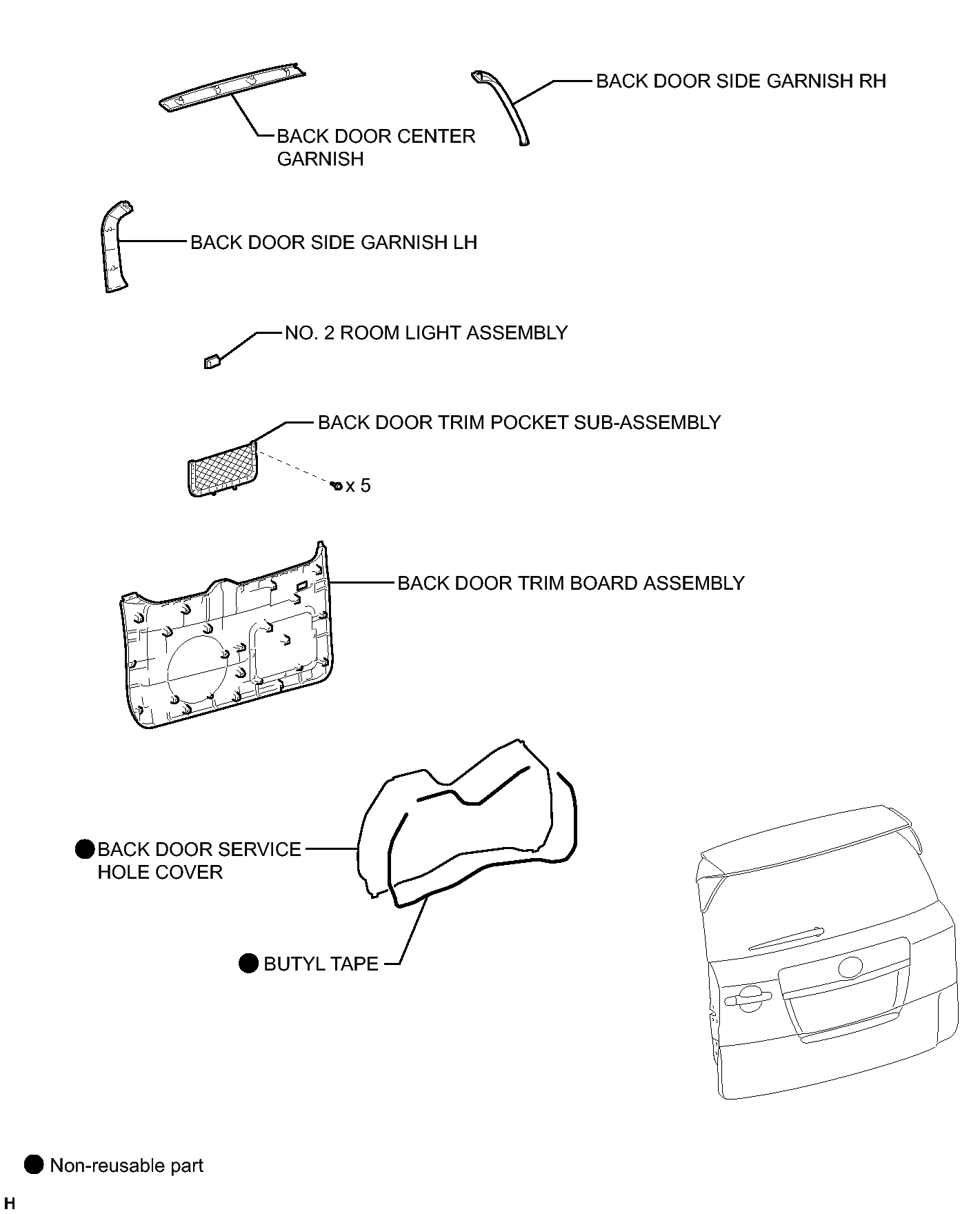

Fig 1: Back Door Replacement Components (1 Of 5)
GTY370575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

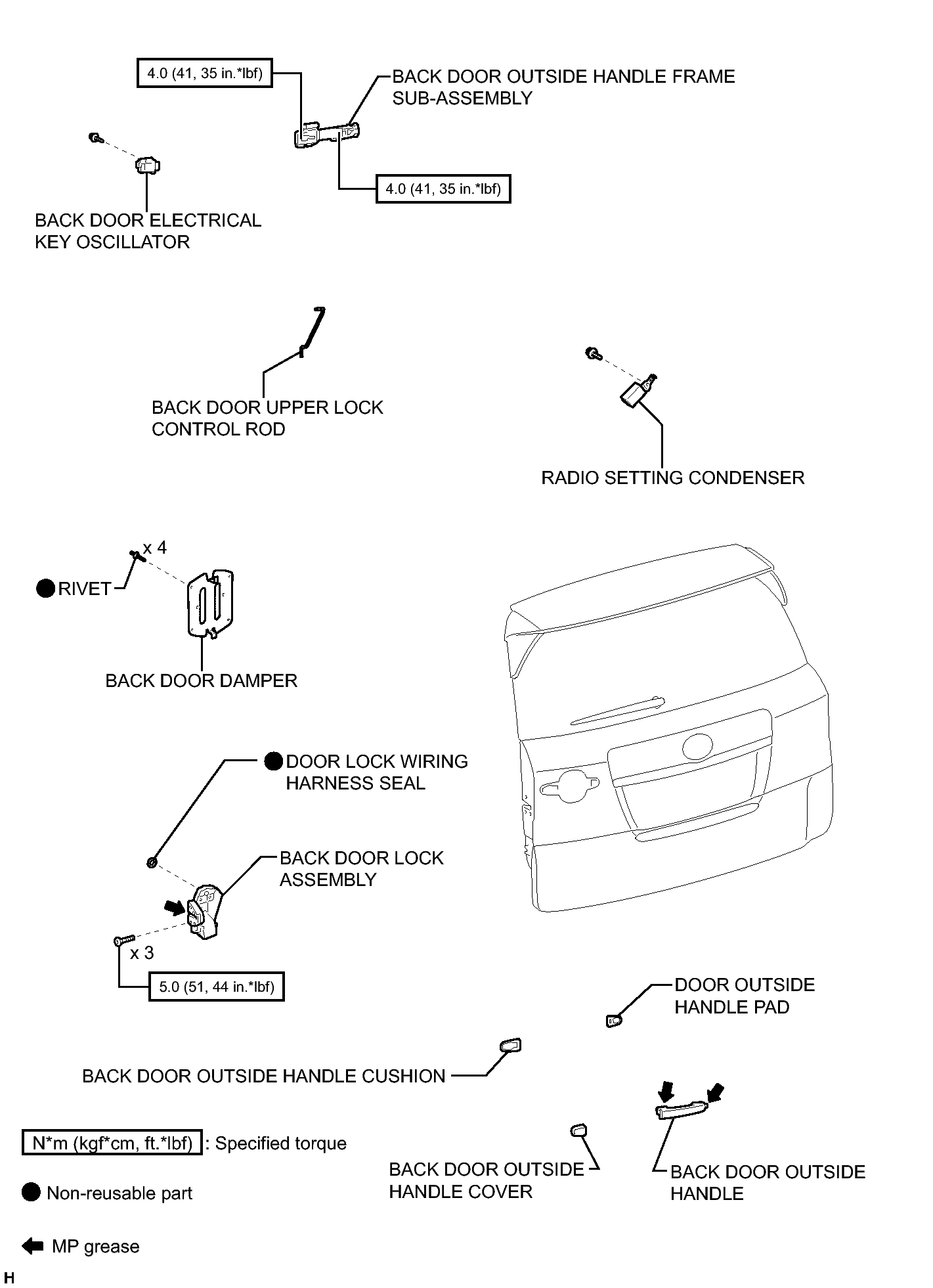

Fig 1: Back Door Replacement Components With Torque Specifications (2 Of 5)
GTY384080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

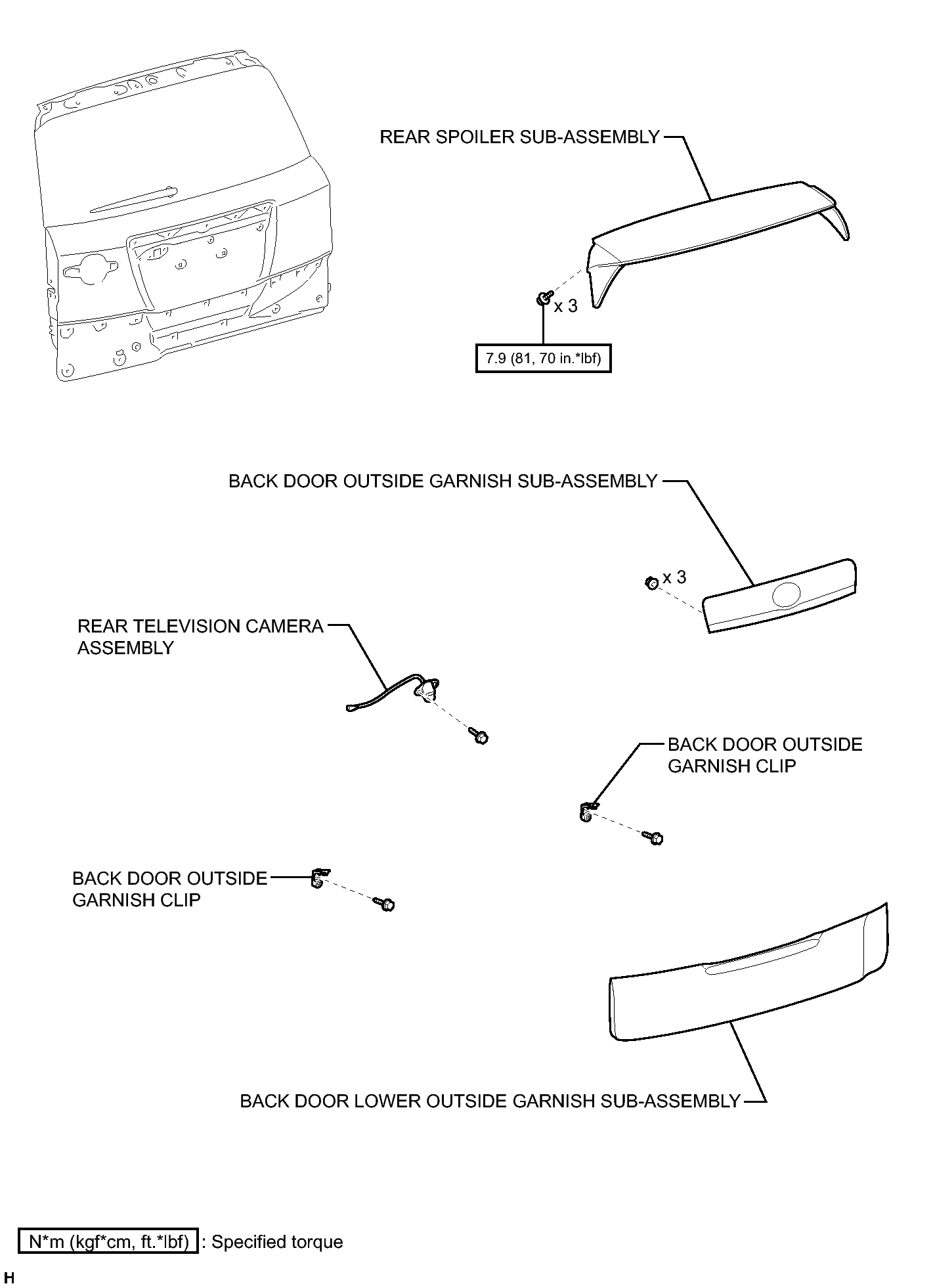

Fig 1: Back Door Replacement Components With Torque Specifications (3 Of 5)
GTY367884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

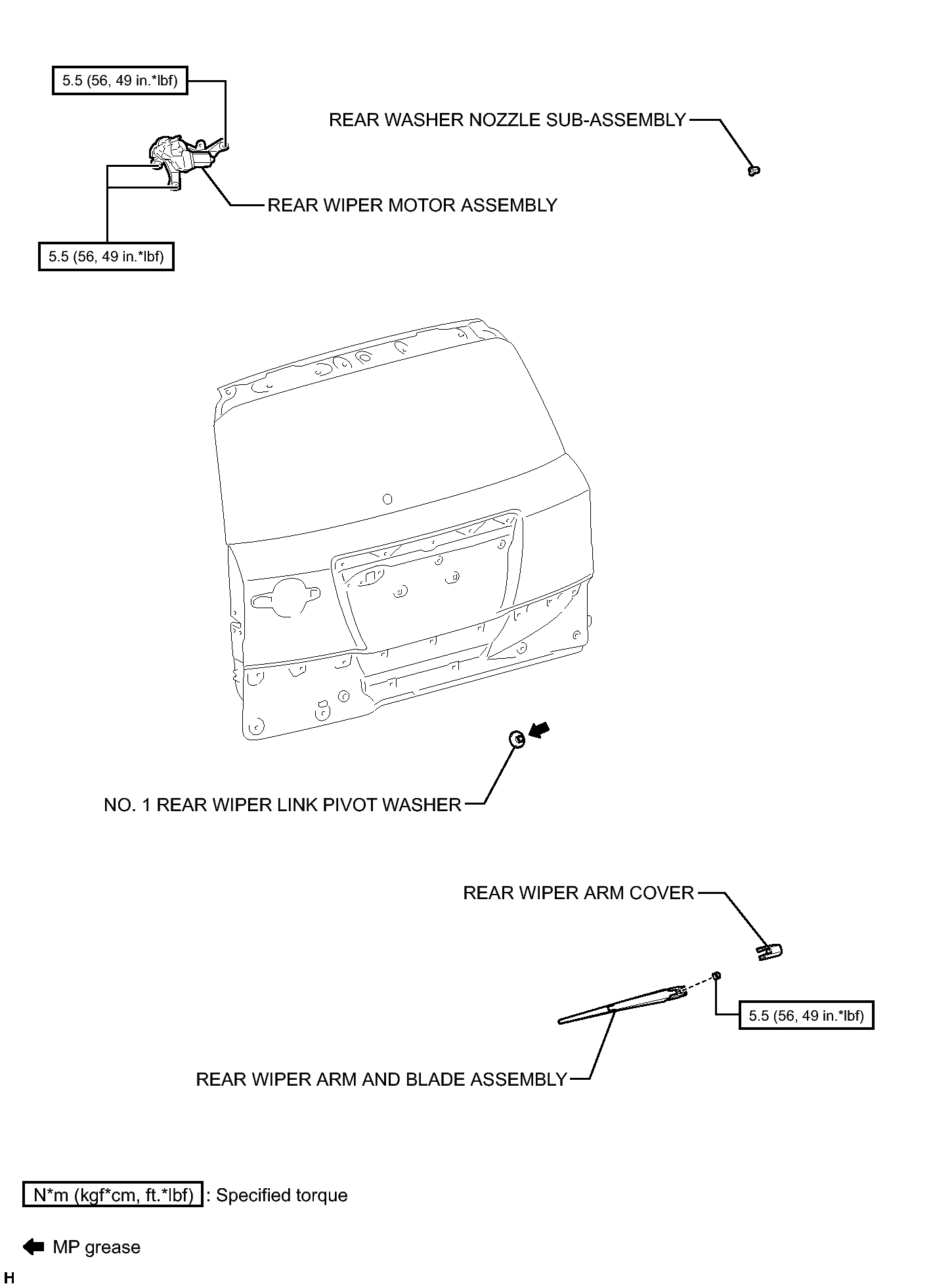

Fig 1: Back Door Replacement Components With Torque Specifications (4 Of 5)
GTY379034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

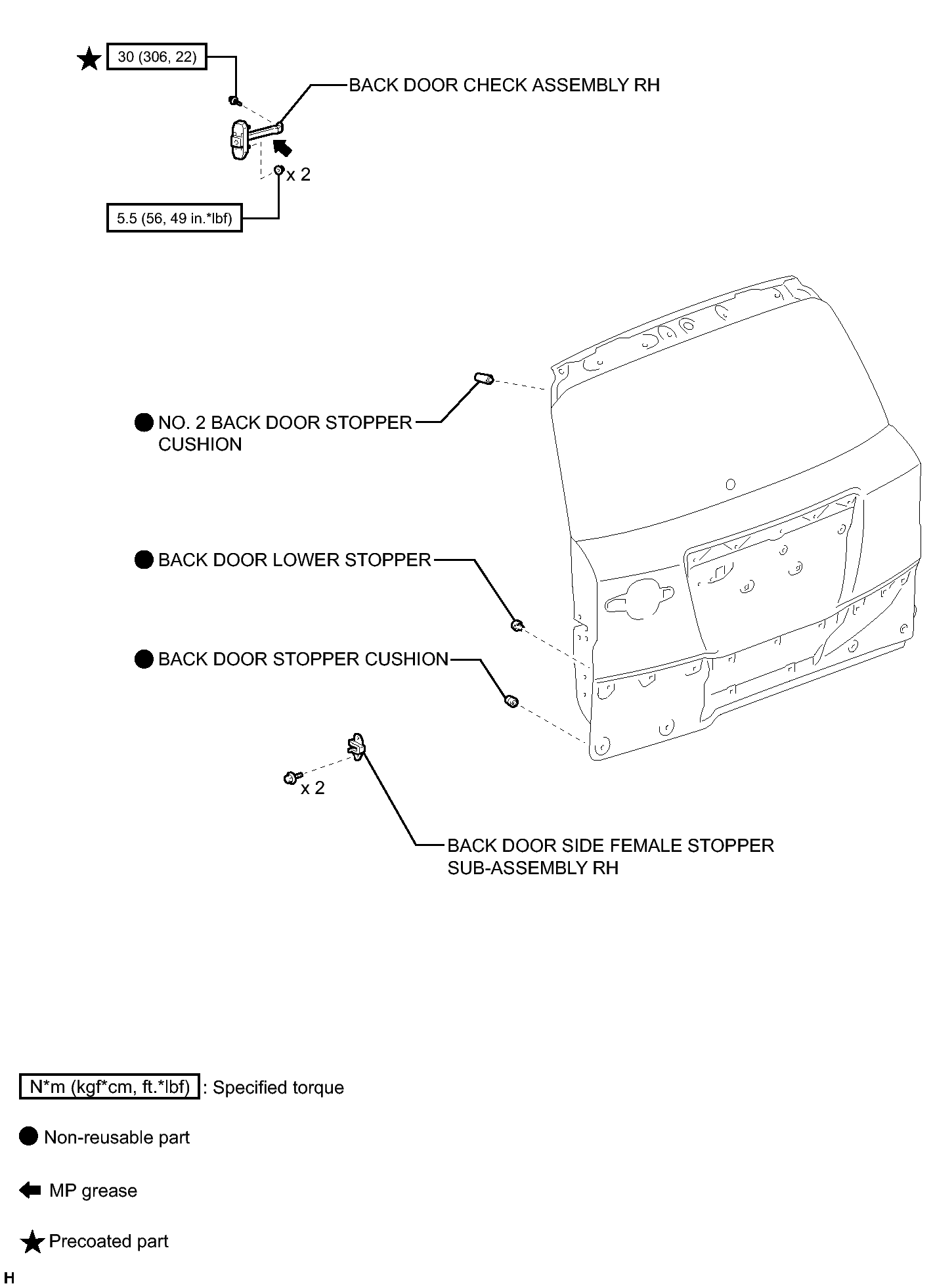

Fig 1: Back Door Replacement Components With Torque Specifications (5 Of 5)
GTY363663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
