Front Passenger Side Seat Heater does not Operate: Wiring Diagram

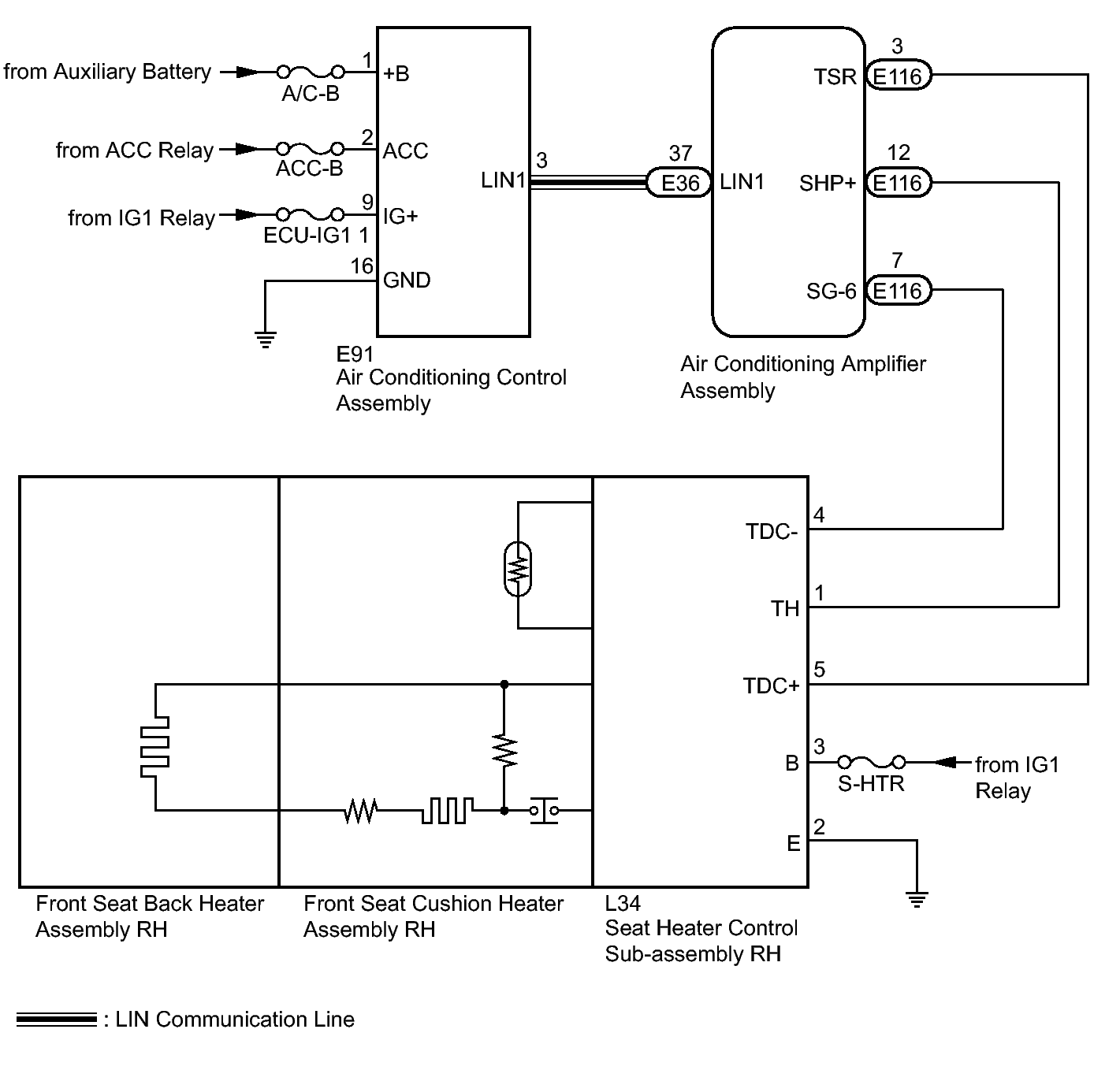

Fig 1: Front Passenger Side Seat Heater Circuit Diagram

GTY362318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
