Driver Side Seat Heater does not Operate: Wiring Diagram

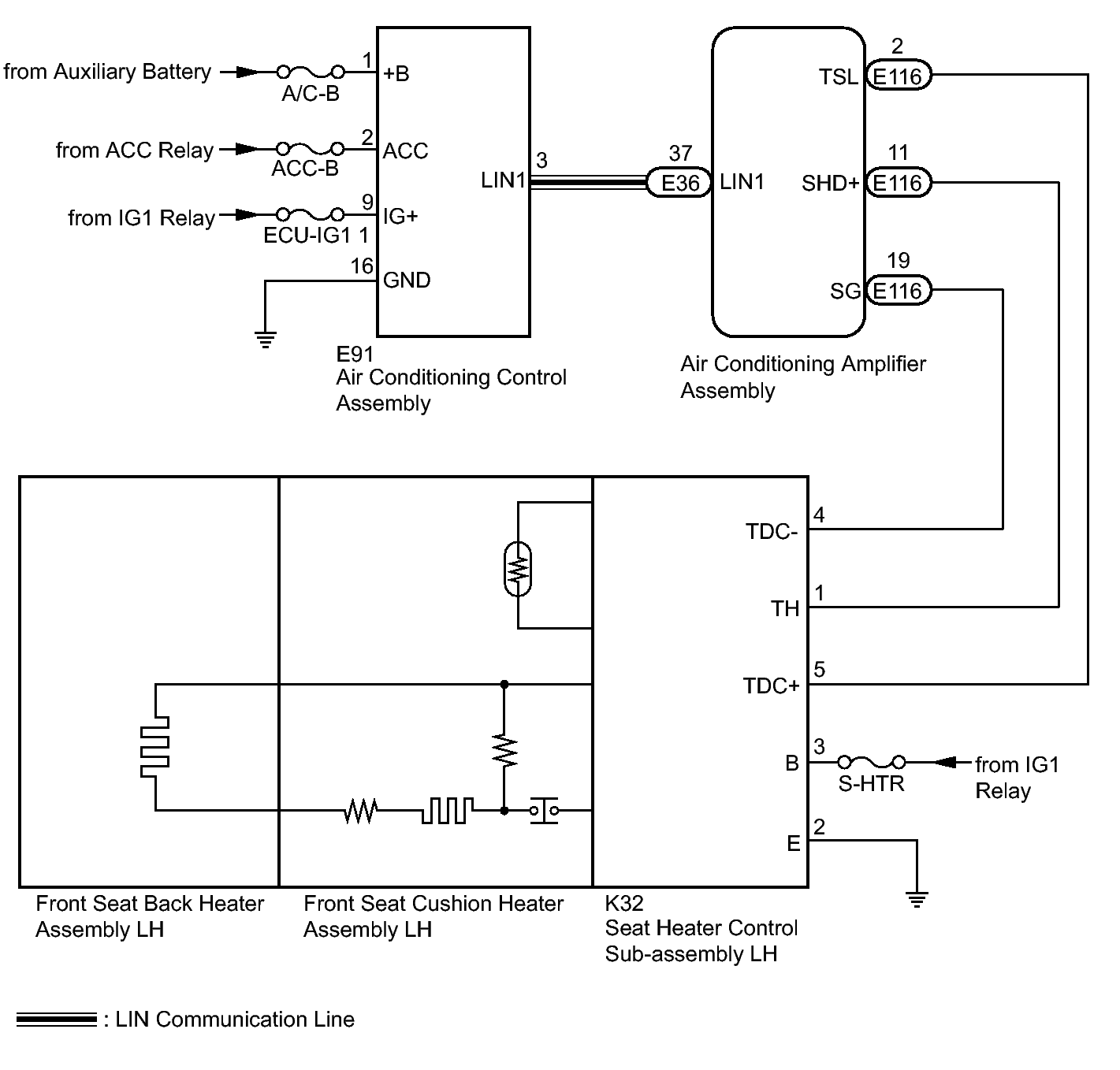

Fig 1: Driver Side Seat Heater Circuit Diagram

GTY362319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
