Parts Location: Illustration

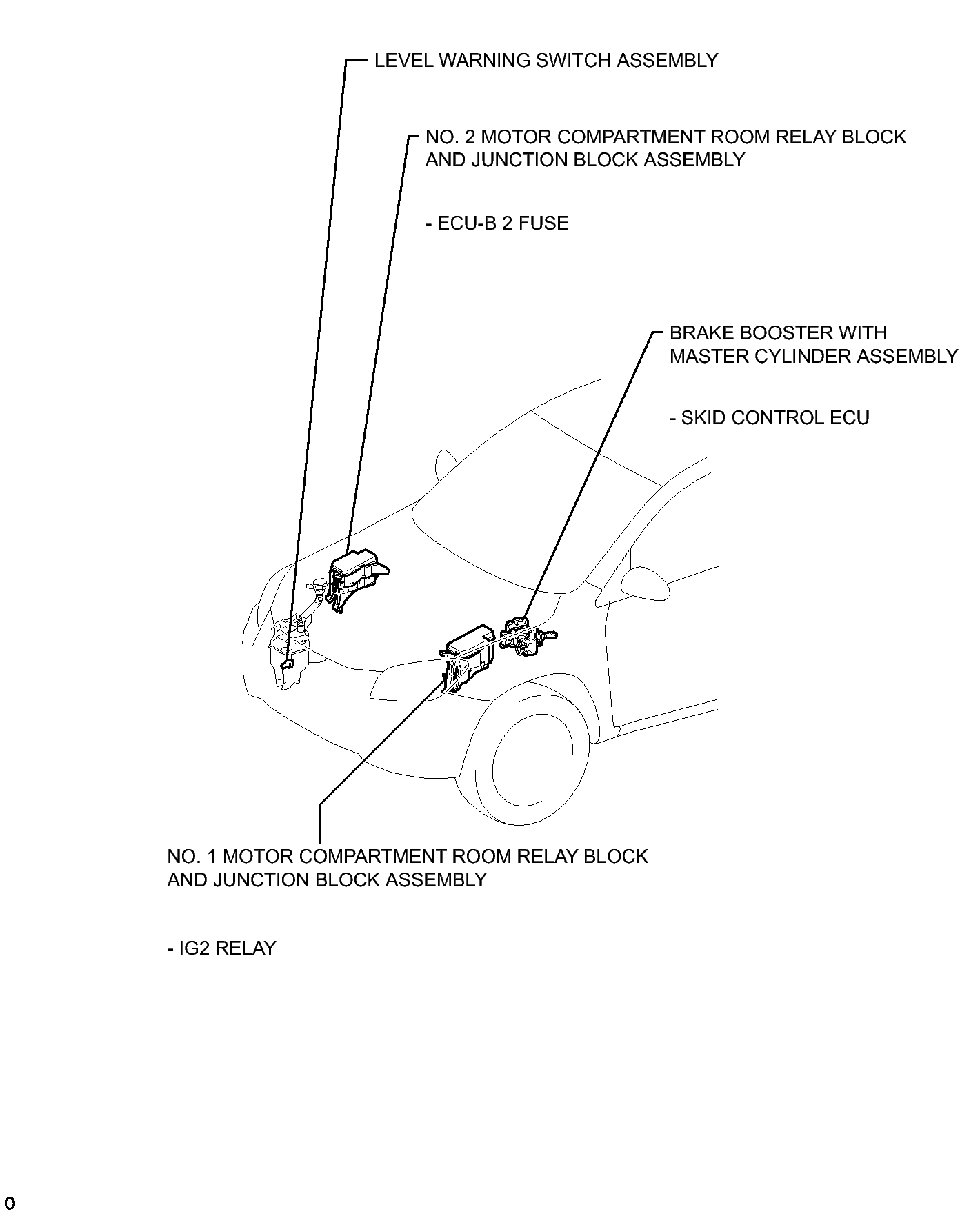

Fig 1: Identifying Meter/Gauge System Component Locations (1 Of 2)
GTY363409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

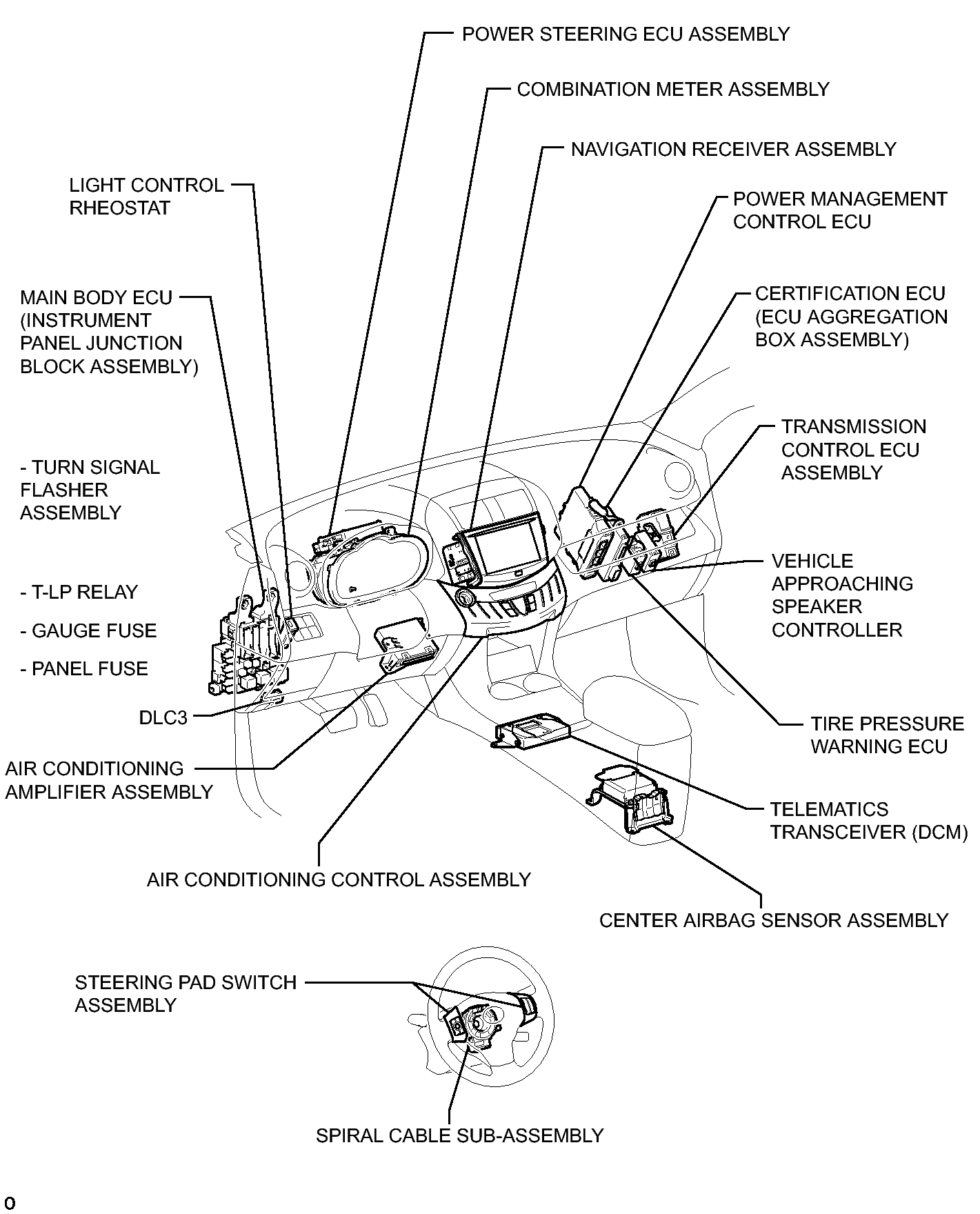

Fig 1: Identifying Meter/Gauge System Component Locations (2 Of 2)
GTY371155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
