Parts Location: Illustration

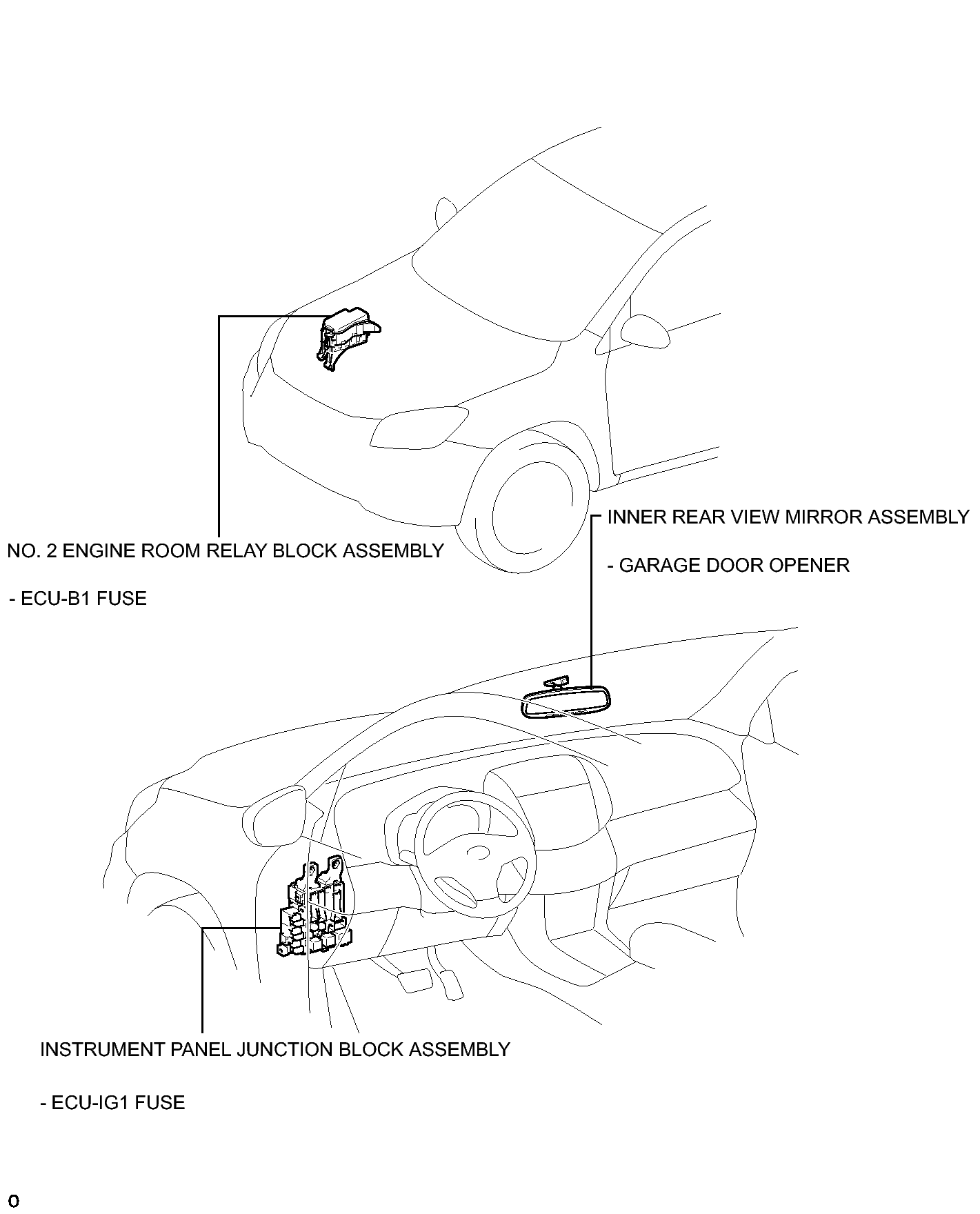

Fig 1: Identifying Garage Door Opener System Replacement Components
GTY375905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
