Hybrid Battery System
>>
DTC U029A-123: Lost Communication with Hybrid Battery Pack Sensor Module
>>
Wiring Diagram
DTC U029A-123: Lost Communication with Hybrid Battery Pack Sensor Module: Wiring Diagram

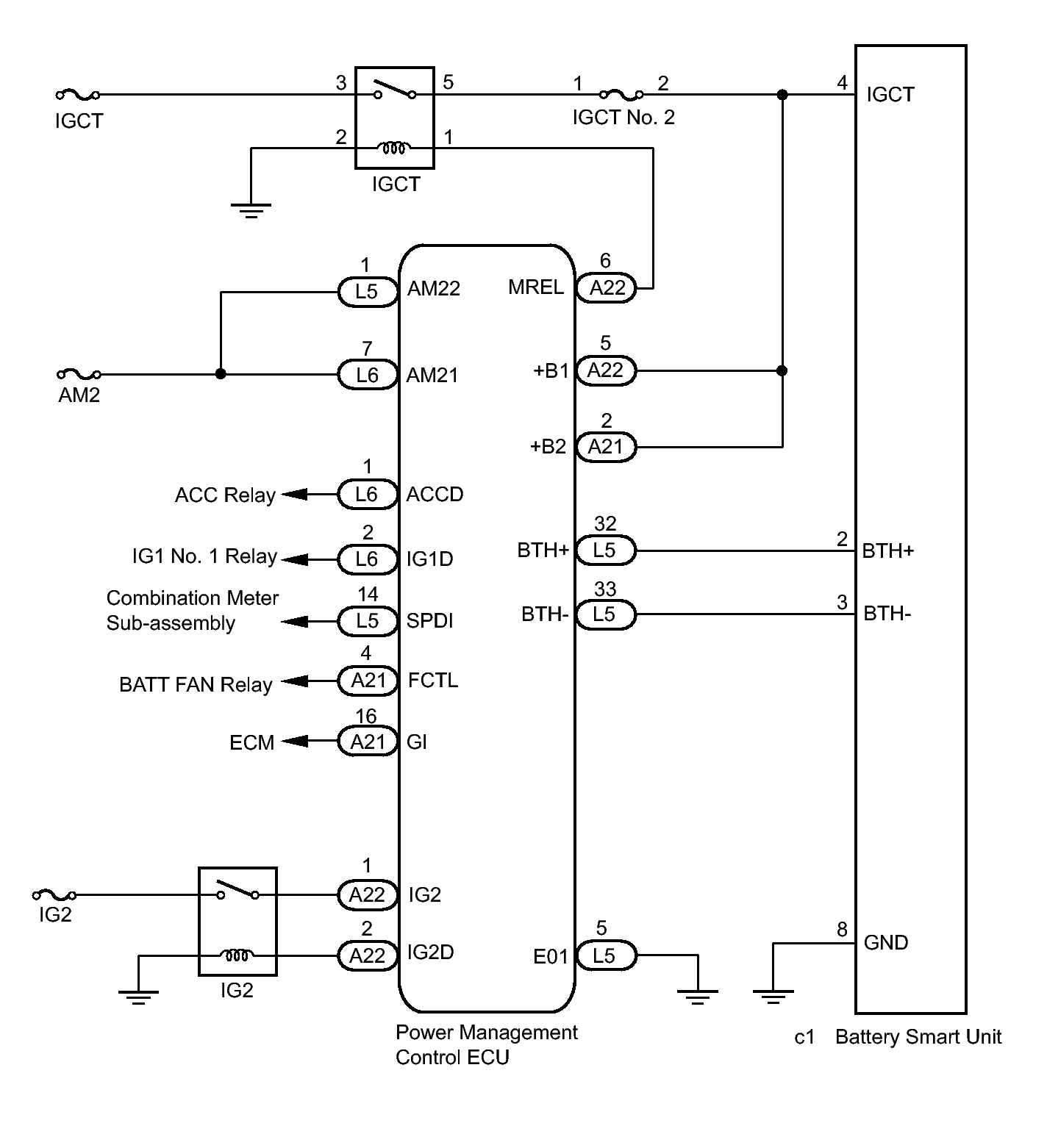

Fig 1: Power Management Control ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
