DTC P0ABF-123: Hybrid Battery Pack Current Sensor Circuit; DTC P0AC1-123: Hybrid Battery Pack Current Sensor Circuit Low; DTC P0AC2-123: Hybrid Battery Pack Current Sensor Circuit High: Wiring Diagram

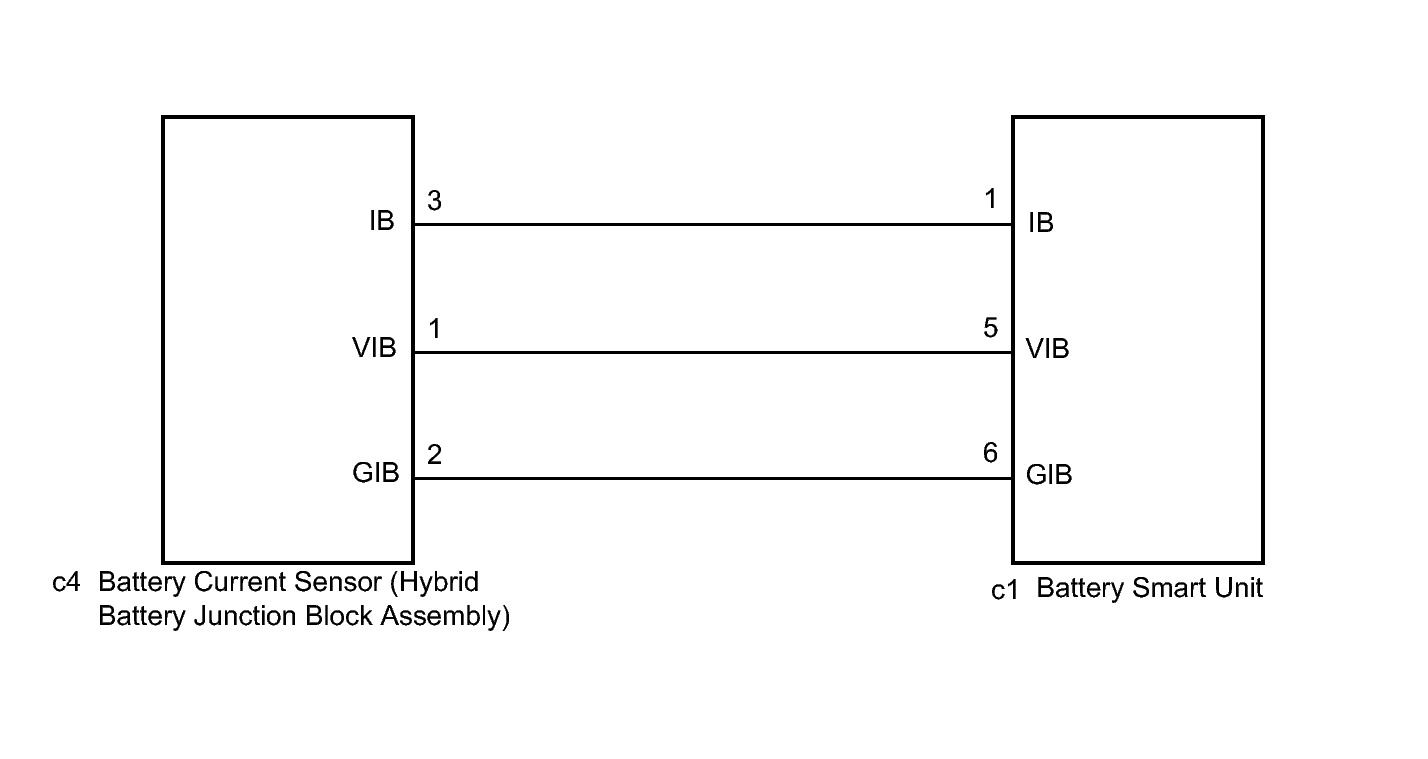

Fig 1: Battery Current Sensor Wiring Diagram
GTY335205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
