Hybrid Battery System
>>
DTC P0A85-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit High
>>
Wiring Diagram
DTC P0A85-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit High: Wiring Diagram

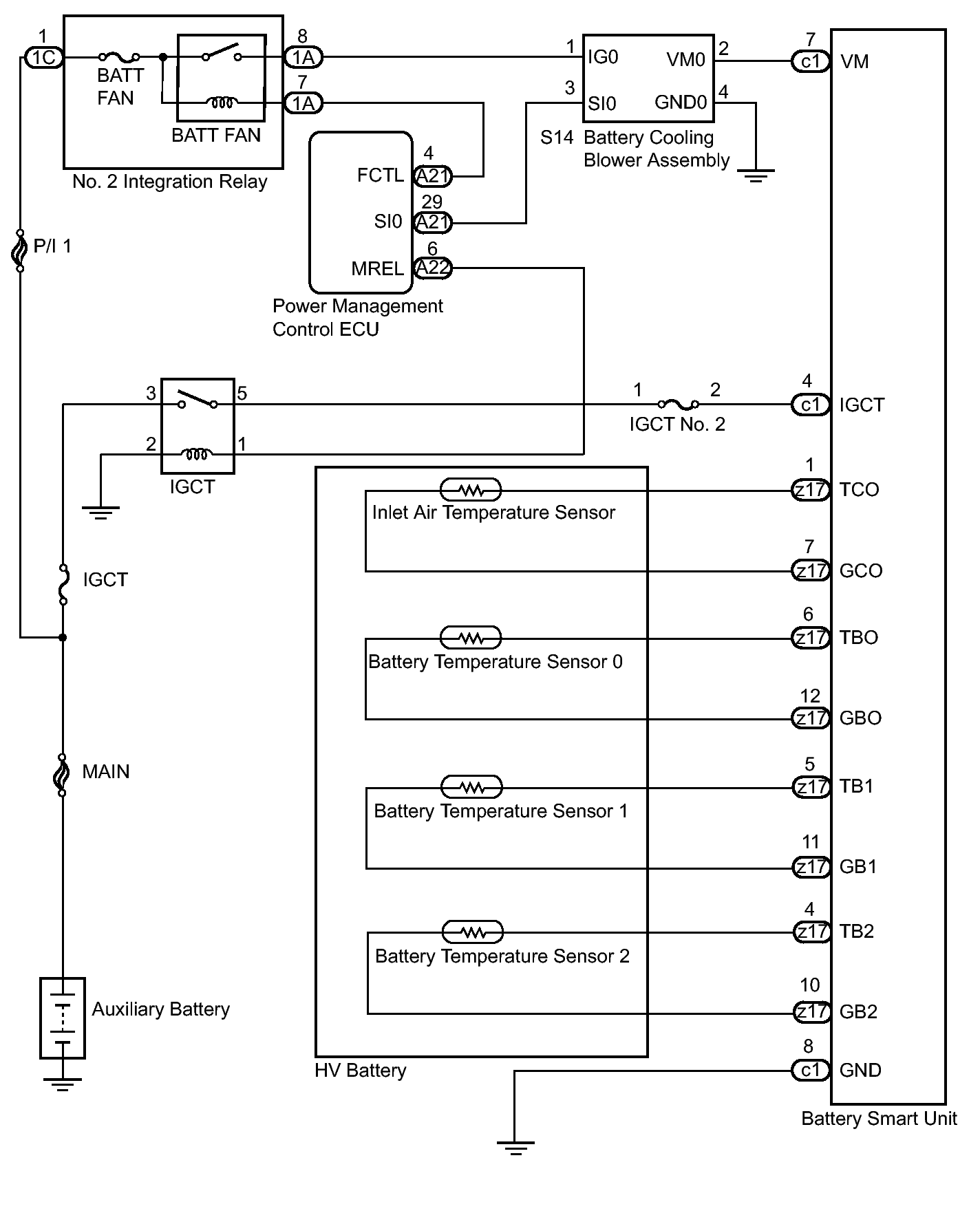

Fig 1: Hybrid Battery Pack Cooling Fan 1 Control Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
