Hybrid Battery System (Diagnostic Codes (P0A7F-123 - U029A-123))
>>
Hybrid Battery System
>>
DTC P0A84-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit Low
>>
Wiring Diagram

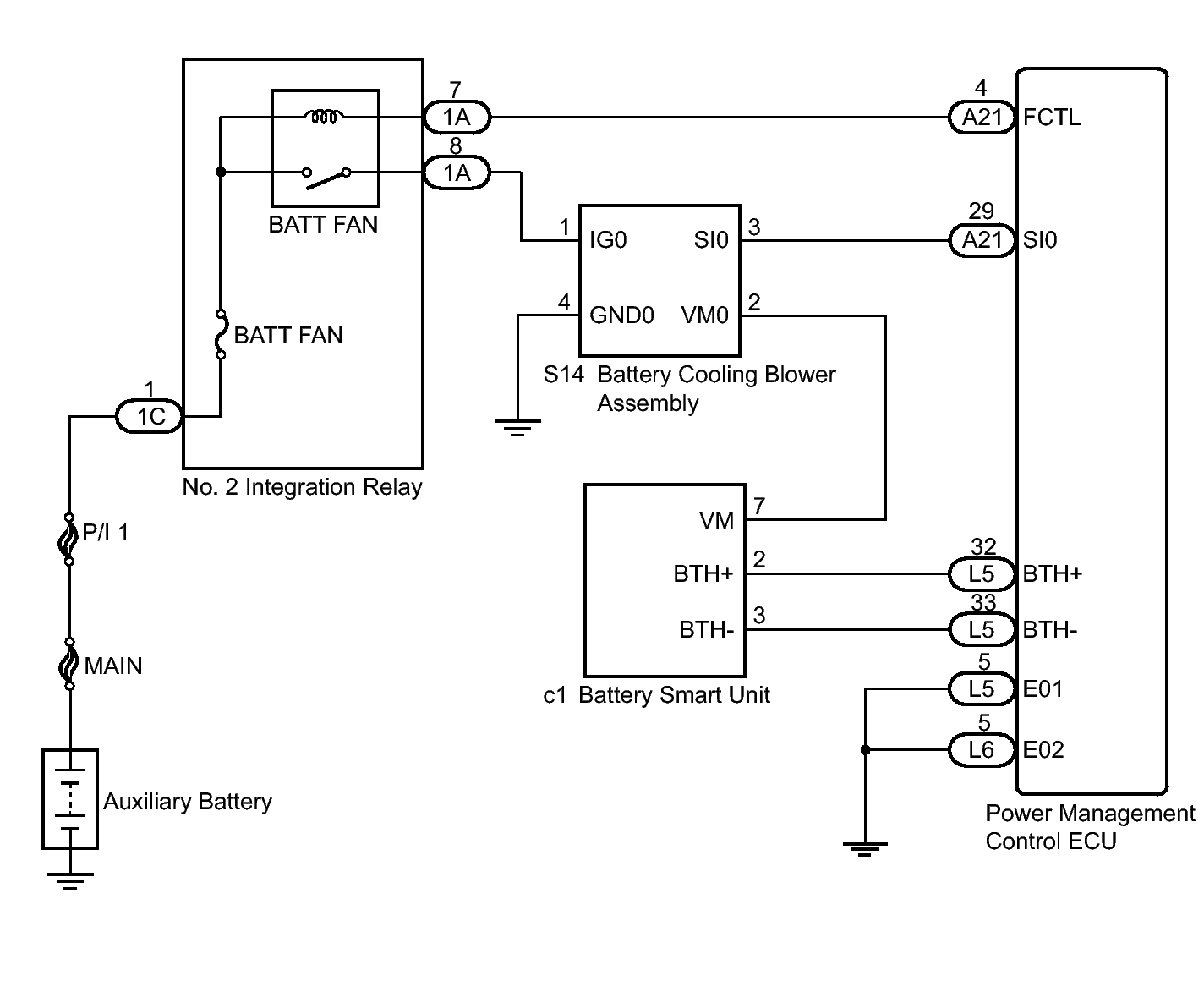

DTC P0A84-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit Low: Wiring Diagram
Fig 1: Battery Pack Cooling Fan 1 Control Wiring Diagram
