DTC P0A84-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit Low: Procedure

  1. CHECK FOR DTCS (HV) See step   1

    B → GO TO DTC CHART (HYBRID BATTERY SYSTEM)

    A: Go to next step

  2. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Enter the following menus: Powertrain / Hybrid Control / Active Test / Driving the Battery Cooling Fan.
      NOTE:

      If the Active Test cannot be performed, skip it and proceed to the next step to check fan operates and air is sucked. In accordance with fail-safe system operation, the power management control ECU sends a command to operate the battery cooling fan.

    4. Select air volume mode 6 in the "Driving the Battery Cooling Fan" Active Test to operate the battery cooling blower assembly.
    5. Check that the fan operates and air is sucked into the inlet duct.

      HINT:

      The cooling fan may not stop even when turning the cooling fan off in the "Driving the Battery Cooling Fan" Active Test. This is due to HV system control and not a malfunction.

      OK

      The fan operates.

    NG → See step   5

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (BATTERY COOLING BLOWER - BATTERY SMART UNIT)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair procedures, because this may cause a malfunction.

    2. Remove the No. 1 hybrid vehicle battery carrier bracket sub-assembly. Refer to REMOVAL - Step 25 .
    3. Disconnect connector S14 from the battery cooling blower assembly.
      Fig 1: Identifying Battery Cooling Blower Assembly & S14 Connector
      GTY343615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect connector C1 from the battery smart unit.
      Fig 2: Identifying Battery Smart Unit & C1 Connector
      GTY326667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance according to the value(s) in the table below.
      Fig 3: Measuring Resistance Of Battery Smart Unit With Connector End Views
      GTY327718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      S14-2 (VM0) - c1-7 (VM) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      S14-2 (VM0) or c1-7 (VM) - Body ground Power switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Battery Cooling Blower Assembly)
      *b Rear view of wire harness connector
      (to Battery Smart Unit)
    6. Connect the battery cooling blower assembly connector.
    7. Connect the battery smart unit connector.
    8. Install the No. 1 hybrid vehicle battery carrier bracket sub-assembly.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK BATTERY SMART UNIT (VOLTAGE) See step   5

    NG → See step   20

    OK → See step   18

  5. CHECK FUSE (BATT FAN)
    1. Remove the BATT FAN fuse from the engine room relay block and junction block assembly
    2. Measure the resistance of the BATT FAN fuse.

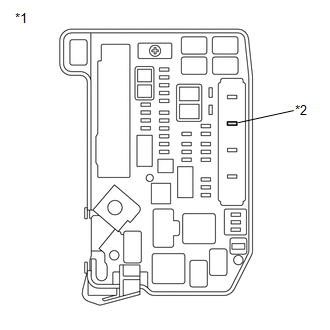

      Fig 4: Identifying Engine Room Relay Block & BATT FAN Fuse
      GTY337453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      BATT FAN fuse Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room Relay Block and Junction Block Assembly
      *2 BATT FAN Fuse

    NG → See step   14

    OK: Go to next step

  6. CHECK NO. 2 INTEGRATION RELAY (BATT FAN)
    1. Remove the No. 2 integration relay from the engine room relay block and junction block assembly. Refer to REMOVAL .
    2. Measure the resistance according to the value(s) in the table below.
      Fig 5: Identifying No. 2 Integration Relay (BATT FAN) 1C & 1A Connectors
      GTY223187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      1C-1 - 1A-8 Battery voltage is applied across terminals 1A-6 and 1A-7 Below 1 Ω
      No battery voltage is applied across terminals 1A-6 and 1A-7 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 No. 2 Integration Relay *2 BATT FAN Fuse
      *3 BATT FAN Relay - -
    3. Install the No. 2 integration relay.

    NG → See step   21

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (VOLTAGE)
    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair procedures, because this may cause a malfunction.

    2. Remove the rear No. 1 floor board. Refer to REMOVAL - Step 8 .
    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Connect the Techstream to the DLC3.
    5. Turn the power switch on (IG).
      NOTE:
      • After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair procedures, because this may cause a malfunction.
      • If the power switch is turned on (IG) with the service plug grip removed, DTC P0A0D-350 for the interlock switch system will be stored. If this DTC is output, clear the DTC using the Techstream. Refer to DTC CHECK / CLEAR .
    6. Enter the following menus: Powertrain / Hybrid Control / Active Test / Driving the Battery Cooling Fan.
      NOTE:

      If the Active Test cannot be performed, skip it and proceed to the next step to check voltage. In accordance with fail-safe system operation, the power management control ECU sends a command to operate the battery cooling fan.

    7. Enter the following menus: All Data / VMF Fan Motor Voltage 1.
    8. Select each air volume mode (1 to 6) in the "Driving the Battery Cooling Fan" Active Test to operate the battery cooling blower assembly.
    9. Measure the voltage according to the value(s) in the table below.

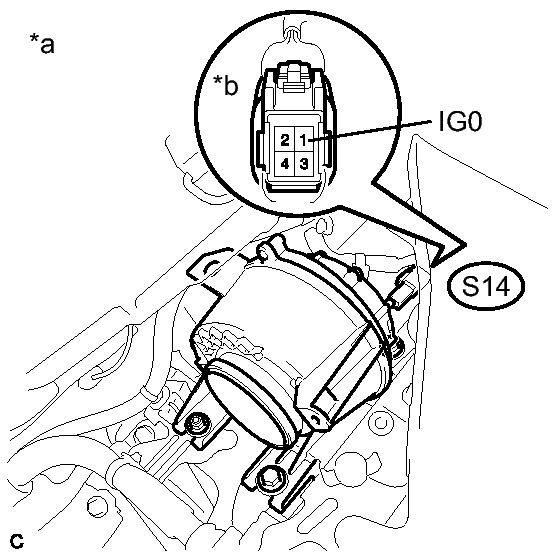

      Fig 6: Measuring Voltage Of Battery Cooling Fan Assembly
      GTY339193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      S14-1 (IG0) - Body ground Battery cooling blower is operating 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Battery Cooling Blower Assembly)
      *b Rear view of wire harness connector
      (to Battery Cooling Blower Assembly)
      NOTE:

      Turning the power switch on (IG) with the service grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.

      HINT:

      Measure the voltage on the wire side of the connector that is part of the battery cooling blower.

    10. Turn the power switch off.
    11. Disconnect the cable from the negative (-) auxiliary battery terminal.
    12. Install the rear No. 1 floor board.

    NG → See step   10

    OK: Go to next step

  8. CHECK BATTERY COOLING BLOWER ASSEMBLY
    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair procedures, because this may cause a malfunction.

    2. Remove the rear No. 1 floor board. Refer to REMOVAL - Step 8 .
    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Turn the power switch on (IG).
      NOTE:
      • After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair procedures, because this may cause a malfunction.
      • If the power switch is turned on (IG) with the service plug grip removed, DTC P0A0D-350 for the interlock switch system will be stored. If this DTC is output, clear the DTC using the Techstream. Refer to DTC CHECK / CLEAR .
    5. Using a service wire, connect terminals 3 (SI0) and 4 (GND0) of the battery cooling blower assembly connector.

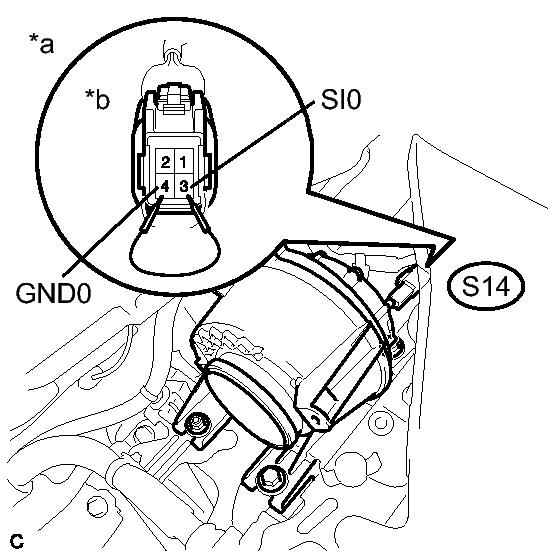

      Fig 7: Identifying S14 Connector & Jumper Wire
      GTY334017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Specified Condition

      Tester Connection Switch Condition Specified Condition
      S14-3 (SI0) - S14-4 (GND0) Power switch on (IG) Fan operates
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Battery Cooling Blower Assembly)
      *b Rear view of wire harness connector
      (to Battery Cooling Blower Assembly)
      NOTE:

      Turning the power switch on (IG) with the service grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.

      HINT:

      If DTCs are output after the check, clear the DTCs using the Techstream.

    6. Turn the power switch off.
    7. Disconnect the cable from the negative (-) auxiliary battery terminal.
    8. Install the rear No. 1 floor board.

    NG → See step   18

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (BATTERY COOLING BLOWER - POWER MANAGEMENT CONTROL ECU)
    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair procedures, because this may cause a malfunction.

    2. Remove the rear No. 1 floor board. Refer to REMOVAL - Step 8 .
    3. Disconnect connector S14 from the battery cooling blower assembly.
      Fig 8: Identifying Battery Cooling Blower Assembly & S14 Connector
      GTY343615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect connector A21 from the power management control ECU. Refer to REMOVAL .
    5. Measure the resistance according to the value(s) in the table below.
      Fig 9: Measuring Resistance Of Battery Cooling Blower Assembly With S14 Connector End View
      GTY325517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      S14-3 (SI0) - A21-29 (SI0) Power switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      S14-3 (SI0) or A21-29 (SI0) - Body ground Power switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Battery Cooling Blower Assembly)
      *b Rear view of wire harness connector
      (to Power Management Control ECU)
      NOTE:

      When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

    6. Connect the cable to the negative (-) auxiliary battery terminal.
    7. Turn the power switch on (IG).
    8. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      S14-3 (SI0) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the battery cooling blower assembly connector and power management control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    9. Turn the power switch off.
    10. Disconnect the cable from the negative (-) auxiliary battery terminal.
    11. Connect the battery cooling blower assembly connector.
    12. Install the rear No. 1 floor board.
    13. Connect the power management control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   19

  10. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY - POWER MANAGEMENT CONTROL ECU)
    1. Disconnect connector A21 from the power management control ECU. Refer to REMOVAL .
    2. Remove the No. 2 integration relay. Refer to REMOVAL .
    3. Measure the resistance according to the value(s) in the table below.
      Fig 10: Checking Harness And Connector (No. 2 Integration Relay - Power Management Control ECU)
      GTY333843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1A-7 - A21-4 (FCTL) Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to No. 2 Integration Relay)
      *b Rear view of wire harness connector
      (to Power Management Control ECU)
      NOTE:

      When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

    4. Connect the cable to the negative (-) auxiliary battery terminal.
    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A21-4 (FCTL) - Body ground Power switch off Below 1 V
      Power switch on (IG) Below 1 V
      NOTE:

      If the power switch is turned on (IG) with the connector disconnected, DTCs will be stored. If DTCs are output, clear them using the Techstream. Refer to DTC CHECK / CLEAR .

    6. Disconnect the cable from the negative (-) auxiliary battery terminal.
    7. Connect the power management control ECU connector.
    8. Install the No. 2 integration relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND)
    1. Disconnect connector L5 from the power management control ECU. Refer to REMOVAL .
    2. Measure the resistance according to the value(s) in the table below.
      Fig 11: Checking Harness And Connector (Power Management Control ECU - Body Ground)
      GTY334467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      L5-5 (E01) - Body ground Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
      NOTE:

      When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

    3. Connect the power management control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BODY GROUND)
    1. Disconnect connector L6 from the power management control ECU. Refer to REMOVAL .
    2. Measure the resistance according to the value(s) in the table below.
      Fig 12: Checking Harness And Connector (Power Management Control ECU - Body Ground)
      GTY330412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      L6-5 (E02) - Body ground Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Power Management Control ECU)
      NOTE:

      When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

    3. Connect the power management control ECU connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY - BATTERY COOLING BLOWER ASSEMBLY)
    1. Remove the No. 2 integration relay. Refer to REMOVAL .
    2. Remove the rear No. 1 floor board. Refer to REMOVAL - Step 8 .
    3. Disconnect connector S14 from the battery cooling blower assembly.
      Fig 13: Identifying Battery Cooling Blower Assembly & S14 Connector
      GTY343615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Measure the resistance according to the value(s) in the table below.
      Fig 14: Checking Harness And Connector (No. 2 Integration Relay - Battery Cooling Blower Assembly)
      GTY327887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1A-8 - S14-1 (IG0) Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Battery Cooling Blower Assembly)
      *b Front view of wire harness connector
      (to No. 2 Integration Relay)
    5. Install the No. 2 integration relay.
    6. Connect the battery cooling blower assembly connector.
    7. Install the rear No. 1 floor board.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   19

  14. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY - BATTERY COOLING BLOWER ASSEMBLY)
    1. Remove the No. 2 integration relay. Refer to REMOVAL - Step 2 .
    2. Remove the rear No. 1 floor board. Refer to REMOVAL - Step 8 .
    3. Disconnect connector S14 from the battery cooling blower assembly.
      Fig 15: Identifying Battery Cooling Blower Assembly & S14 Connector
      GTY343615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Measure the resistance according to the value(s) in the table below.
      Fig 16: Checking Harness And Connector (No. 2 Integration Relay - Battery Cooling Blower Assembly)
      GTY327887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      S14-1 (IG0) - Terminals other than 1A-8 and body ground Power switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Battery Cooling Blower Assembly)
      *b Front view of wire harness connector
      (to No. 2 Integration Relay)
    5. Install the No. 2 integration relay.
    6. Connect the battery cooling blower assembly connector.
    7. Install the rear No. 1 floor board.

    NG → See step   16

    OK: Go to next step

  15. CHECK BATTERY COOLING BLOWER ASSEMBLY
    1. Remove the rear No. 1 floor board. Refer to REMOVAL - Step 8 .
    2. Disconnect connector S14 from the battery cooling blower assembly.
      Fig 17: Identifying Battery Cooling Blower Assembly & S14 Connector
      GTY343615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.
      Fig 18: Checking Battery Cooling Blower Assembly
      GTY328354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      S14-1 (IG0) - S14-4 (GND0) and body ground Power switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Battery Cooling Blower Assembly)
    4. Connect the battery cooling blower assembly connector.
    5. Install the rear No. 1 floor board.

    NG → See step   17

    OK → REPLACE FUSE (BATT FAN)

  16. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → REPLACE FUSE (BATT FAN)

  17. REPLACE BATTERY COOLING BLOWER ASSEMBLY

    Refer to COMPONENTS

    NEXT → REPLACE FUSE (BATT FAN)

  18. REPLACE BATTERY COOLING BLOWER ASSEMBLY. Refer to  COMPONENTS
  19. REPLACE POWER MANAGEMENT CONTROL ECU. Refer to  COMPONENTS
  20. REPLACE BATTERY SMART UNIT. Refer to  COMPONENTS
  21. REPLACE NO. 2 INTEGRATION RELAY. Refer to  COMPONENTS
scientia non olet · About LEMON Manuals
