Vehicle Proximity Notification System Wiring Diagram

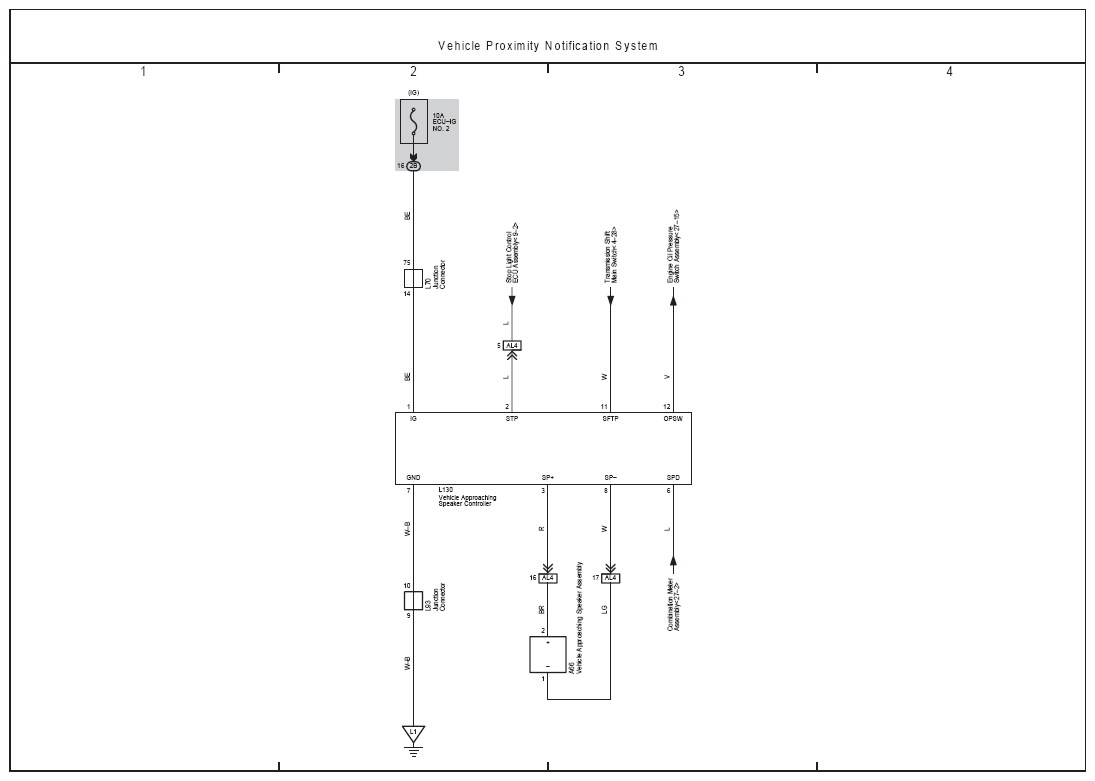

Fig 1: Vehicle Proximity Notification System Electrical Wiring Diagram

G09110403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
