Turn Signal And Hazard Warning Light Wiring Diagram

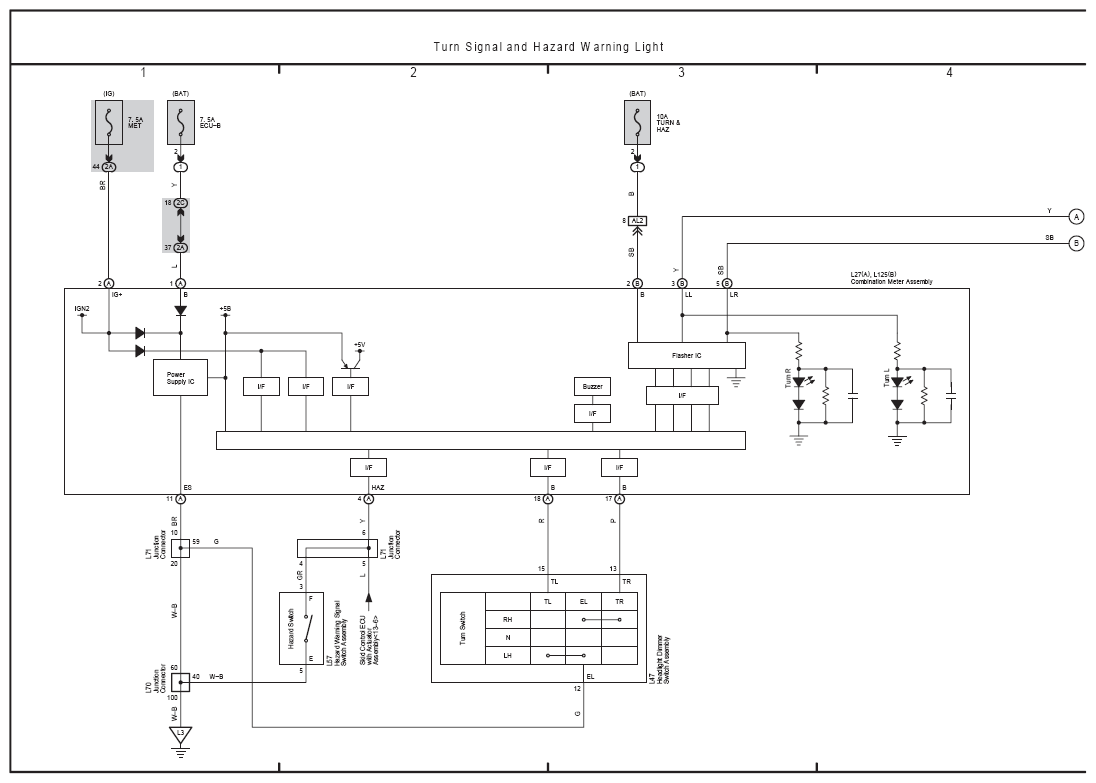

Fig 1: Turn Signal And Hazard Warning Light Electrical Wiring Diagram (1 Of 2)
G09110360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

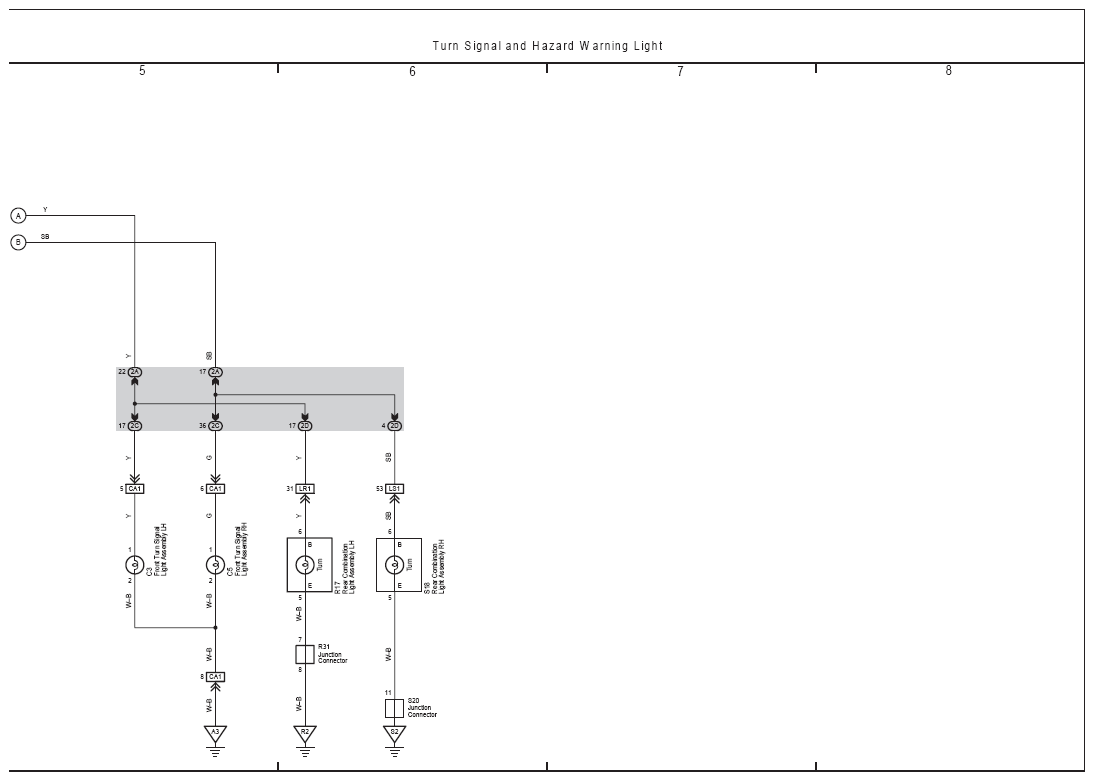

Fig 2: Turn Signal And Hazard Warning Light Electrical Wiring Diagram (2 Of 2)
G09110361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
