OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Roof Sunshade System Wiring Diagram
Roof Sunshade System Wiring Diagram

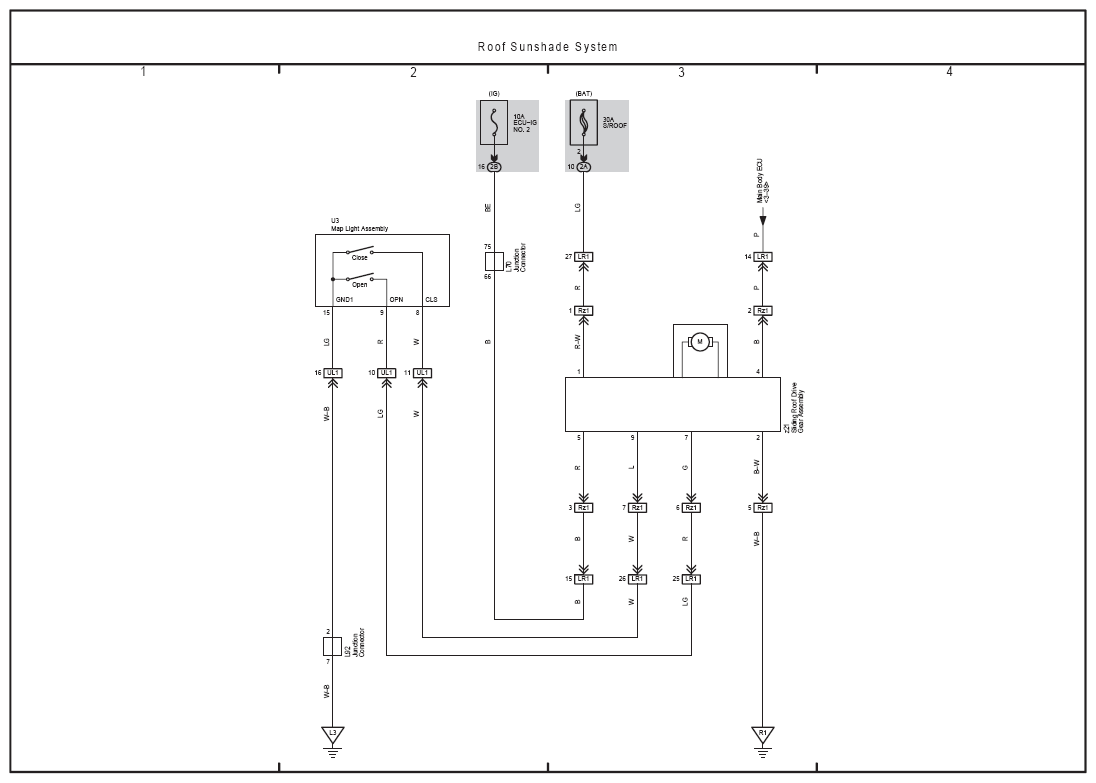

Fig 1: Roof Sunshade System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
