Overall Electrical Wiring Diagram
>>
Rear Window Defogger And Mirror Heater Wiring Diagrams
Rear Window Defogger And Mirror Heater Wiring Diagrams

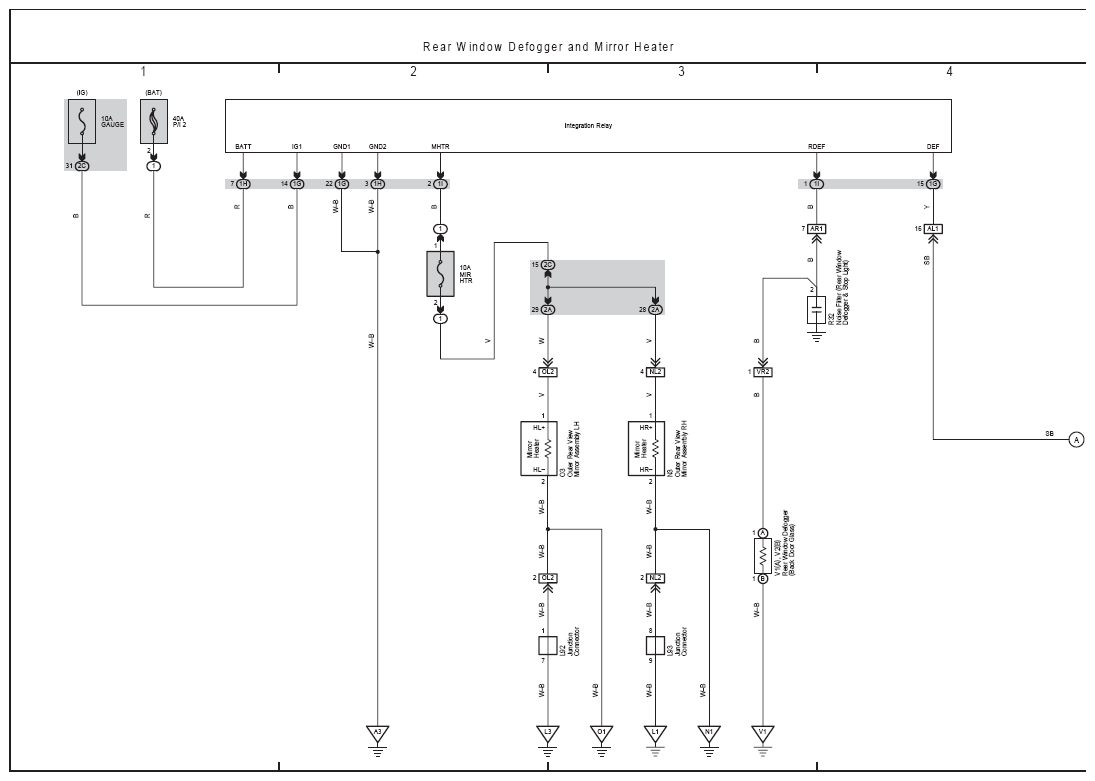

Fig 1: Rear Window Defogger And Mirror Heater Electrical Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

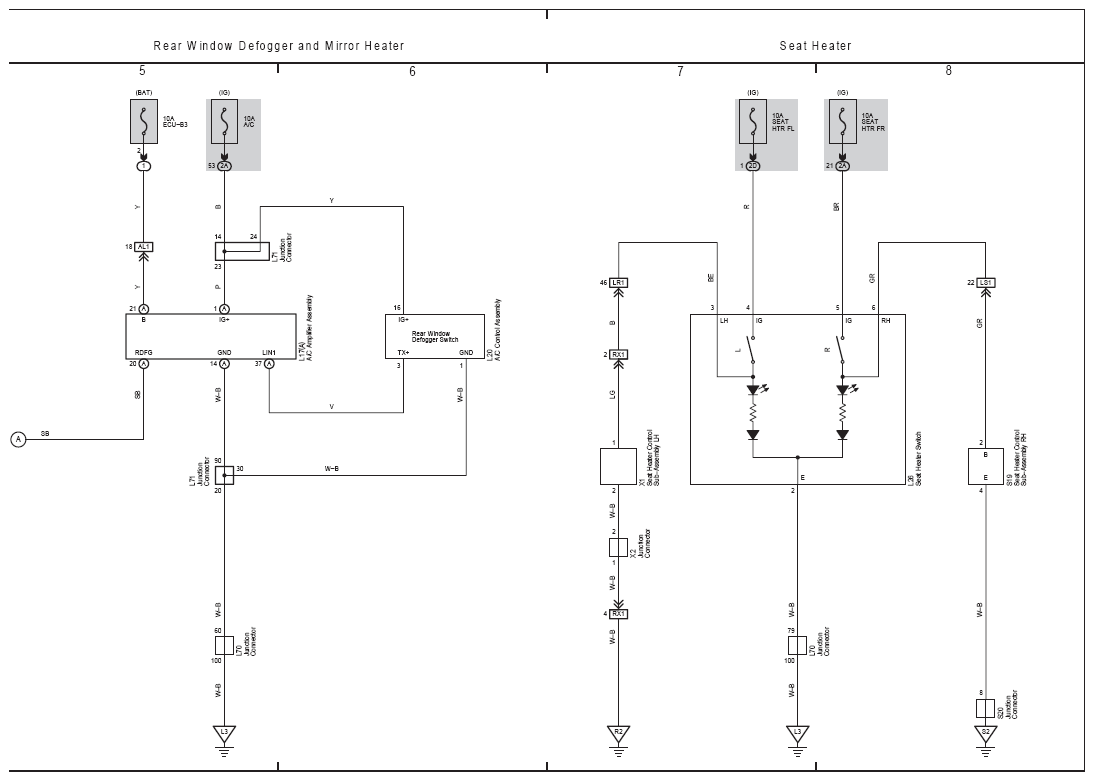

Fig 2: Rear Window Defogger And Mirror Heater Electrical Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
